Encoder Switch Check (Driver Side)

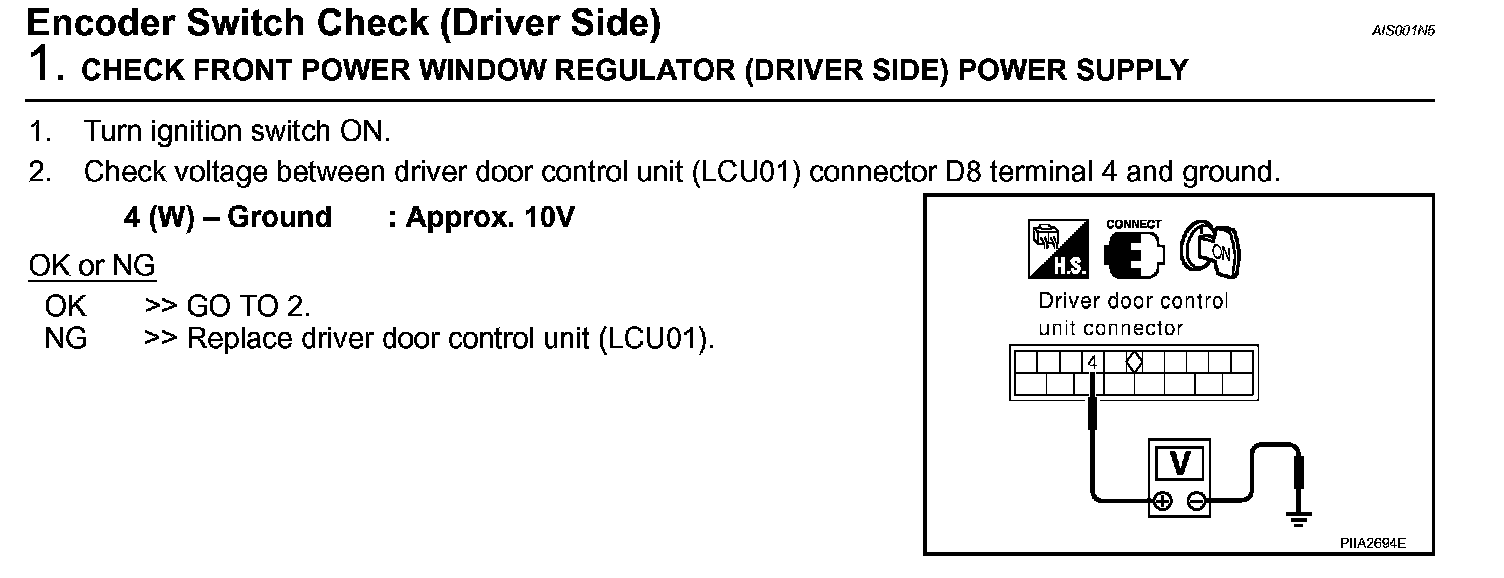

Encoder Switch Check (Driver Side) (Step 1):

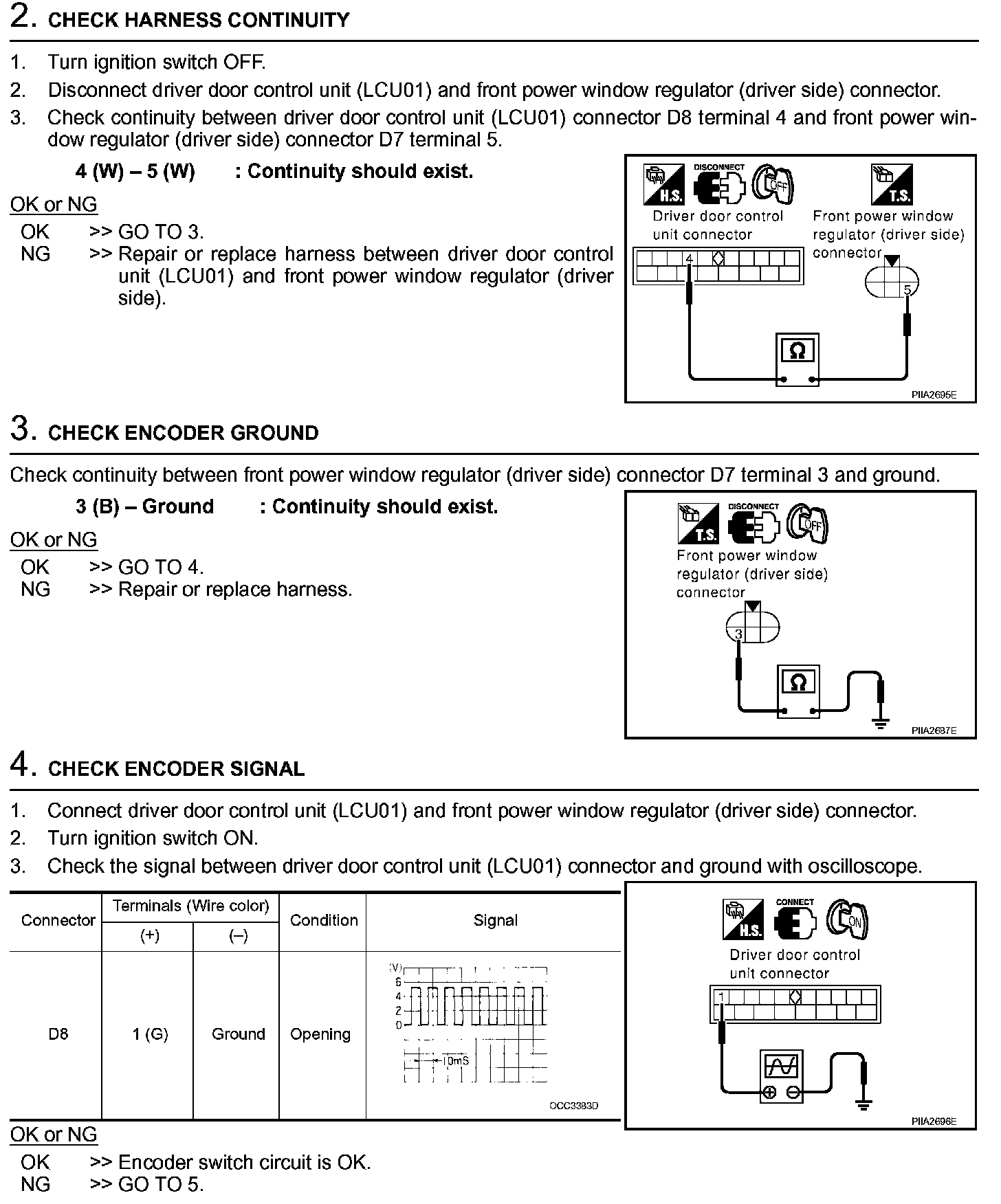

Encoder Switch Check (Driver Side) (Steps 2 - 4):

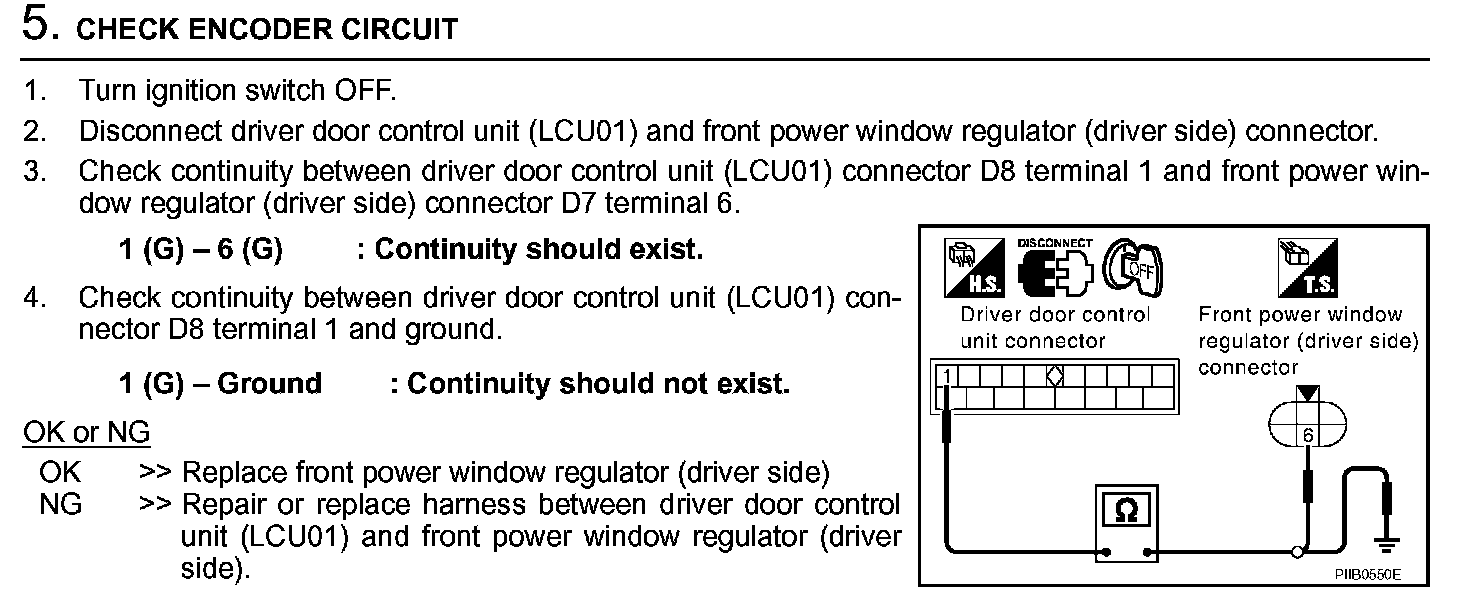

Encoder Switch Check (Driver Side) (Step 5):
