Work Support

WORK SUPPORT

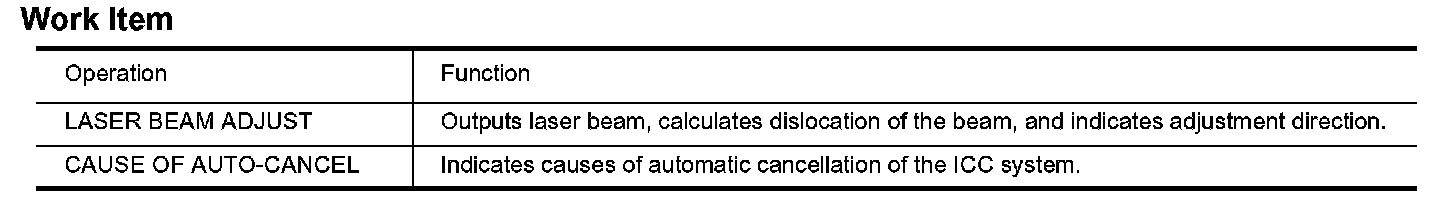

Work Item

Laser Beam Adjust
For details, refer to "LASER BEAM AIMING ADJUSTMENT".

Cause of Auto-Cancel
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
3. Turn ignition switch ON.
4. Touch "START" on the display.
5. Touch "ICC" on the selection screen.
If "ICC" is not indicated, go to GI-38, "CONSULT-II Data Link Connector (DLC) Circuit". Data Link Connector Schematic
6. Touch "WORK SUPPORT" on the selection screen.
7. Touch "CAUSE OF AUTO-CANCEL" on the selection screen.
8. Cause of automatic cancellation screen will be shown.

CAUTION: Last five cancel (system cancel) causes are displayed.

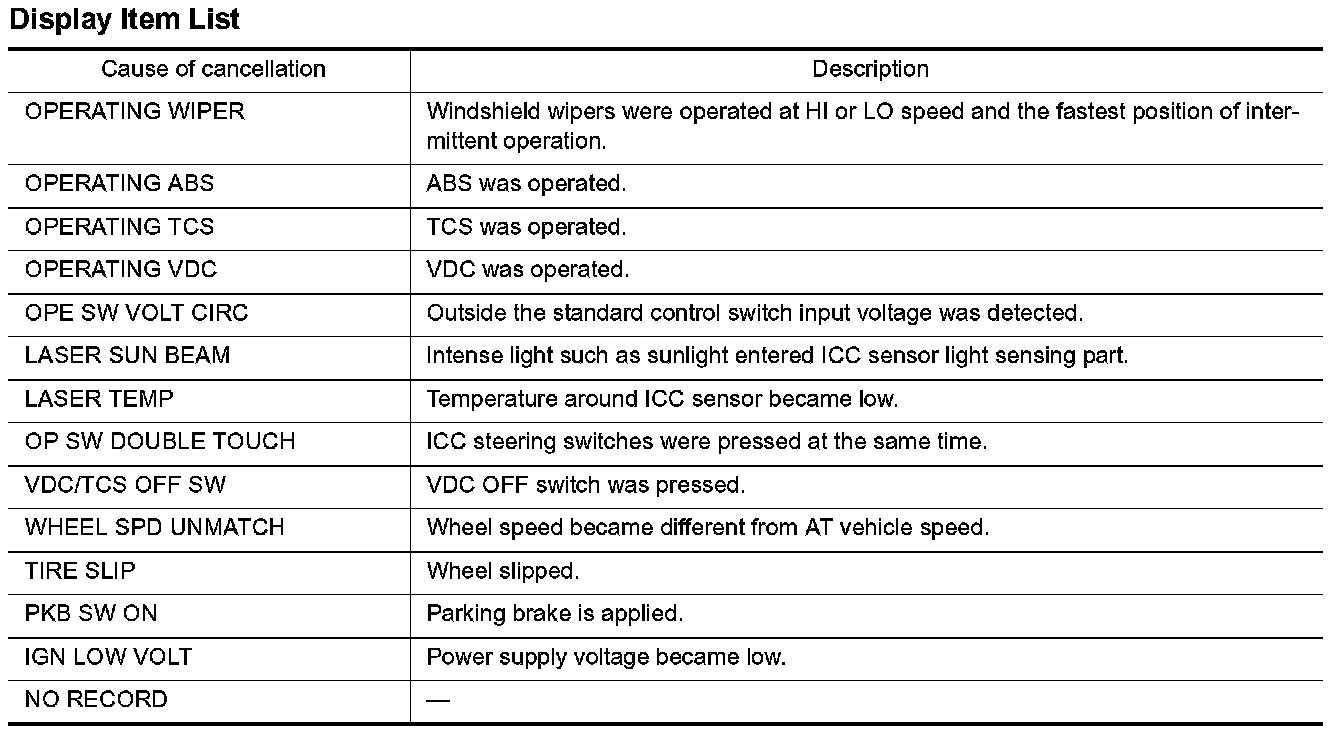

Display Item List
