Initial Inspection and Diagnostic Overview
Operational CheckThe purpose of the operational check is to confirm that the system operates properly.
Conditions : Engine running and at normal operating temperature

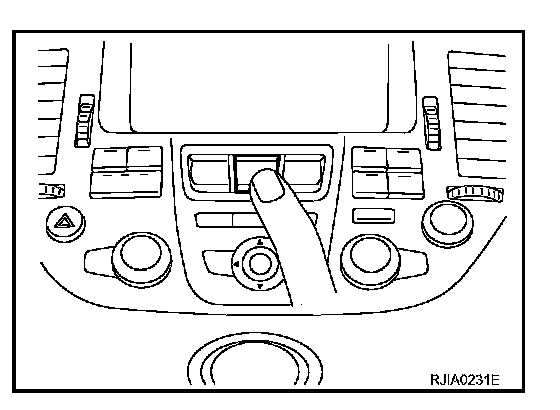

CHECKING MEMORY FUNCTION
1. Set the temperature 90 °F or 32 °C.
2. Press OFF switch.
3. Turn the ignition switch OFF.
4. Turn the ignition switch ON.
5. Press the AUTO switch.
6. Confirm that the set temperature remains at previous temperature.
7. Press OFF switch.
If NG, go to trouble diagnosis procedure for memory function ATC-103, "Memory Function". Memory Function
If OK, continue with next check.
CHECKING BLOWER
1. Press fan switch (up side) one time. Blower should operate on low speed. The fan symbol should have one blade lit.
2. Press fan switch (up side) one more time, and continue checking blower speed and fan symbol until all speeds are checked.
3. Leave blower on MAX speed.
If NG, go to trouble diagnosis procedure for blower motor ATC-81, "Blower Motor Circuit". Blower Motor Circuit
If OK, continue with next check.
CHECKING DISCHARGE AIR
1. Press mode switch four times and DEF button.
2. Each position indicator should change shape.
3. Confirm that discharge air comes out according to the air distribution table. Refer to "Discharge Air Flow".
Intake door position is checked in the next step.
If NG, go to trouble diagnosis procedure for intake door motor ATC-77, "Intake Door Motor Circuit". Intake Door Motor Circuit
If OK, continue with next check.
NOTE: Confirm that the compressor clutch is engaged (visual inspection) and intake door position is at FRESH when the DEF is selected.
CHECKING RECIRCULATION
1. Press intake switch one time.
2. Press intake switch again. Recirculation indicator should illuminate.
3. Listen for intake door position change (you should hear blower sound change slightly).
If NG, go to trouble diagnosis procedure for intake door ATC-77, "Intake Door Motor Circuit". Intake Door Motor Circuit
If OK, continue with next check.
CHECKING TEMPERATURE DECREASE
1. Turn the temperature dial until 18 °C (60 °F) is displayed.
2. Check for cold air at discharge air outlets.
If NG, go to trouble diagnosis procedure for insufficient cooling ATC- 92, "Insufficient Cooling". Insufficient Cooling (Performance Test)
If OK, continue with next check.
CHECKING TEMPERATURE INCREASE
1. Turn the temperature dial until 32 °C (90 °F) is displayed.
2. Check for hot air at discharge air outlets.
If NG, go to trouble diagnosis procedure for insufficient heating ATC- 100, "Insufficient Heating". Insufficient Heating
If OK, continue with next check.
CHECK ECON (ECONOMY) MODE
1. Set the temperature 75 °F or 25 °C.
2. Press ECON switch.
3. Display should indicate ECON (not AUTO).
4. Press ECON switch again. Display should disappear ECON.
- Confirm that the compressor clutch is not engaged (visual inspection). (Discharge air and blower speed will depend on ambient, in-vehicle, and set temperatures.)
If NG, go to trouble diagnosis procedure for ECON (Economy) mode ATC-104, "ECON (ECONOMY) MODE". ECON (Economy) Mode Does Not Operate
If OK, continue with next check.
CHECKING AUTO MODE
1. Press AUTO switch.
2. Display should indicate AUTO (not ECON).
- Confirm that the compressor clutch engages (audio or visual inspection). (Discharge air and blower speed will depend on ambient, in-vehicle, and set temperatures.)
If NG, go to trouble diagnosis procedure for A/C system ATC-65, "Power Supply and Ground Circuit for Auto Amp.", Power Supply and Ground Circuit For Auto Amp. then if necessary, trouble diagnosis procedure for magnet clutch ATC-86, "Magnet Clutch Circuit". Magnet Clutch Circuit
If all operational check are OK (symptom cannot be duplicated), go to Incident Simulation Tests in GI-26, "How to Perform Efficient Diagnosis for an Electrical Incident" How to Perform Electrical Incident Simulation Tests and perform tests as outlined to simulate driving conditions environment. If symptom appears, refer to ATC-35, "SYMPTOM TABLE" and perform applicable trouble diagnosis procedures. Symptom Matrix Chart
