Engine Oil: Testing and Inspection

Inspection
ENGINE OIL LEVEL

NOTE: Before starting engine, check the oil level. If engine is already started, stop it and allow 15 minutes before checking.

1. Put vehicle horizontally
2. Pull out oil level gauge and wipe it clean.

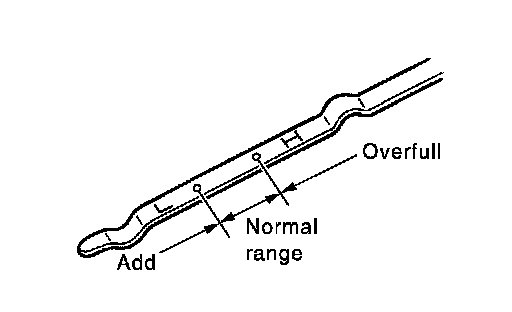

3. Insert oil level gauge and check that the engine oil level is within the range shown in the figure.
4. If it is out of range, adjust it.

ENGINE OIL APPEARANCE
^ Check engine oil for a white milky appearance or excessive contamination.
^ If engine oil is milky, it is highly probable that it is contaminated with engine coolant. Repair the broken parts.
