Ignition Control Module: Testing and Inspection
Component InspectionIGNITION COIL WITH POWER TRANSISTOR 1.
Turn ignition switch OFF.
2.
Disconnect ignition coil harness connector.
3.

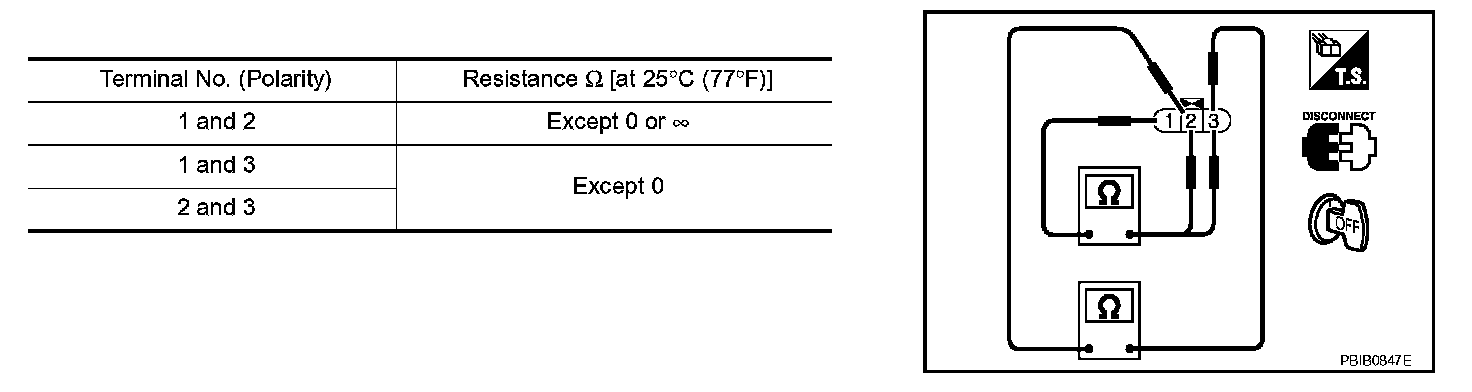

Check resistance between ignition coil terminals as follows.
CONDENSER 1.
Turn ignition switch OFF.
2.
Disconnect condenser harness connector.
3.

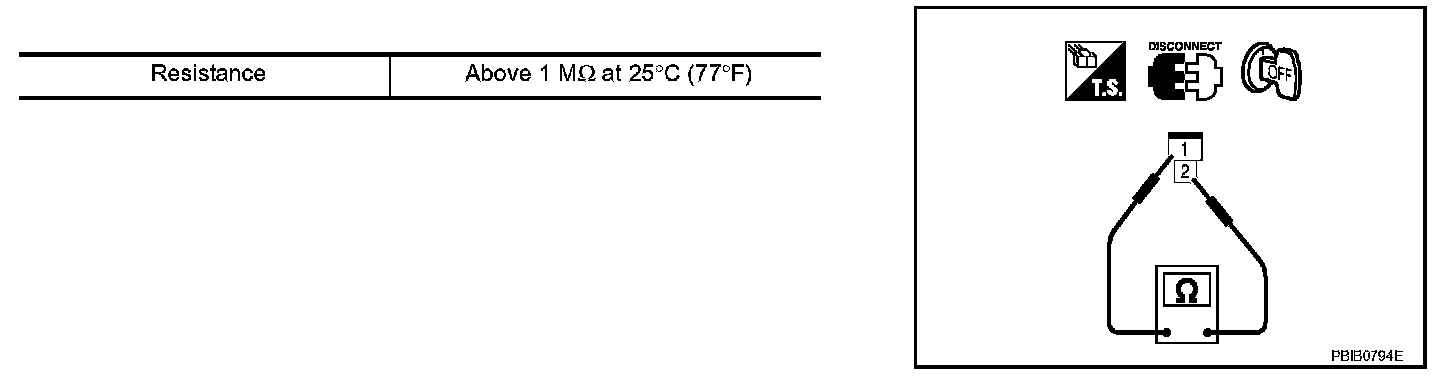

Check resistance between condenser terminals 1 and 2.
Resistance
Above
1 M Ohms at 25 °C (77 °F)
