Connecting Rod, Engine

CONNECTING ROD SIDE CLEARANCE

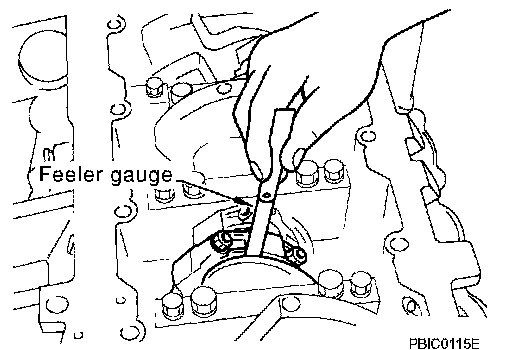

^ Measure the side clearance between connecting rod and crankshaft arm with feeler gauge.
Standard: 0.20 - 0.35 mm (0.0079 - 0.0138 inch)
Limit: 0.40 mm (0.0157 inch)
^ If the measured value exceeds the limit, replace connecting rod, and measure again. If it still exceeds the repair limit, replace crankshaft also.

CONNECTING ROD BEND AND TORSION





^ Check with connecting rod aligner.

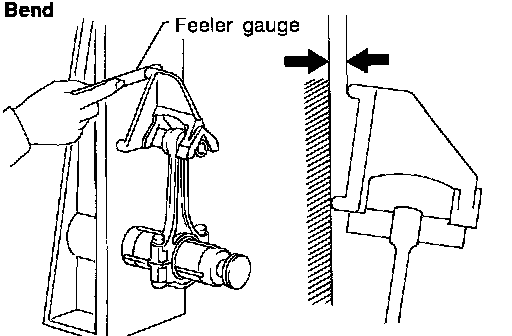

Bend:
Limit 0.15 mm (0.0059 inch) per 100 mm (3.94 inch) length

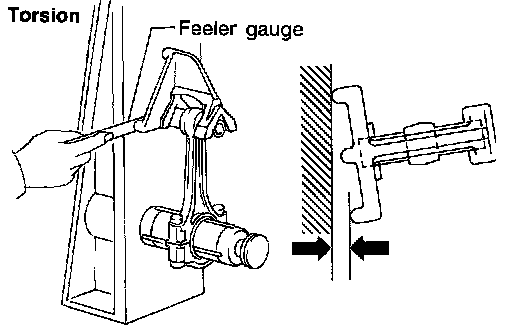

Torsion:
Limit 0.30 mm (0.0118 inch) per 100 mm (3.94 inch) length





^ If it exceeds the limit, replace connecting rod assembly.

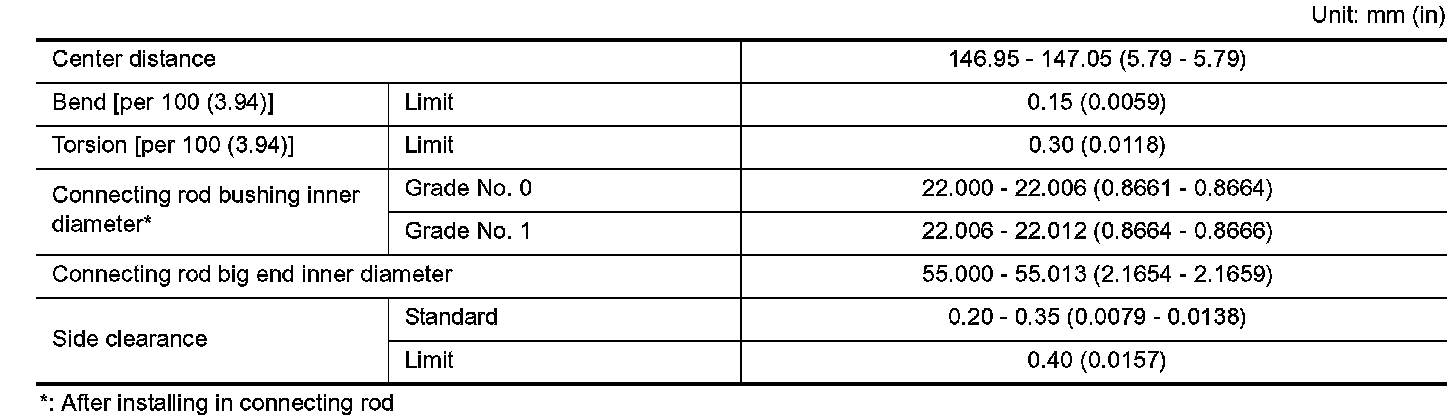

CONNECTING ROD
