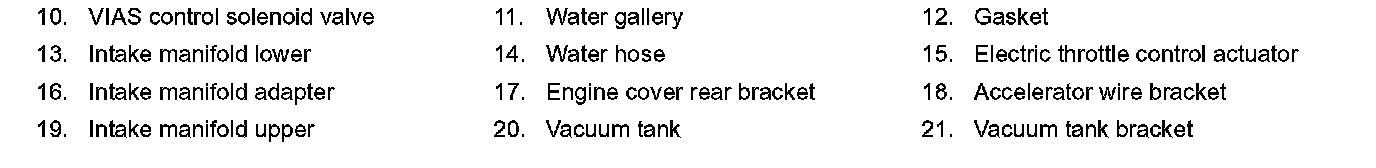

Intake Manifold
Part 1:
Part 2:
Tightening

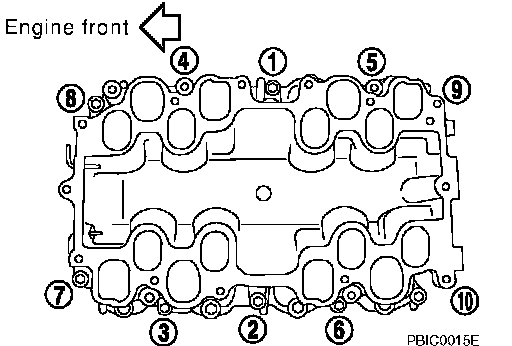

Intake Manifold Lower Bolts
Tighten in numerical order as shown in the figure.
NOTE: No.7 and 8 have longer bolt length than others.
Tightening
Intake Manifold Upper Bolts
Tighten in numerical order as shown in the figure.
NOTE: No.1 to 4 have longer bolt length than others.
