Navigation Module: Service and Repair
Removal and Installation of NAVI Control UnitCAUTION: To avoid damage, eject map DVD-ROM before removing the NAVI control unit.
1.
Slide front seat RH fully forward.
2.

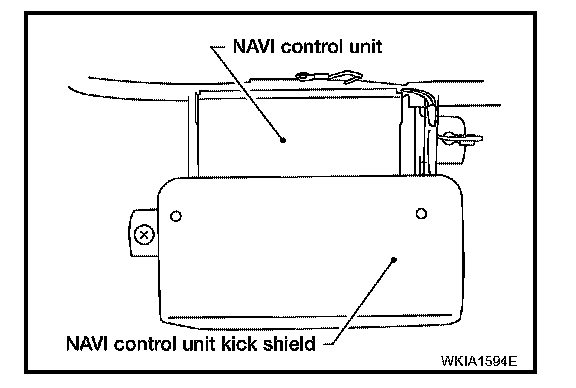

Remove NAVI control unit kick shield.
3.
Disconnect connectors.
4.

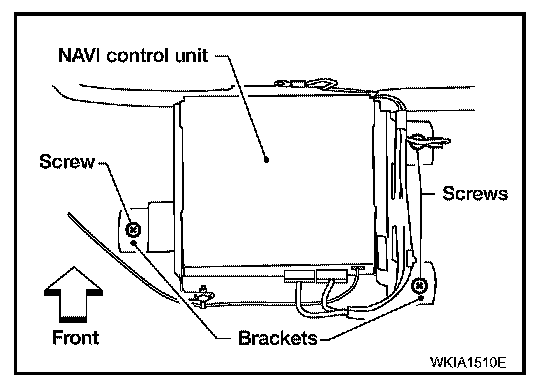

Remove screws and remove NAVI control unit.
5.
Remove screws and brackets from NAVI control unit.
6.
Installation is in the reverse order of removal.
