Passenger Compartment Electrical Units Location
Passenger Compartment Electrical Units Location

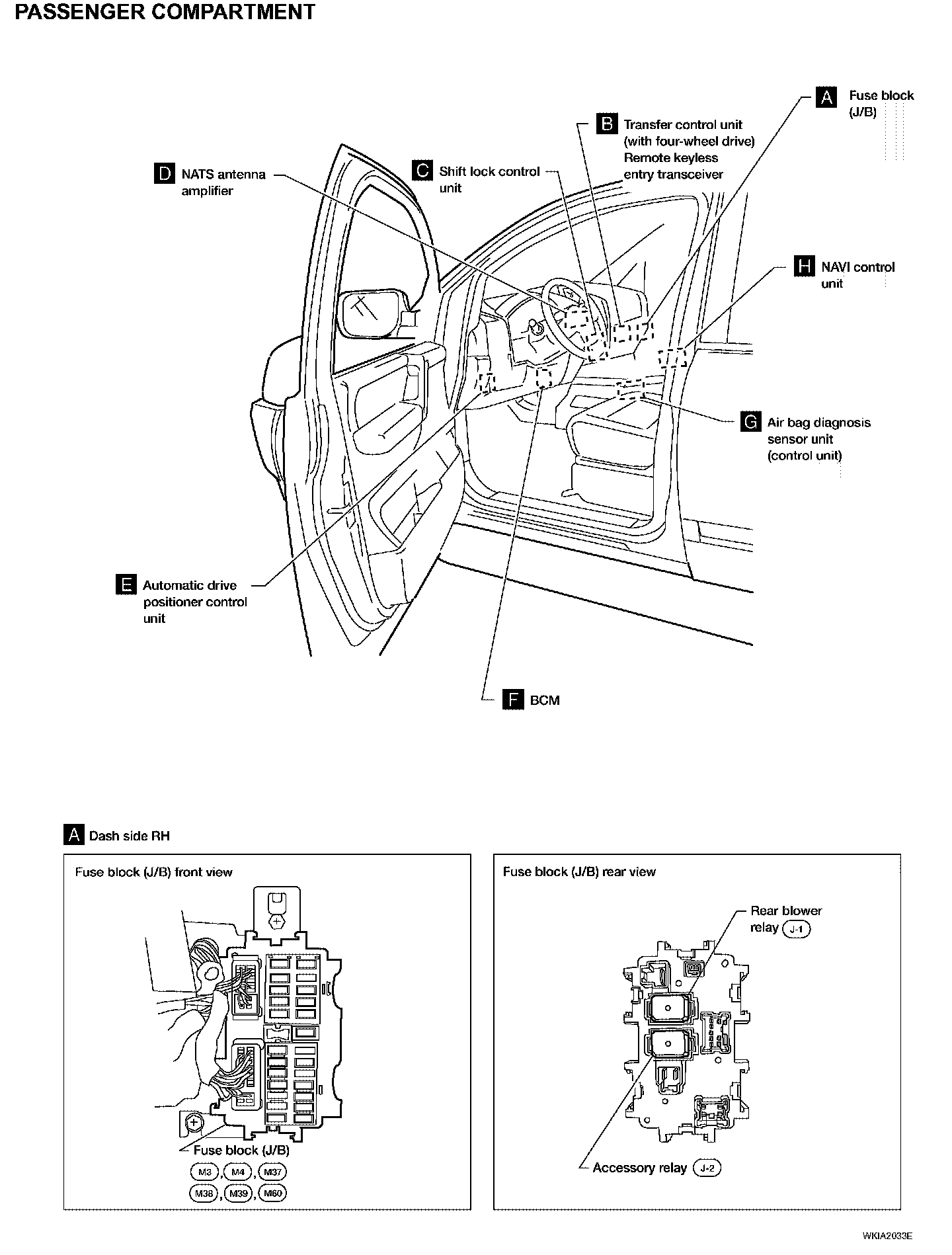

Passenger Compartment Electrical Units Locations:

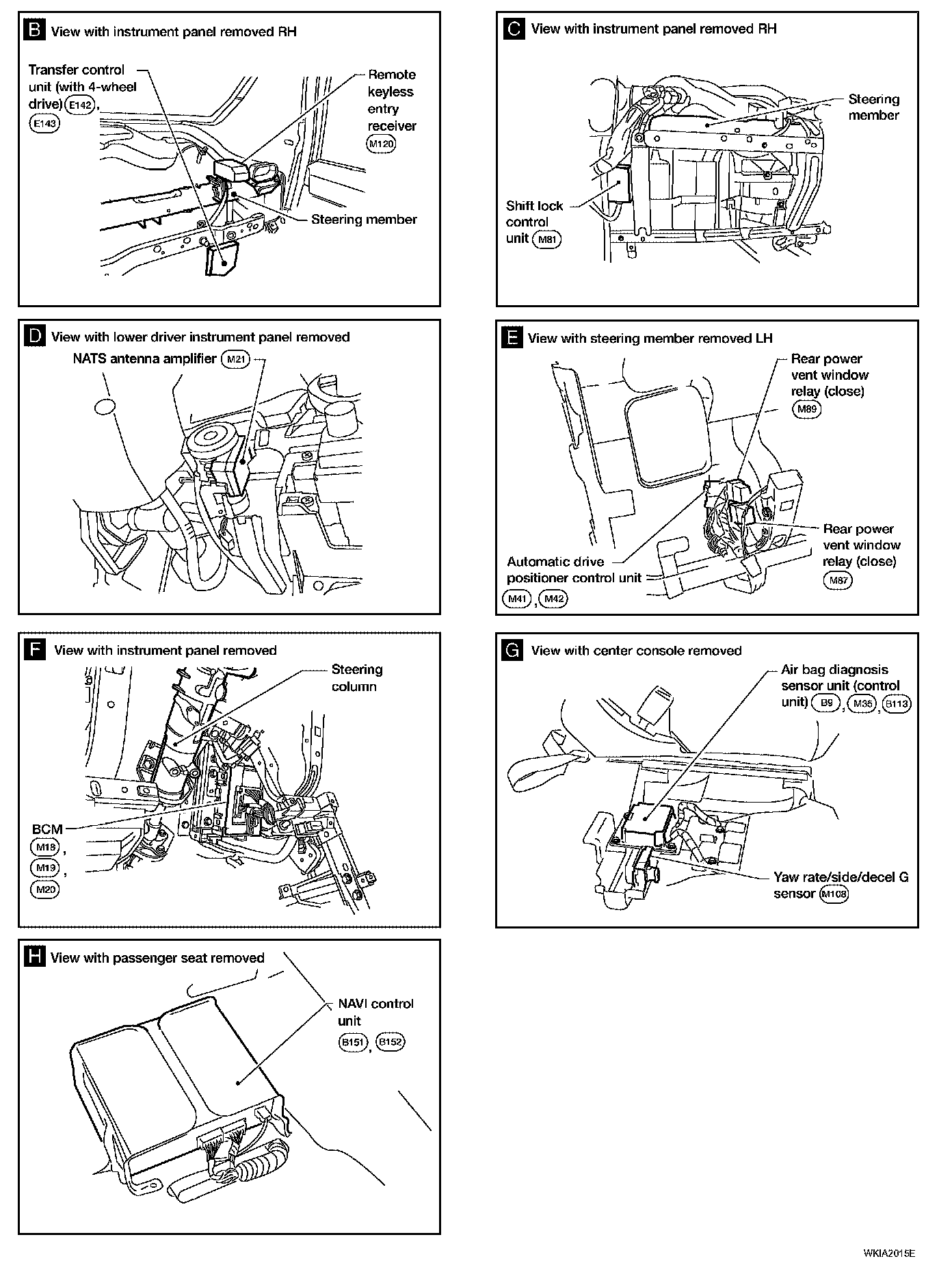

Passenger Compartment Electrical Units Locations:

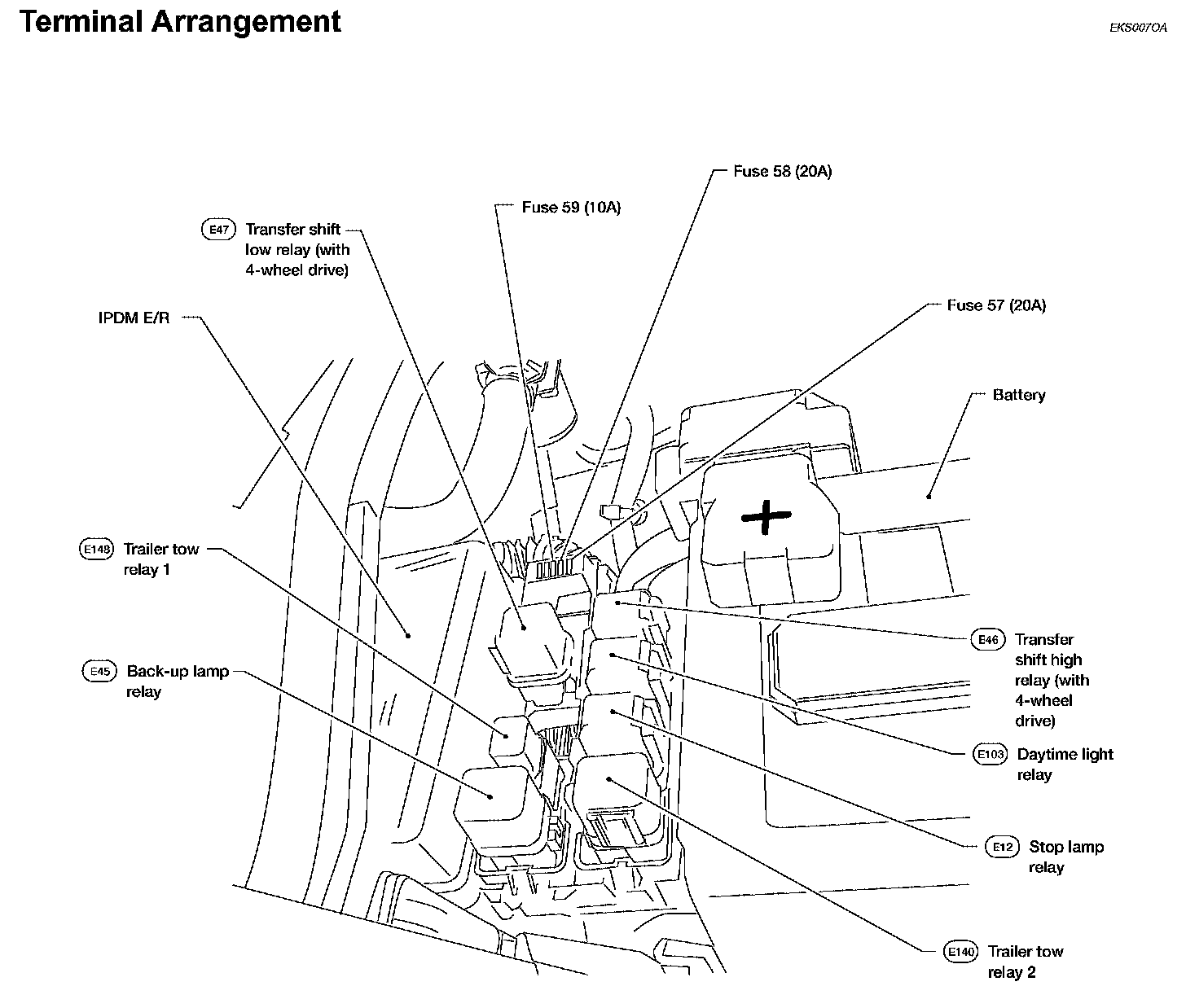

Fuse And Relay Box - Terminal Arrangement:
