Automatic Speed Control Device (ASCD)
Component InspectionASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable).

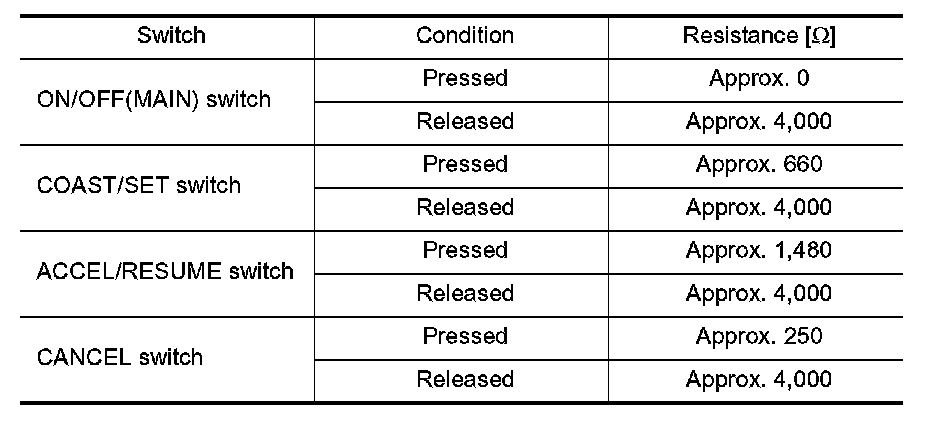

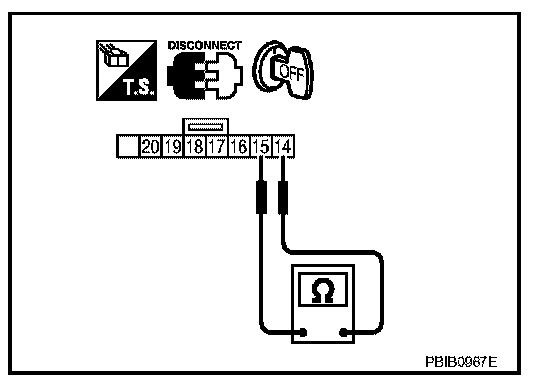

2. Check continuity between ASCD steering switch terminals 14 and 15 with pushing each switch.
ASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable).
2. Check continuity between ASCD steering switch terminals 14 and 15 with pushing each switch.
