Body Control Module

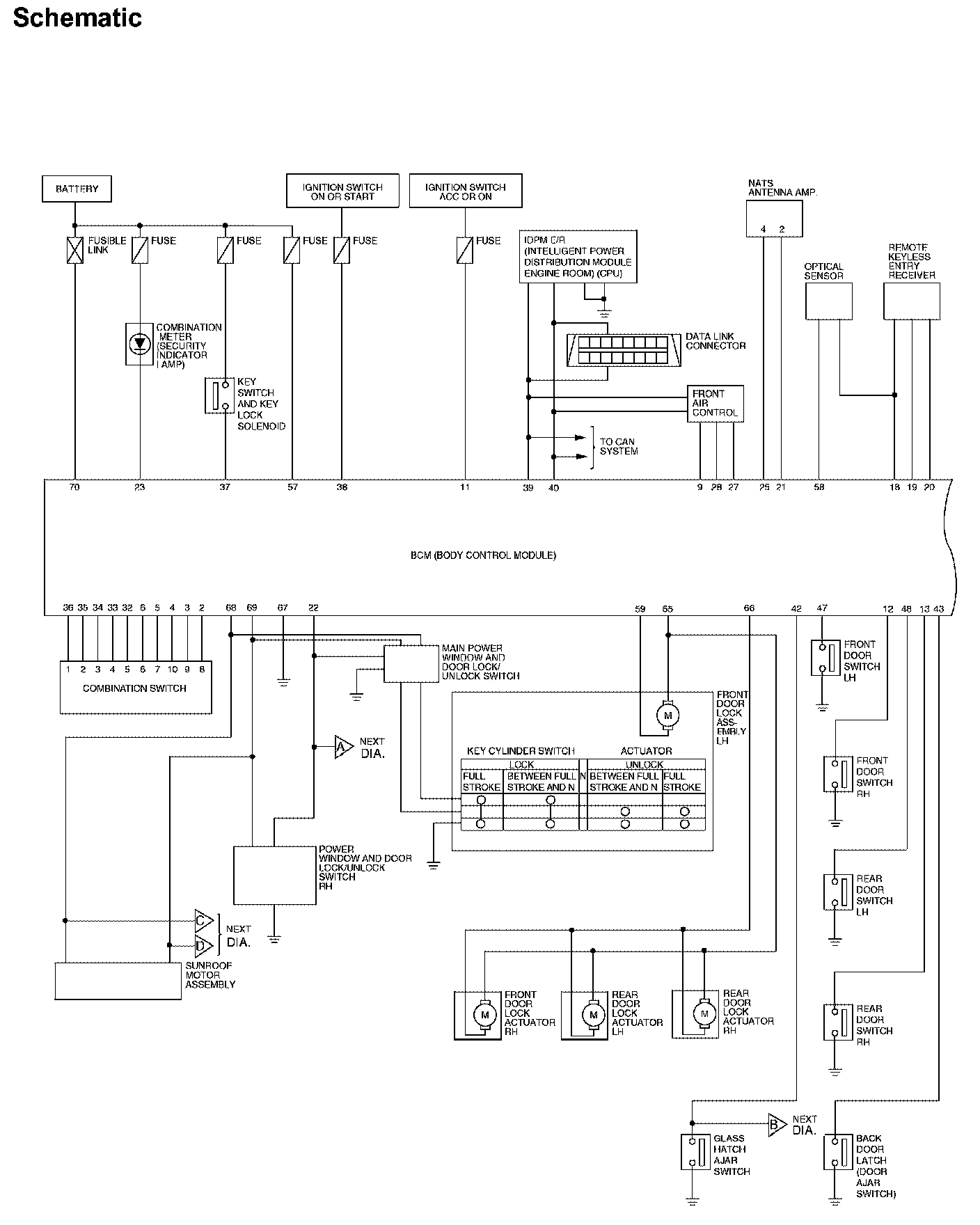

BCM (body Control Module) Schematic Part 1:



BCM (body Control Module) Schematic Part 2:
