Components

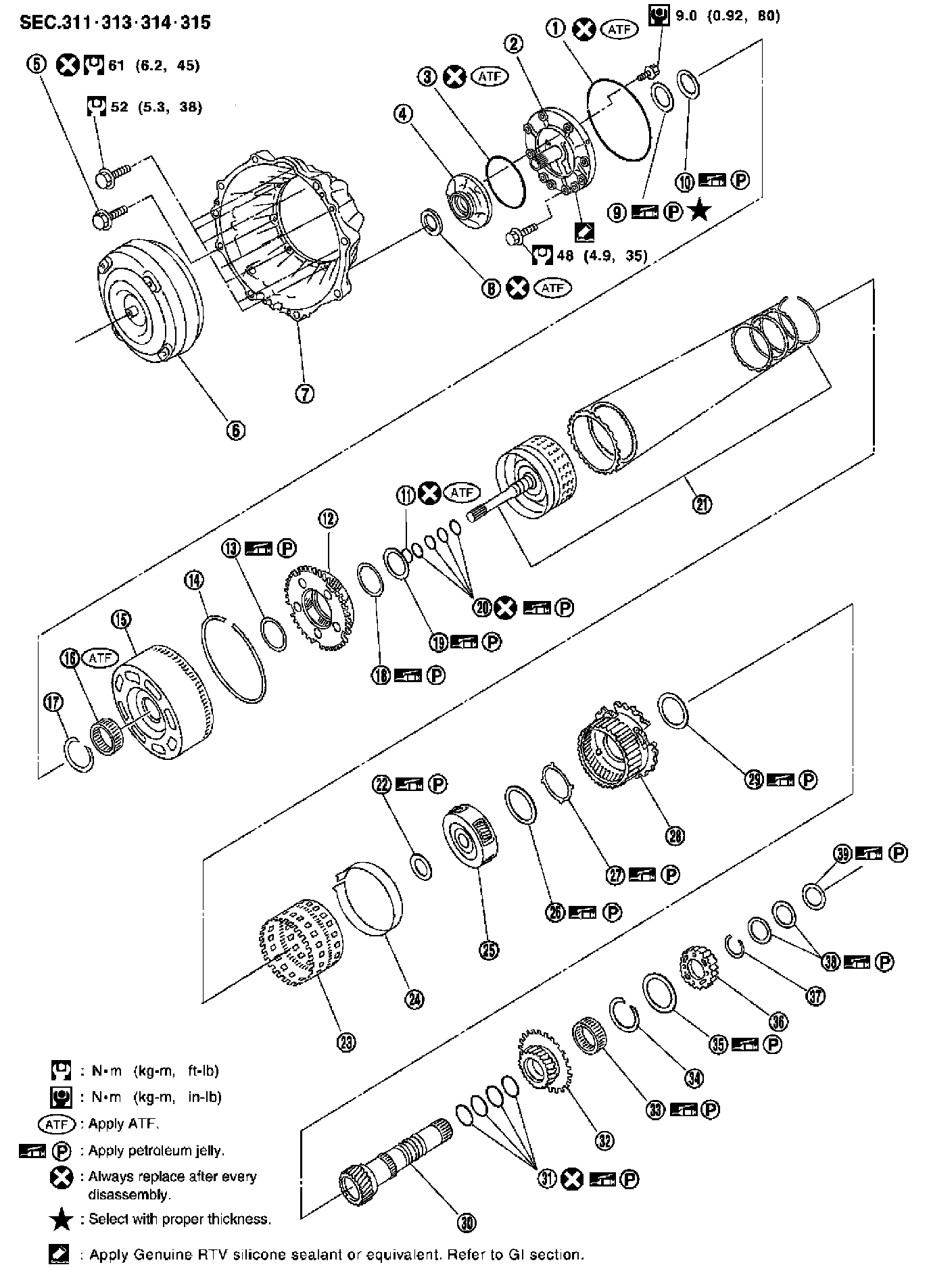

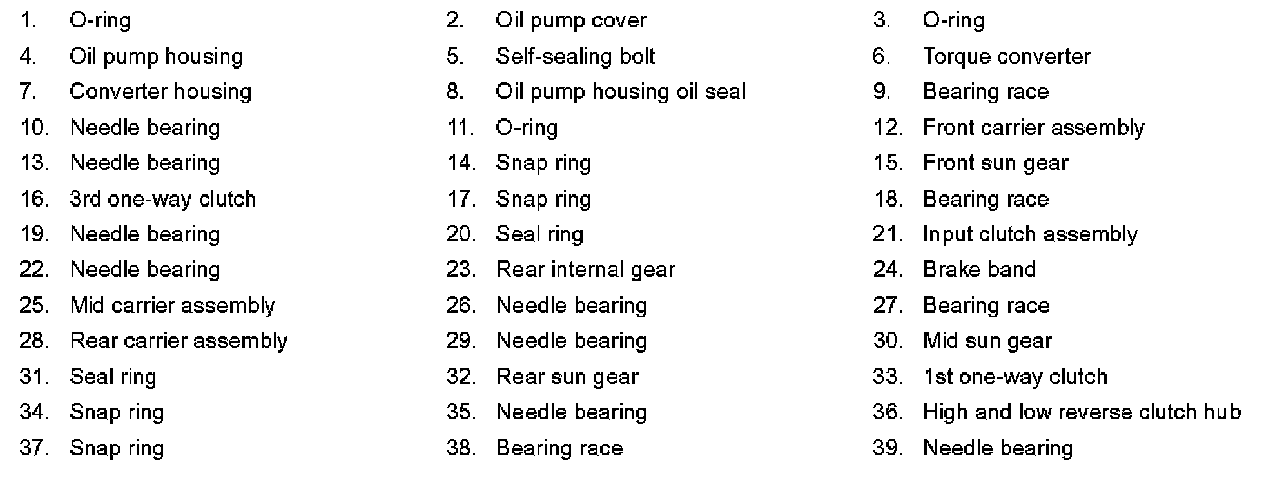

OVERHAUL

Part 1:




Part 2:




Part 1:




Part 2:

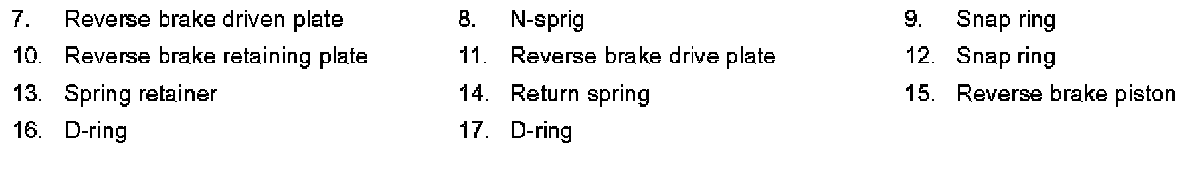

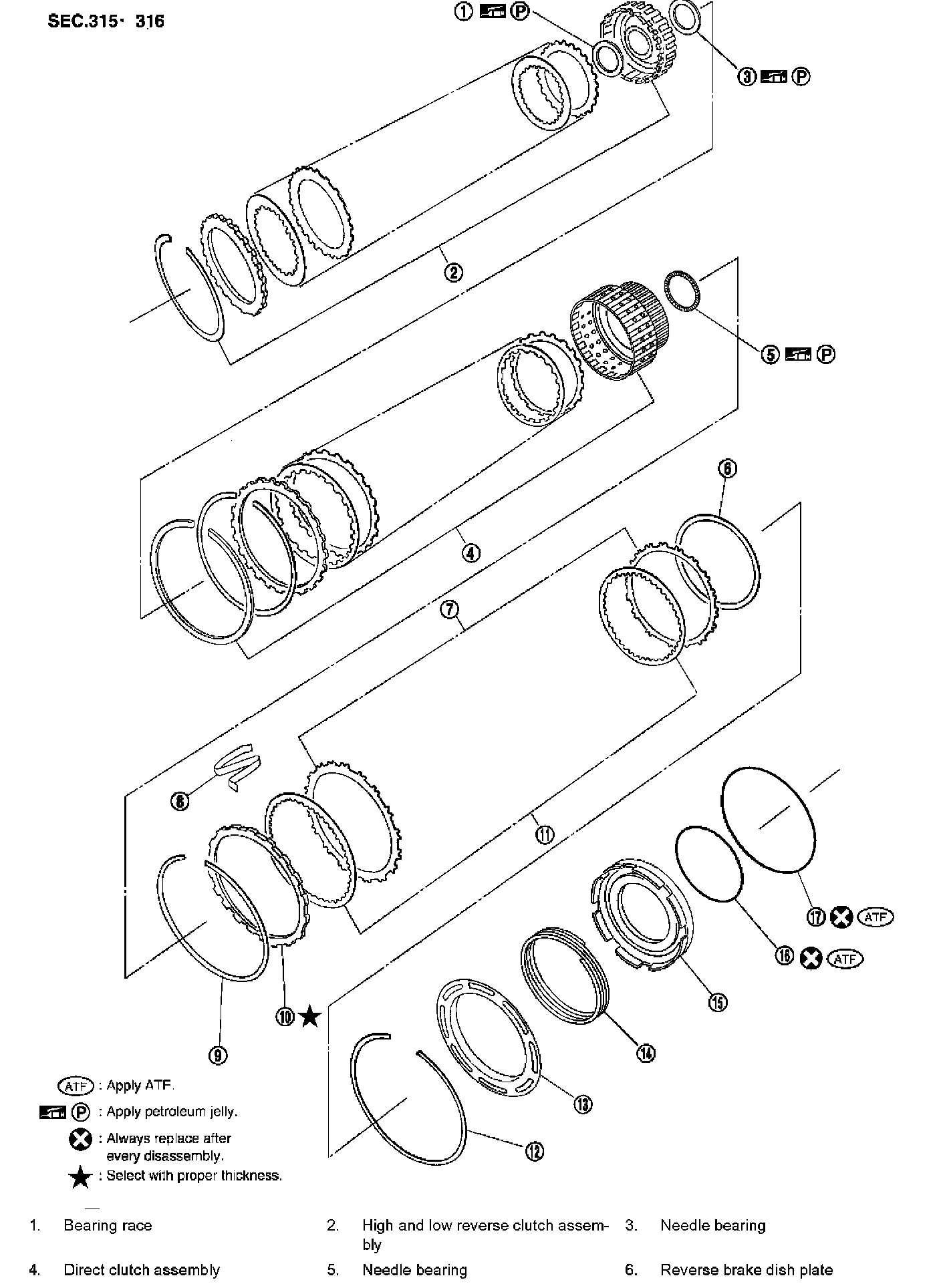

Components

Part 1:




Part 2:

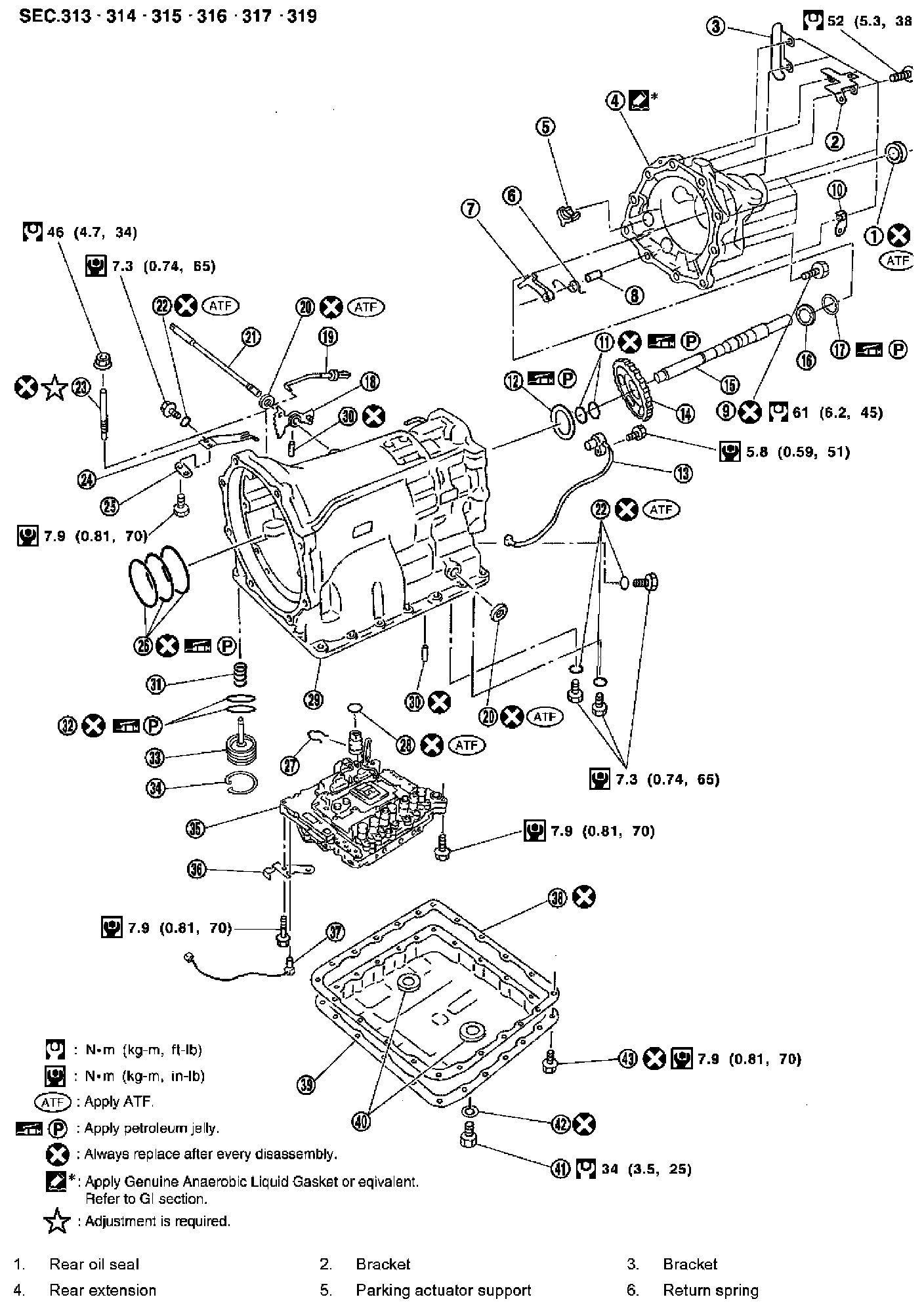

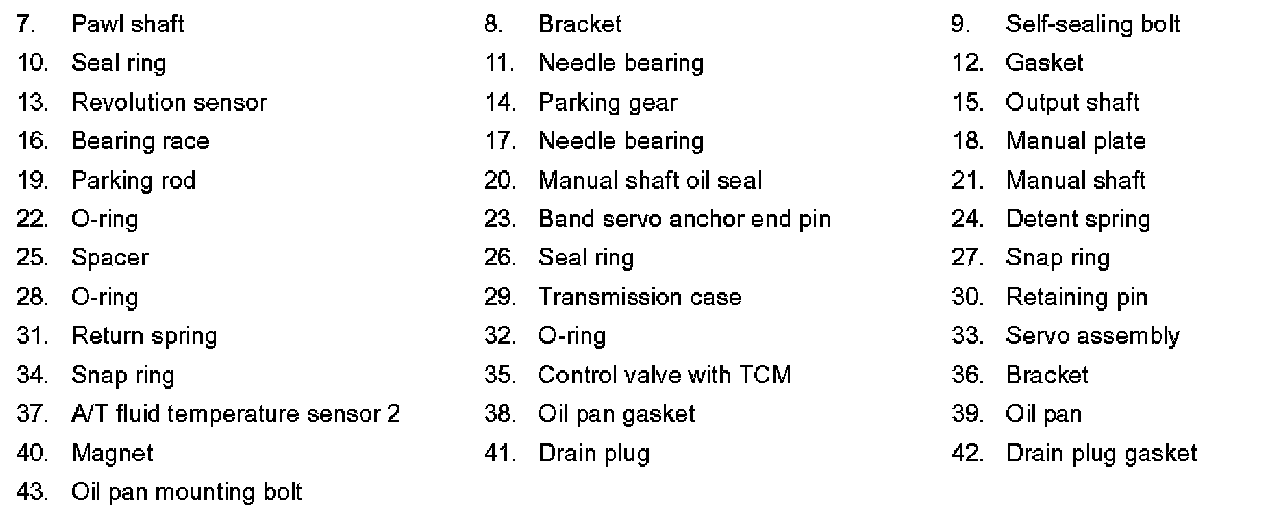

2WD models

Part 1:




Part 2:

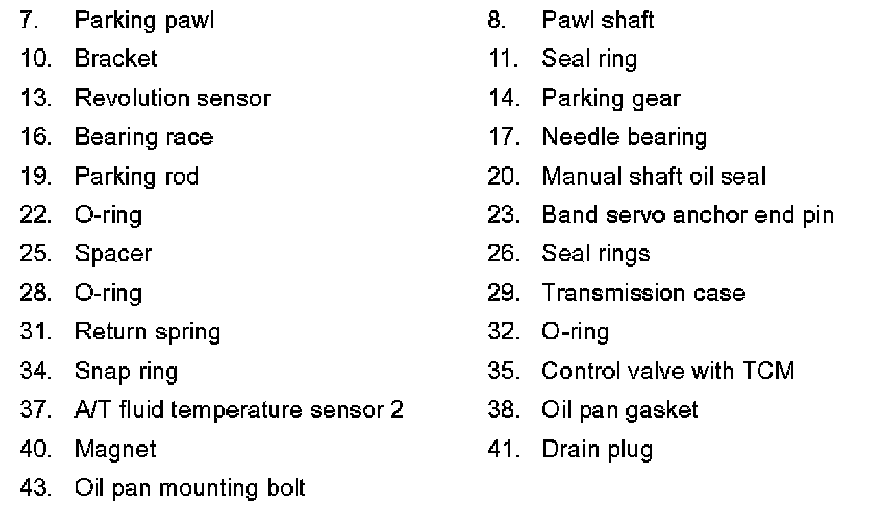

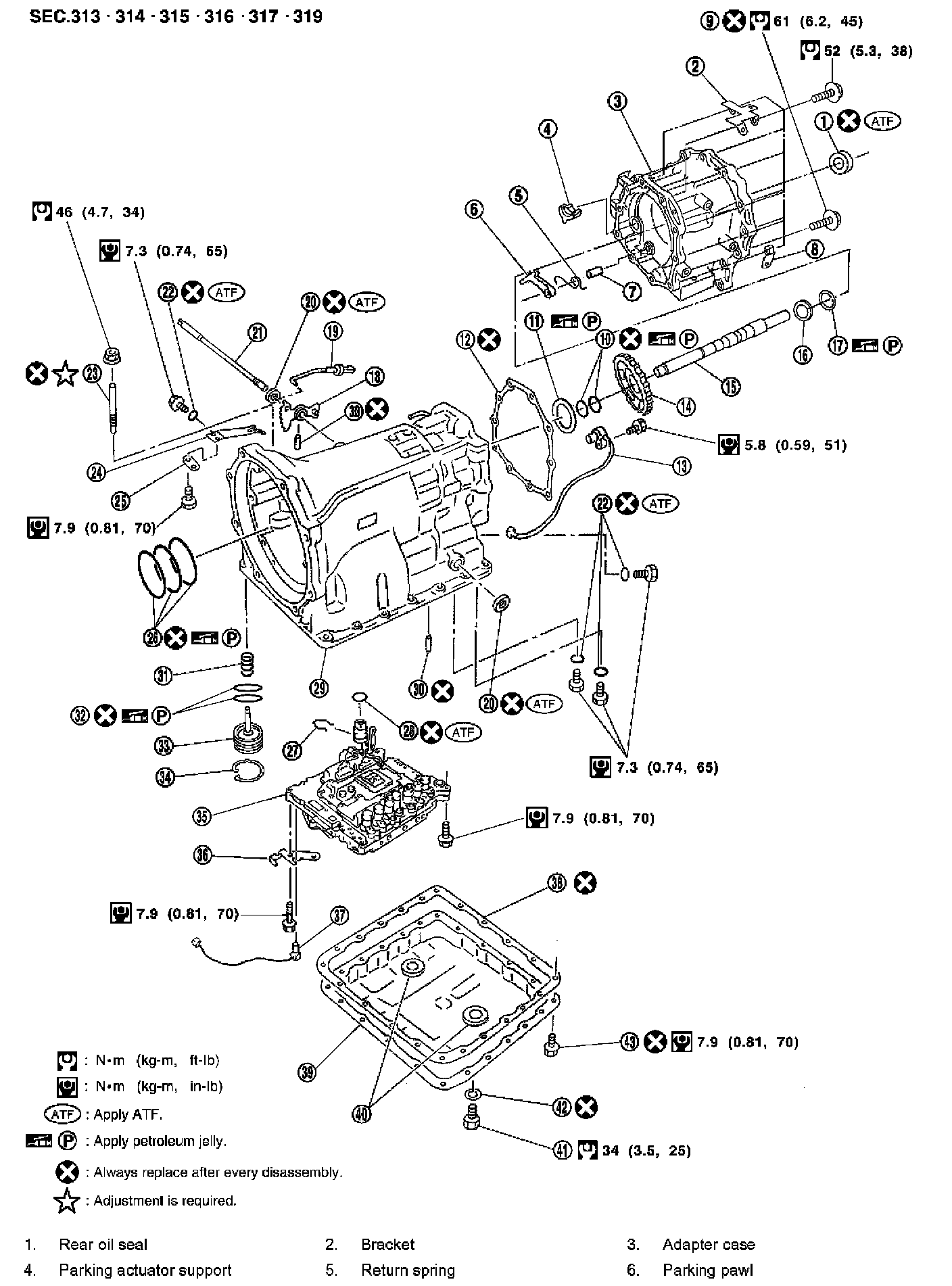

4WD models
