Home >> Infiniti >> 2004 >> QX56 V8-5.6L (VK56DE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case

Transfer Case

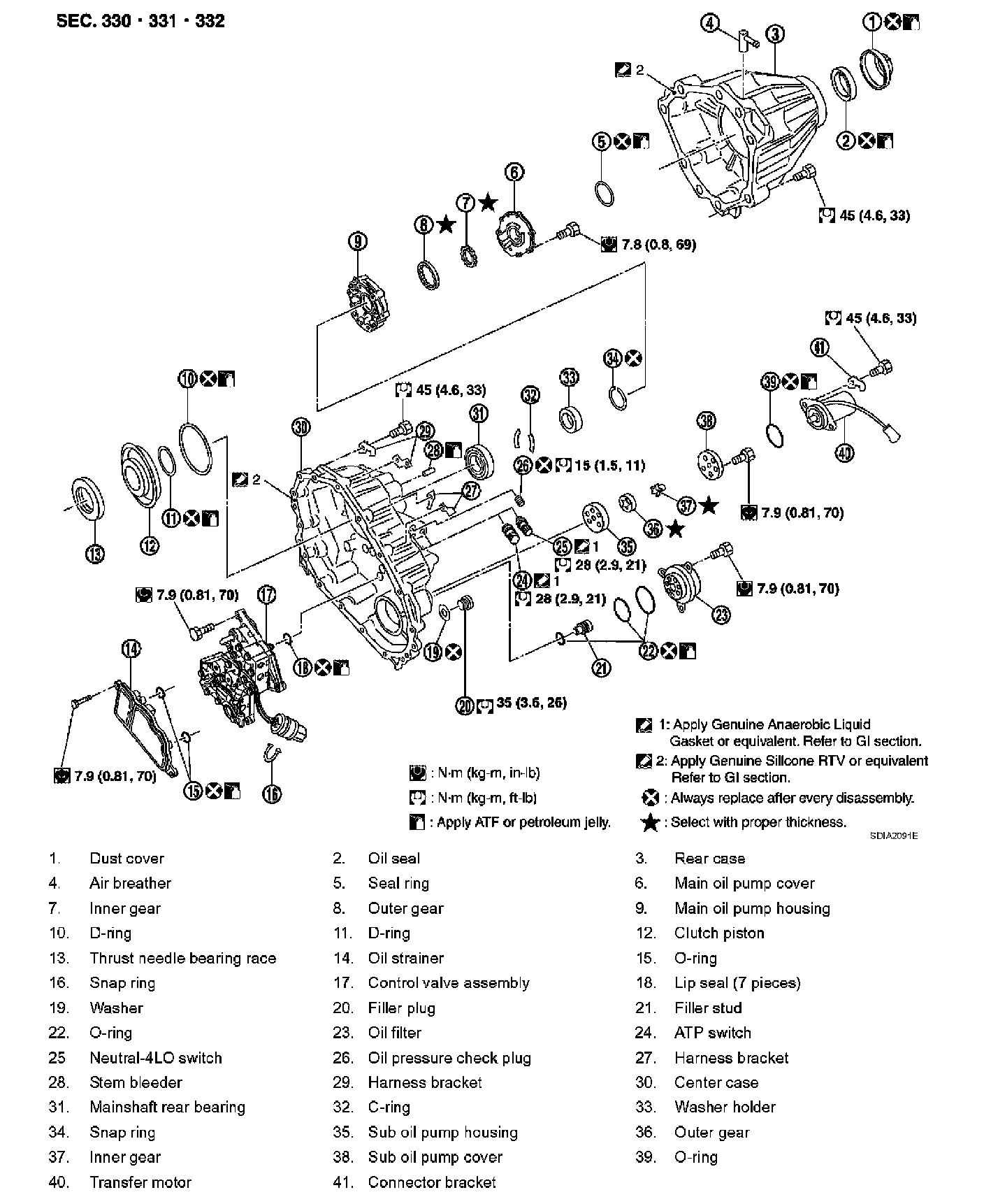

Part 1:

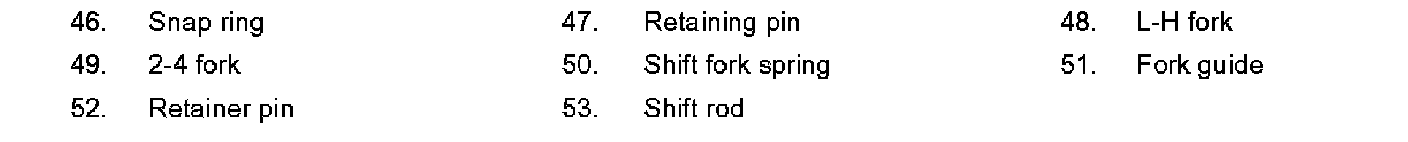

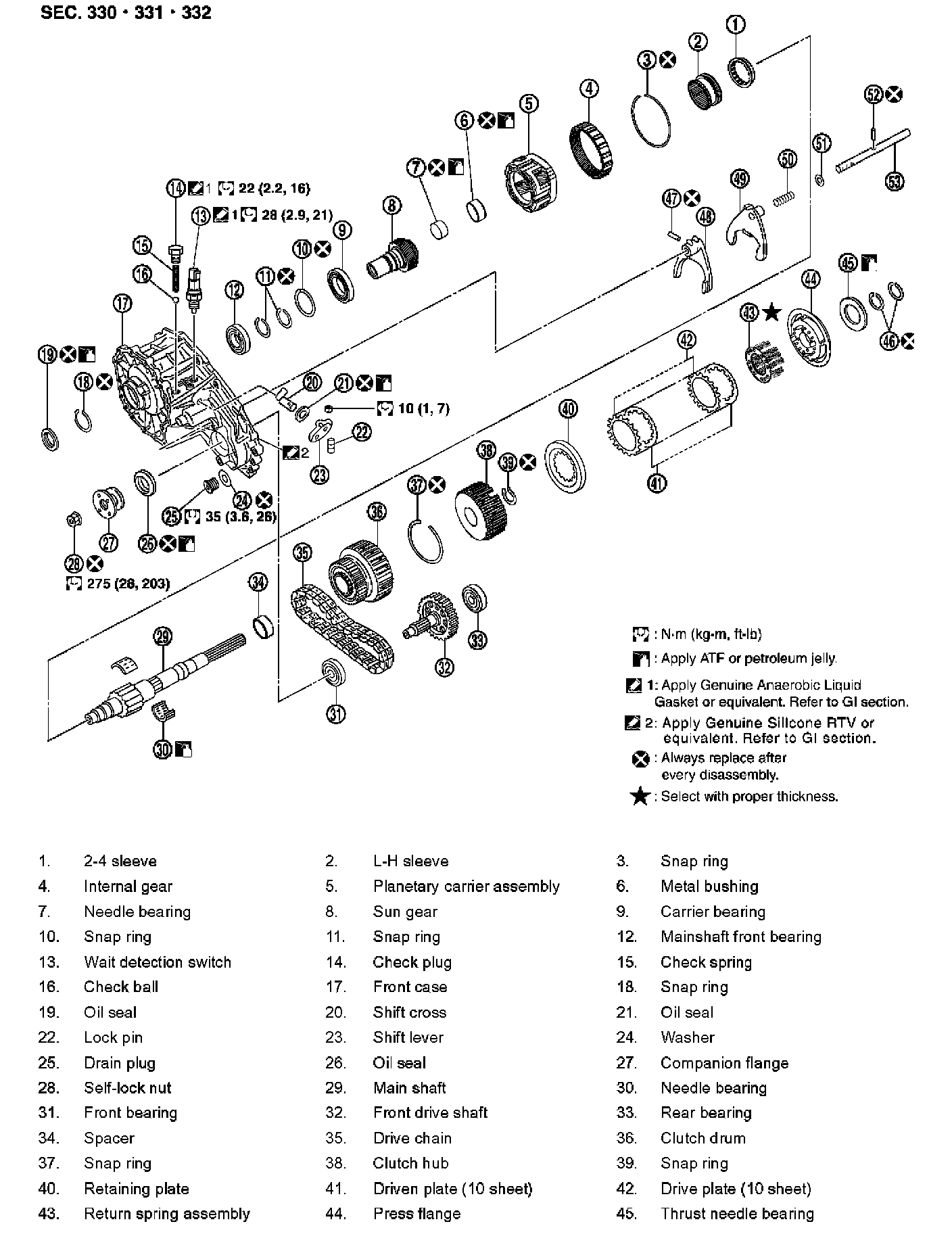

Part 2:
