Compressor HVAC: Service and Repair

Removal and Installation for Compressor



Removal and Installation for Compressor

REMOVAL
1. Discharge the refrigerant. Refer to "HFC-134a (R-134a) Service Procedure".
2. Remove the front right wheel and tire assembly.
3. Remove the engine under cover and the splash shield using power tool.
4. Remove the engine air cleaner and air ducts.
5. Remove the drive belt.
6. Disconnect the compressor electrical connector.
7. Disconnect the high-pressure flexible hose and low-pressure flexible hose from the compressor.

CAUTION: Cap or wrap the joint of the hose with suitable material such as vinyl tape to avoid the entry of contaminants.

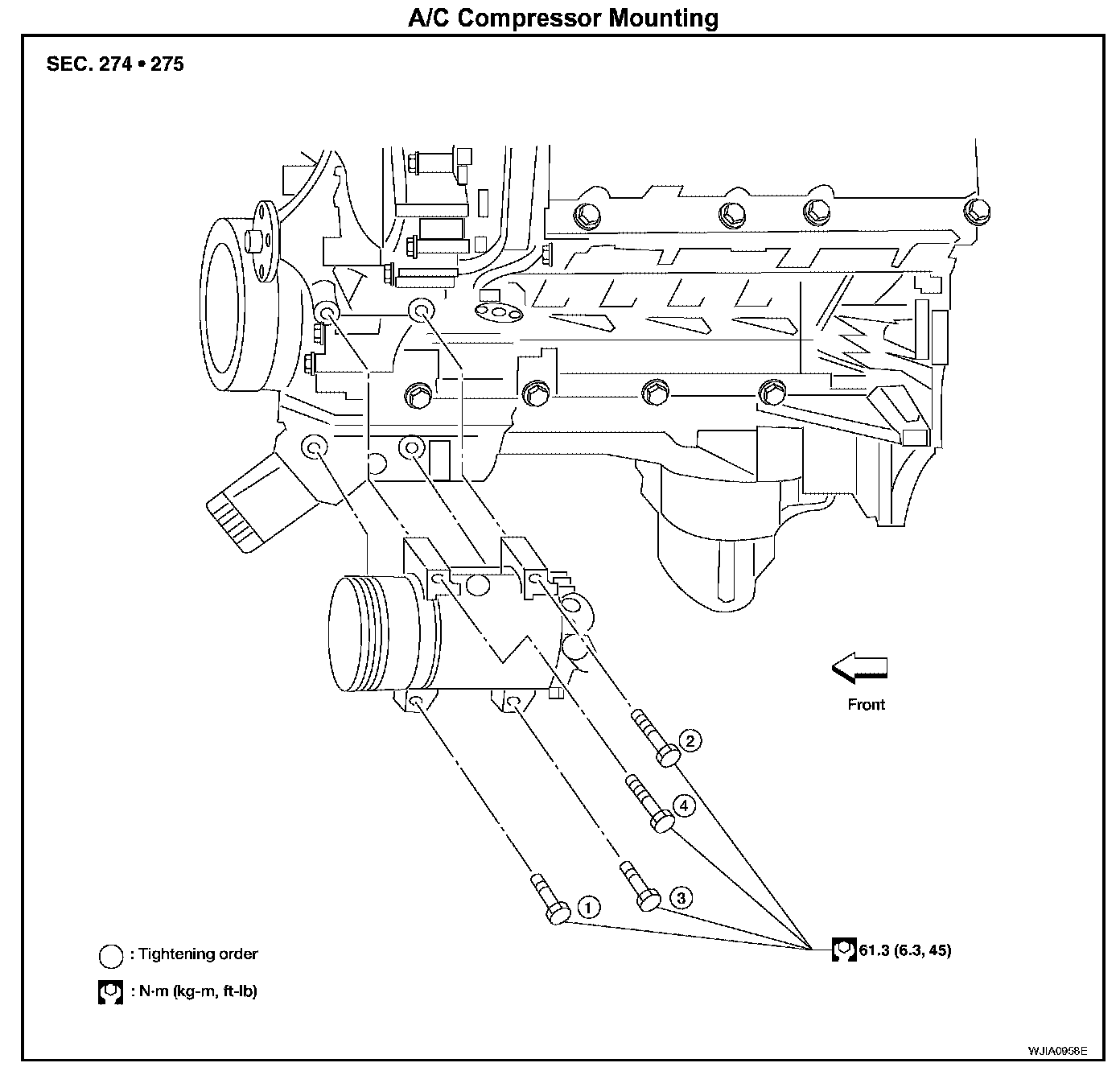

8. Remove the compressor bolts and nut using power tools.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
- Replace the O-ring of the low-pressure flexible hose and high-pressure flexible hose with a new one, apply compressor oil to the O-rings before installation.
- After recharging the A/C system with refrigerant, check for leaks.
