REAR AIR CONTROL
Removal
1.
Remove the overhead console from the headliner.
2.

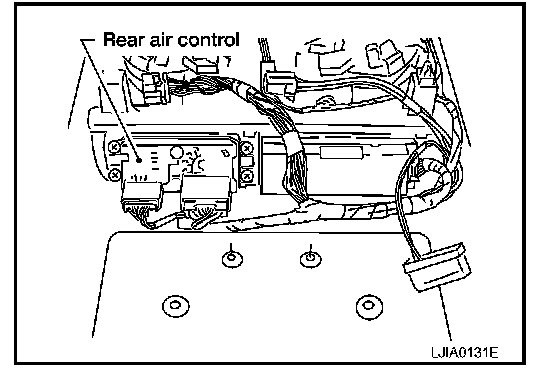

Remove the four screws and remove the rear air control.
Installation
Installation is in the reverse order of removal.
