Terminals and Reference Value For BCM
Terminals and Reference Value For BCM

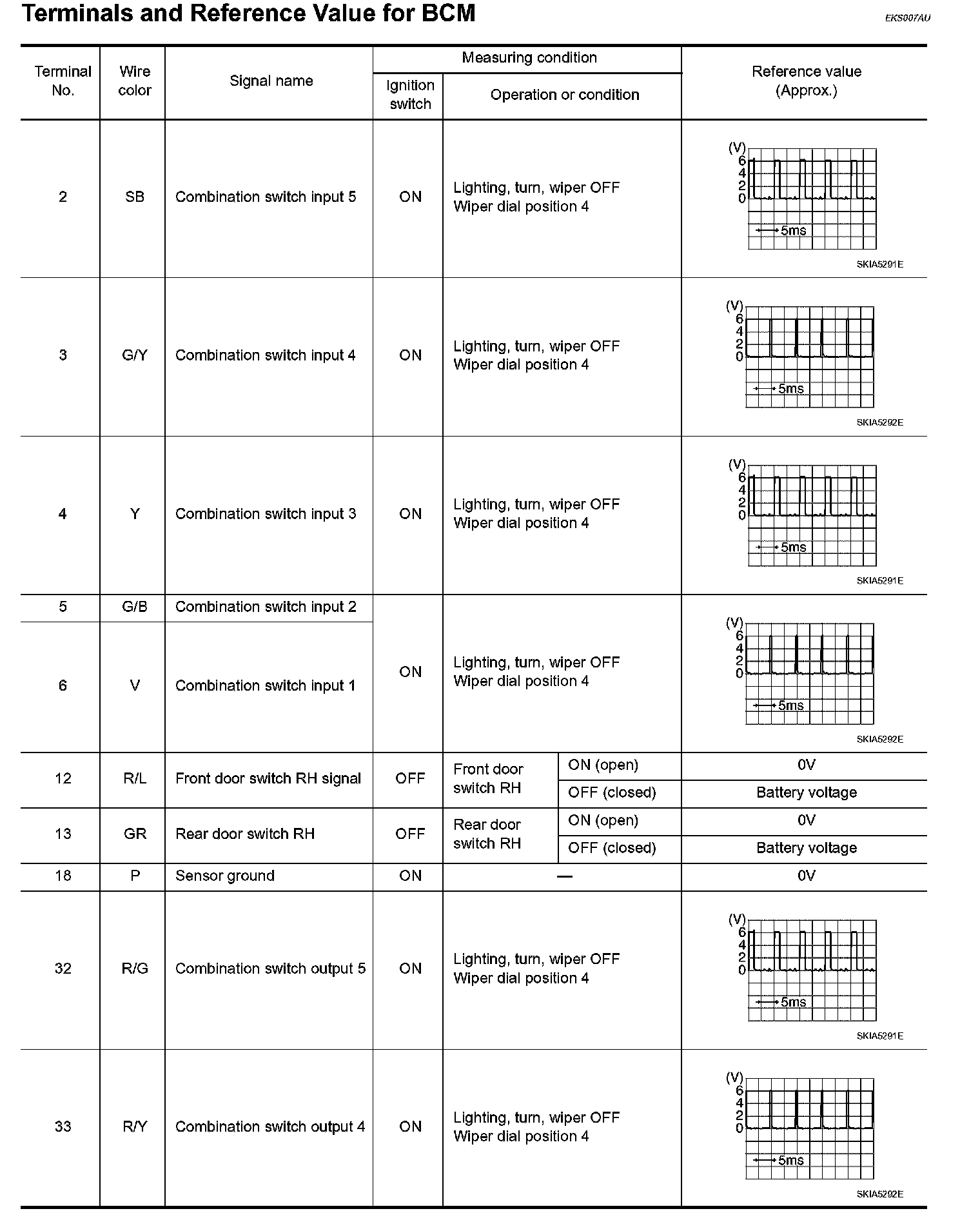

Terminals and Reference Value for BCM Part 1:
Terminals and Reference Value for BCM Part 2:
