Terminals and Reference Values For IPDM E/R

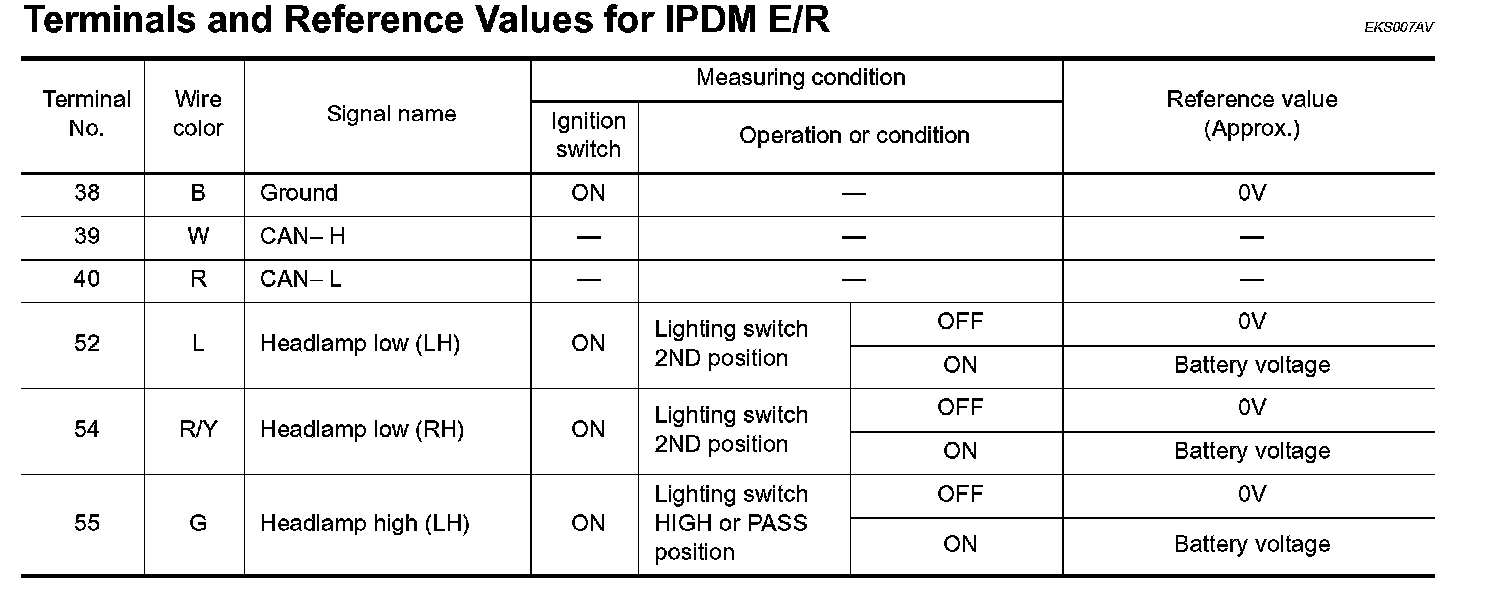

Terminals and Reference Values for IPDM E/R Part 1:

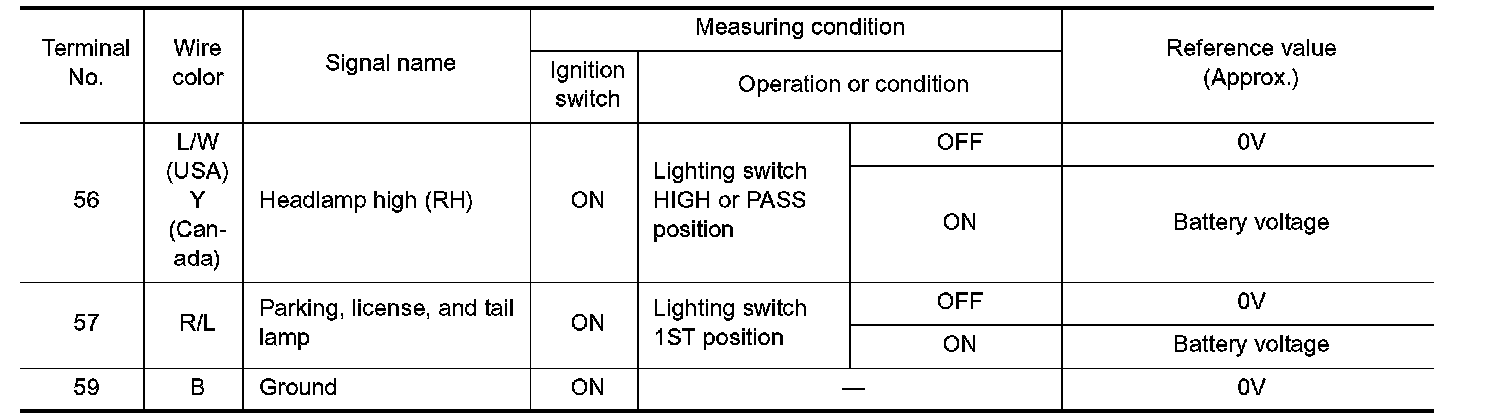

Terminals and Reference Values for IPDM E/R Part 2:
