Air Flow Meter/Sensor: Service and Repair

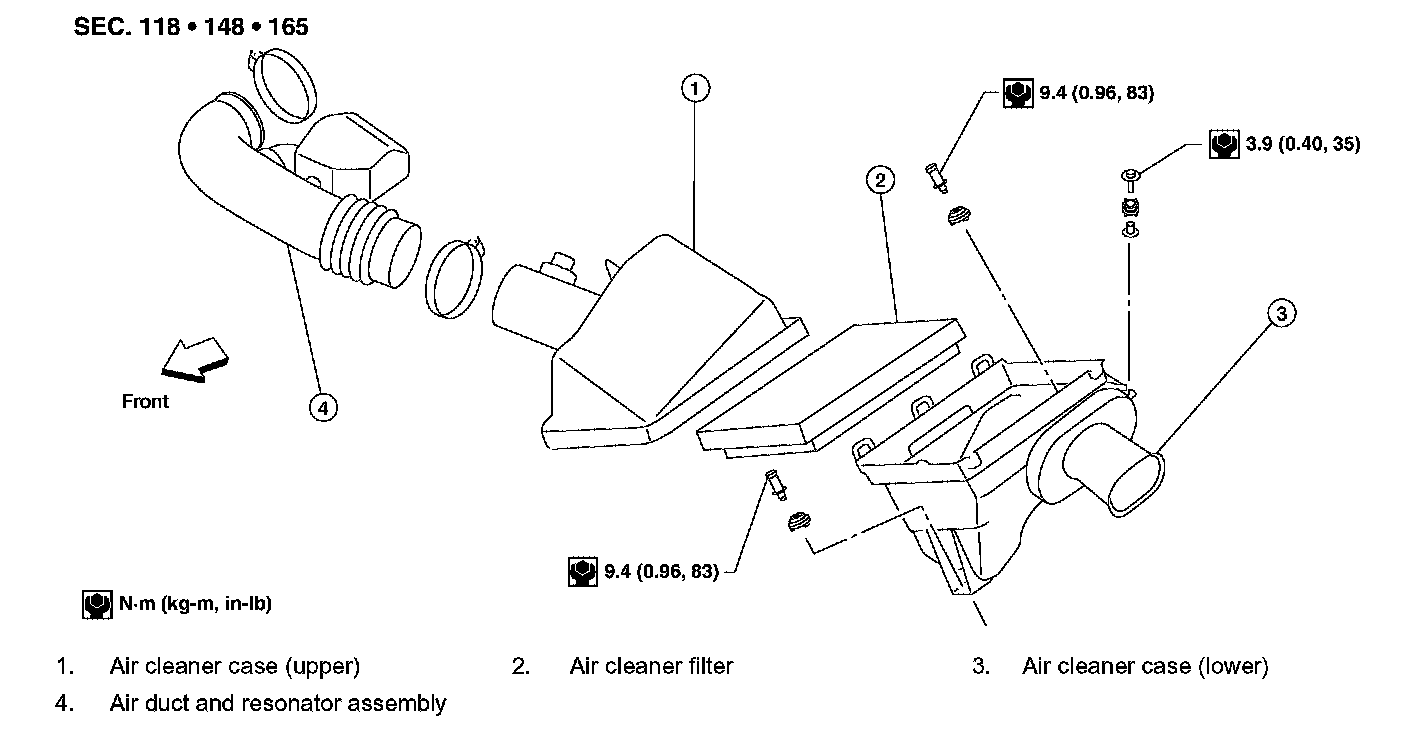

AIR CLEANER AND AIR DUCT REMOVAL 1.
Remove engine room cover using power tool.
2.
Disconnect harness connector from air cleaner case (upper).
3.
Remove air duct and resonator assembly (inlet), air cleaner case.
^
Add marks as necessary for easier installation.
INSTALLATION Installation is in the reverse order of removal.
