Component Tests and General Diagnostics
ConfigurationDescription
CONFIGURATION has two functions as follows:
- READ CONFIGURATION is the function to confirm vehicle configuration on current BCM.
- WRITE CONFIGURATION is the function to write vehicle configuration on BCM.
CAUTION:
- When replacing BCM, you must perform WRITE CONFIGURATION with CONSULT-II.
- Complete the procedure of WRITE CONFIGURATION in order.
- If you set incorrect WRITE CONFIGURATION, incidents will occur.
- Configuration is different for each vehicle model. Confirm configuration of each vehicle model.
READ CONFIGURATION PROCEDURE
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

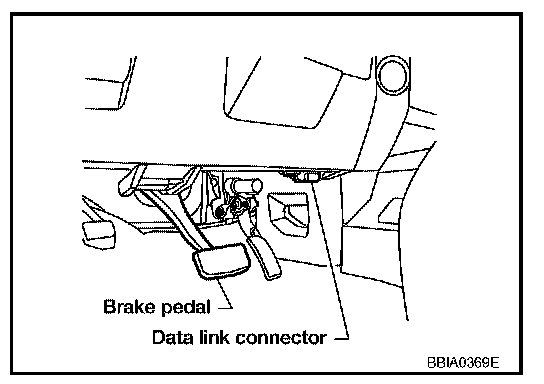

1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

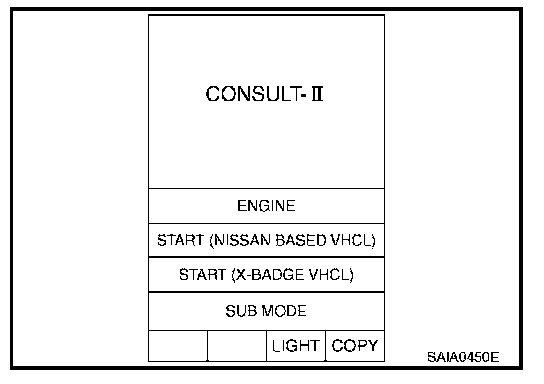

2. Touch "START (NISSAN BASED VHCL)".
3. Touch "BCM" on "SELECT ITEM" screen. If "BCM" is not indicated, go to General Information Section to check CONSULT II data link connector (DLC) circuit. Refer to "CONSULT-II Data Link Connector (DLC) Circuit". CONSULT-II Checking System

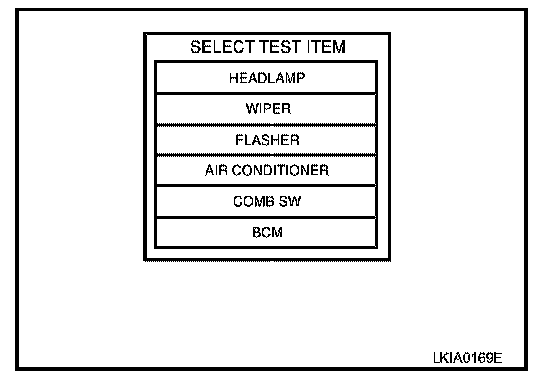

4. Touch "BCM" on "SELECT TEST ITEM" screen.

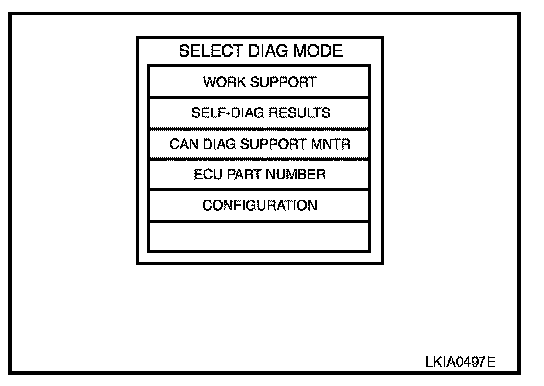

5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

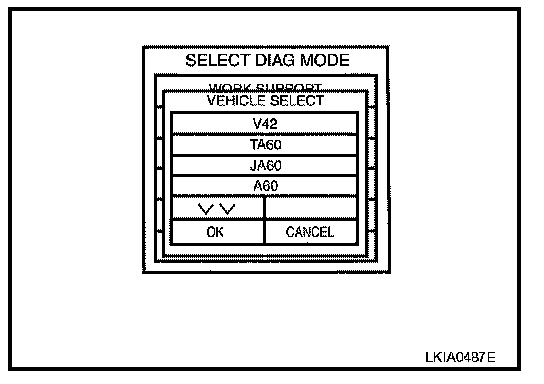

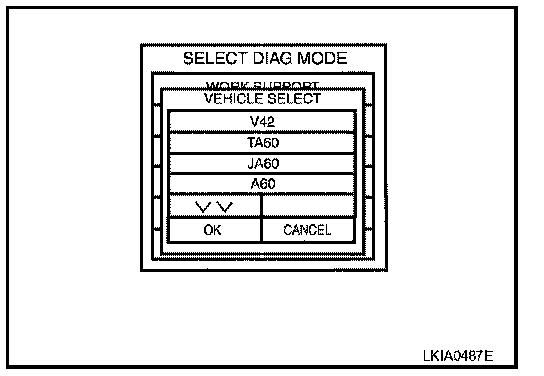

6. Touch "JA60" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
NOTE: Confirm vehicle model on IDENTIFICATION PLATE.

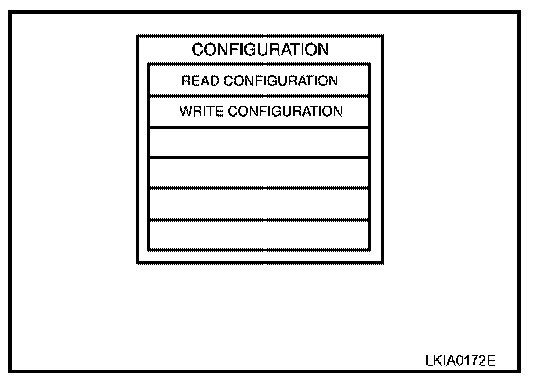

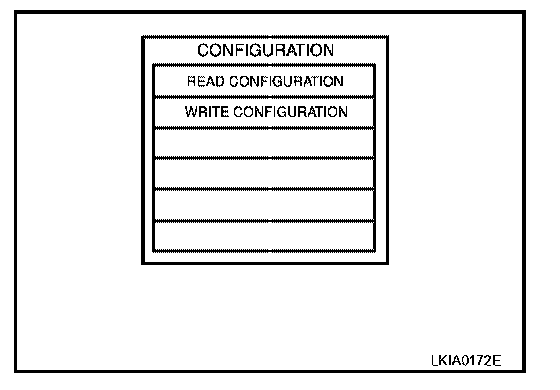

7. Touch "READ CONFIGURATION" on "CONFIGURATION" screen.

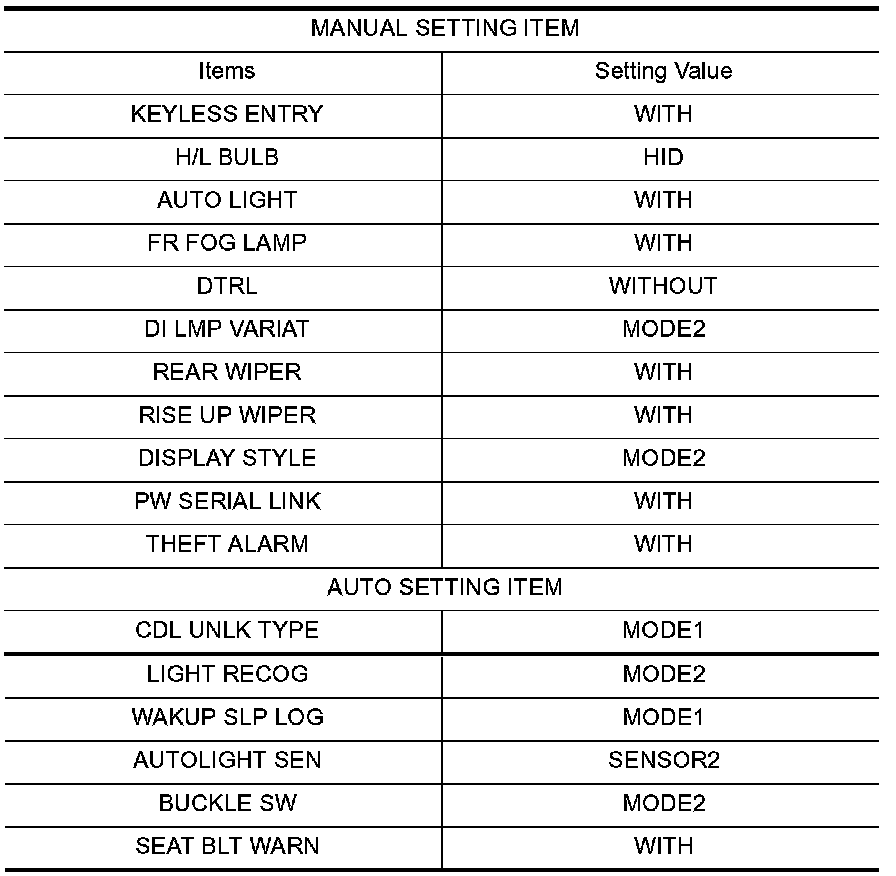

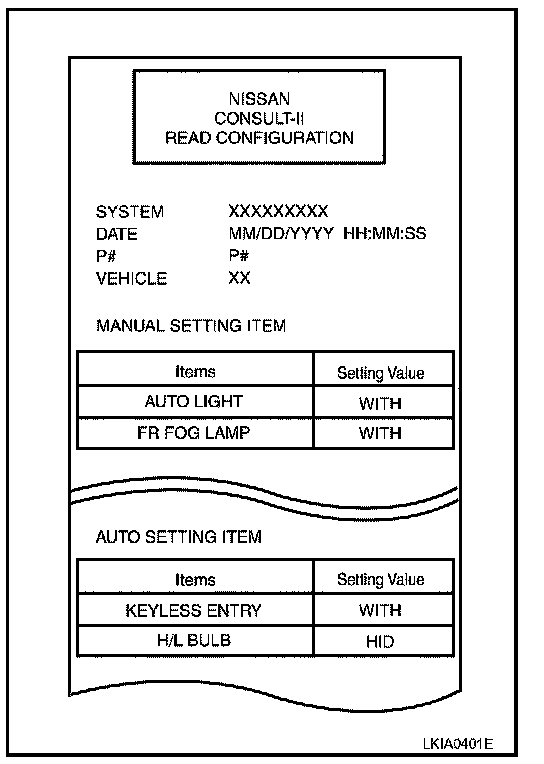

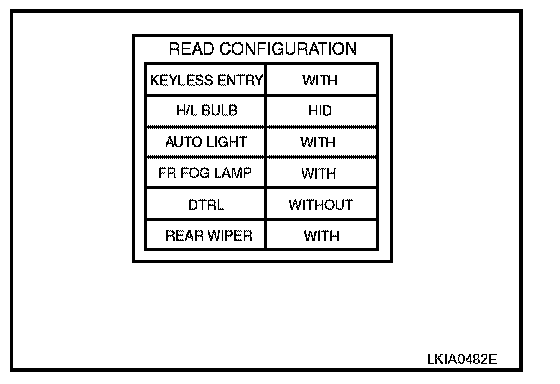

8. Configuration of current BCM is printed out automatically. Configuration of brand-new BCM before executing "WRITE CONFIGURATION" is as shown.
9. Touch "BACK" on "READ CONFIGURATION" screen.
WRITE CONFIGURATION PROCEDURE
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

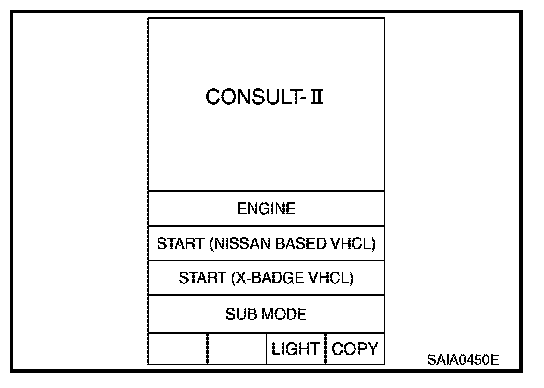

2. Touch "START (NISSAN BASED VHCL)".

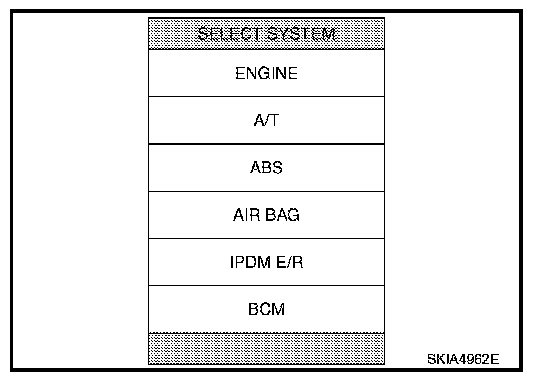

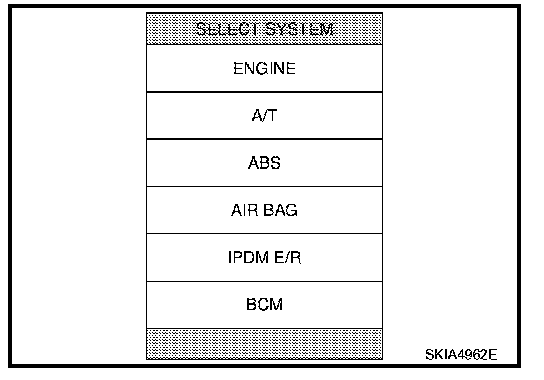

3. Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to LAN Section to check data link connector (DLC) circuit.

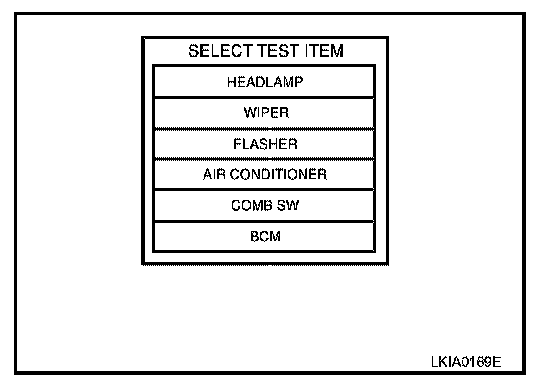

4. Touch "BCM" on "SELECT TEST ITEM" screen.
5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.
6. Touch "OTHER" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
NOTE: Confirm vehicle model on IDENTIFICATION PLATE.
7. Touch "WRITE CONFIGURATION" on "CONFIGURATION" screen.

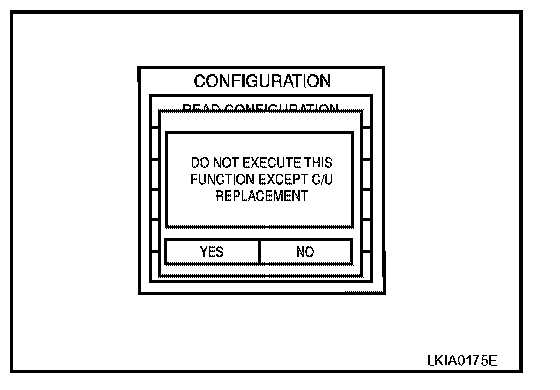

8. Touch YES".
For canceling, touch "NO".

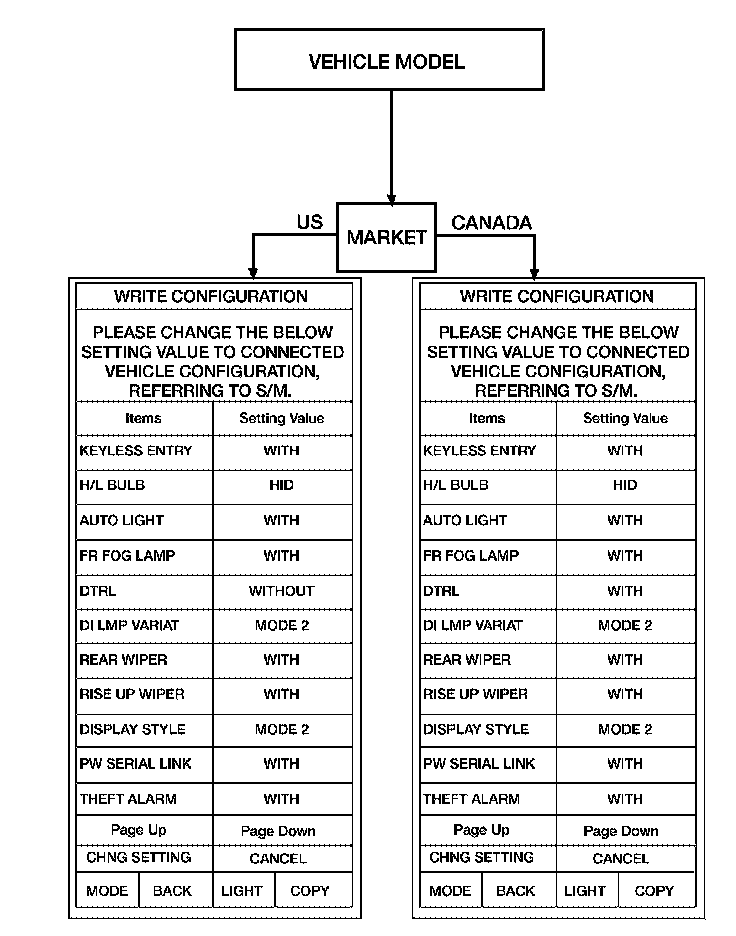

9. Using the following flow chart, identify the correct model and configuration list. Confirm and/or change setting value for each item according to the configuration list.
NOTE: Confirm vehicle model on IDENTIFICATION PLATE.
10. Touch "CHNG SETTING" on "WRITE CONFIGURATION" screen.
CAUTION: Make sure to touch "CHNG SETTING" even if the indicated configuration of brand-new BCM is same as the desirable configuration.
If not, configuration which is set automatically by selecting vehicle model cannot be memorized.

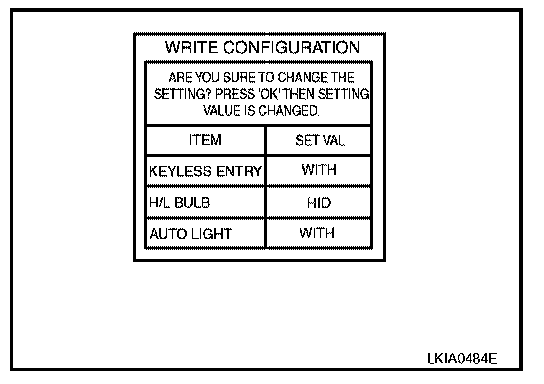

11. Touch "OK" on "WRITE CONFIGURATION" screen.
If "CANCEL" is touched, it will return to previous screen.

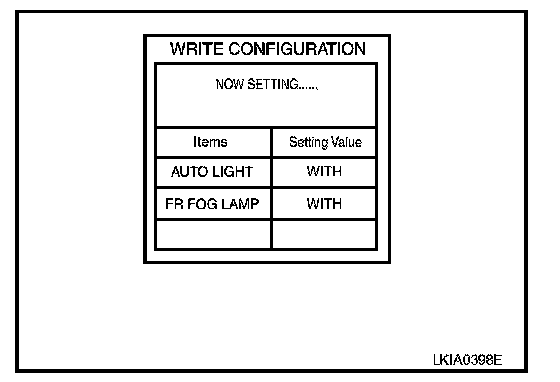

12. Wait until the next screen during setting.
13. WRITE CONFIGURATION results are printed out automatically.
Confirm "WRITE CONFIGURATION" is correctly executed by comparing sheet automatically printed out with applicable configuration list shown in step 9.
14. Touch "OK" on "WRITE CONFIGURATION" screen.
WRITE CONFIGURATION is completed.
