Fuel Level Sensor: Testing and Inspection

Electrical Components Inspection

FUEL LEVEL SENSOR UNIT CHECK
For removal, refer to "Removal and Installation". Fuel Pump

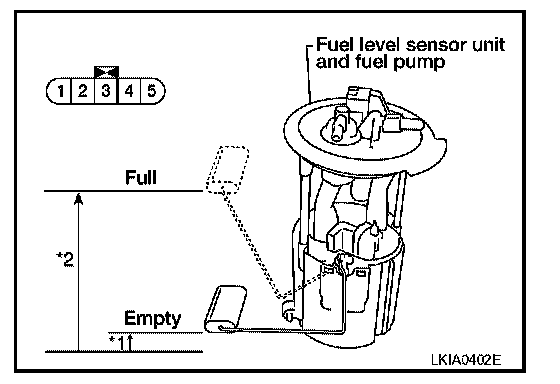

Check Fuel Level Sensor Unit and Fuel Pump

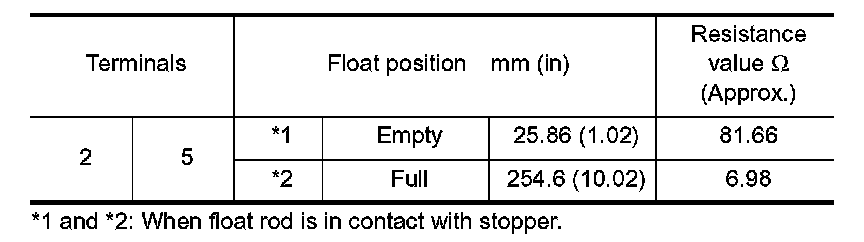

Check resistance between fuel level sensor unit and fuel pump connector terminals 2 and 5.
