Body Control Module: Service and Repair

BCM (BODY CONTROL MODULE)

Removal and Installation of BCM

REMOVAL

NOTE: If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to "Configuration".

1. Disconnect negative battery cable.
2. Remove instrument panel storage bin.
3. Remove instrument lower panel LH.
4. Disconnect switch assembly.

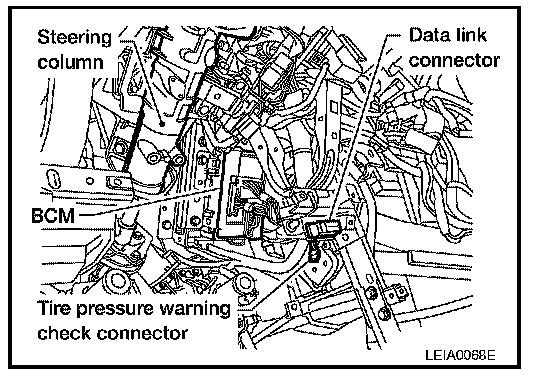

5. Remove screw and release BCM.
6. Disconnect connectors and then remove BCM.
