Data Monitor Mode

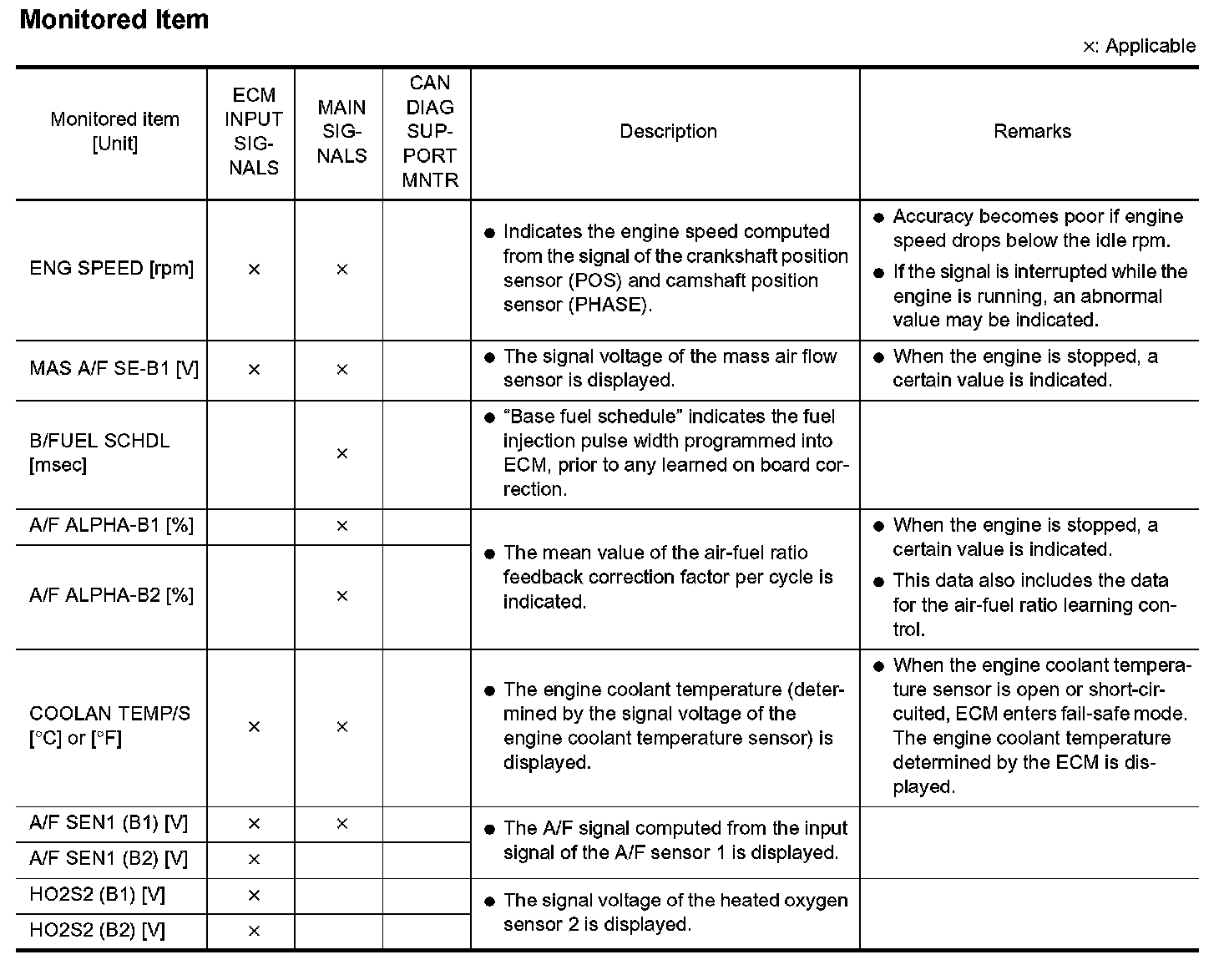

Data Monitor Mode Part 1:

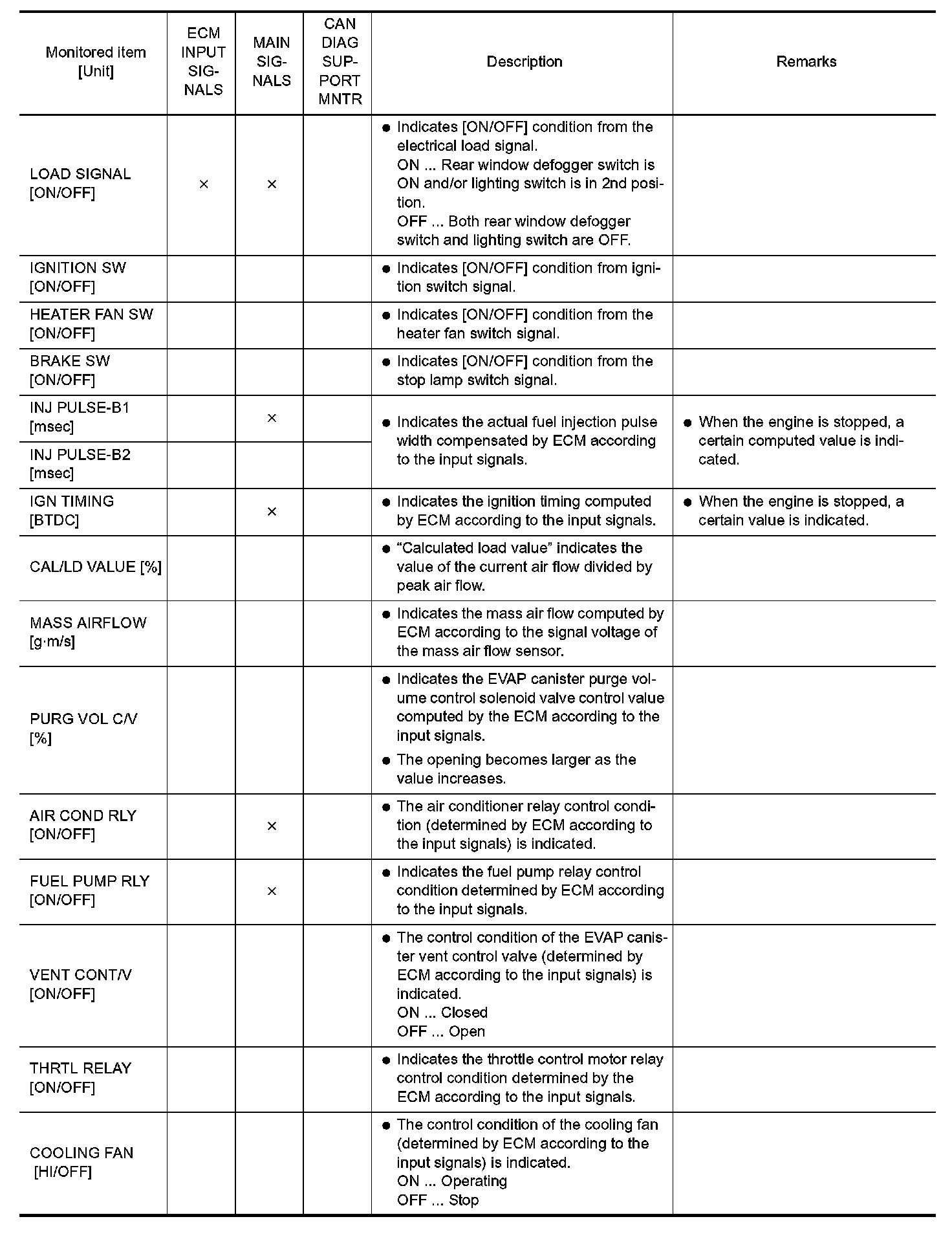

Data Monitor Mode Part 2:

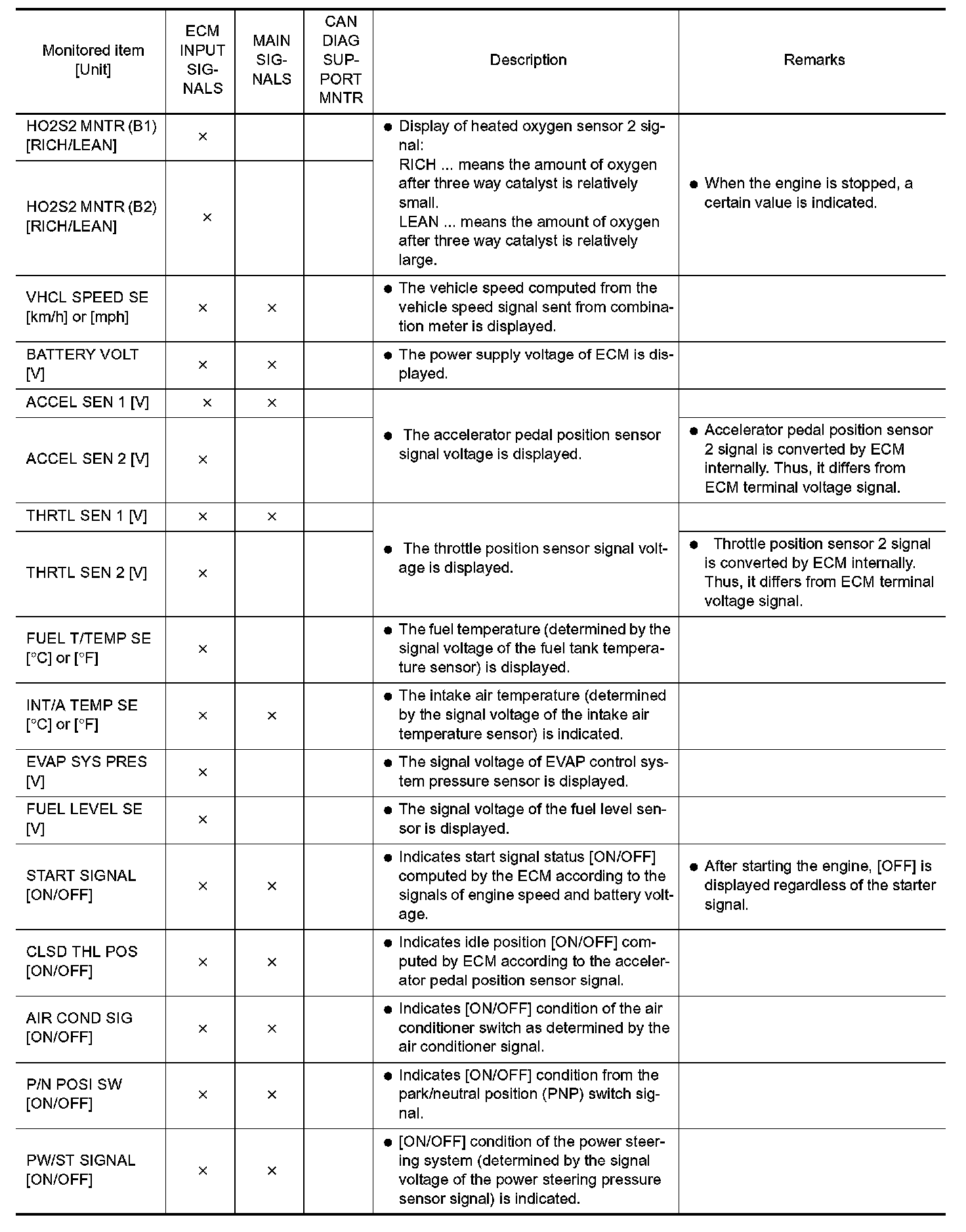

Data Monitor Mode Part 3:

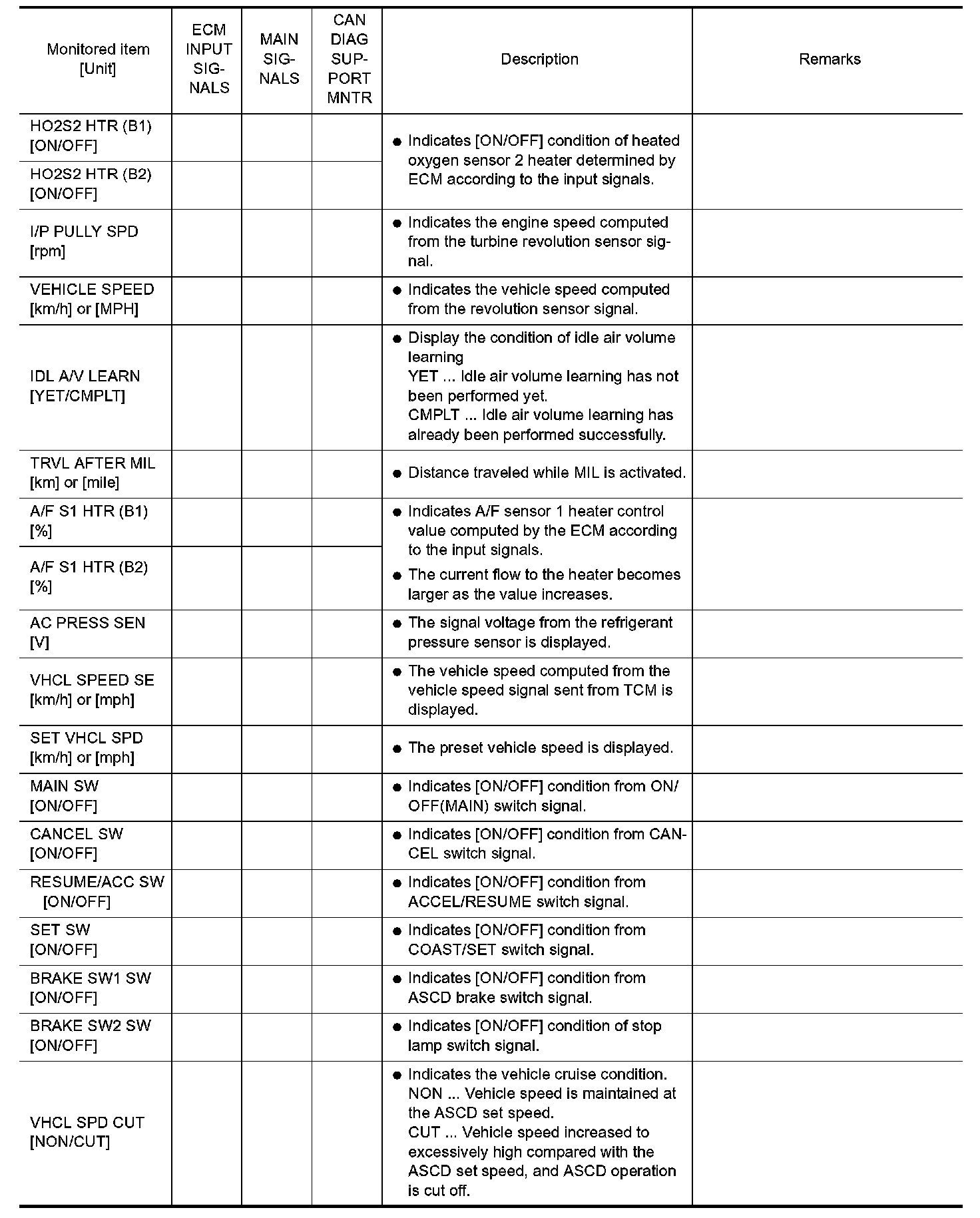

Data Monitor Mode Part 4:

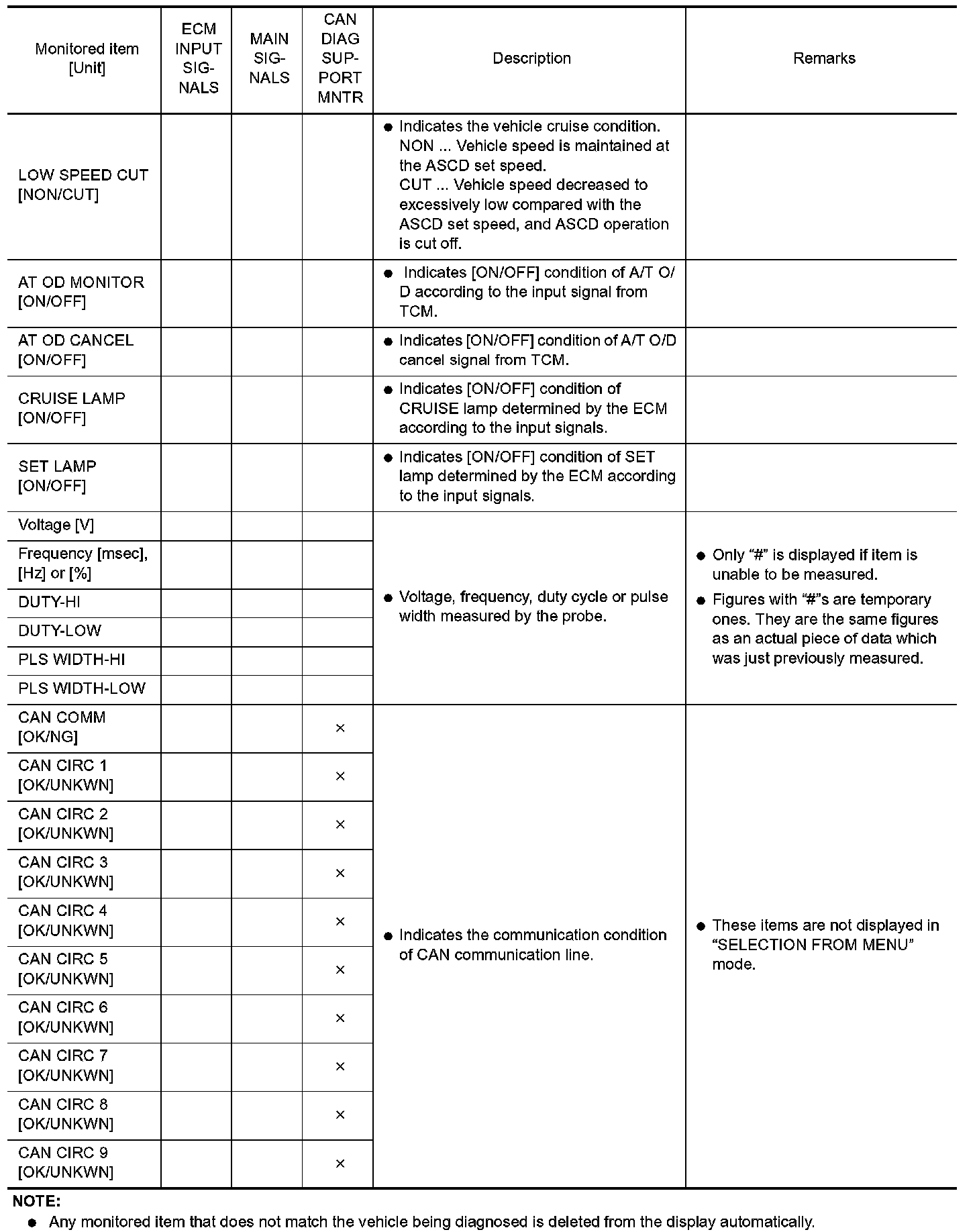

Data Monitor Mode Part 5:
