Control Valve

Control Valve

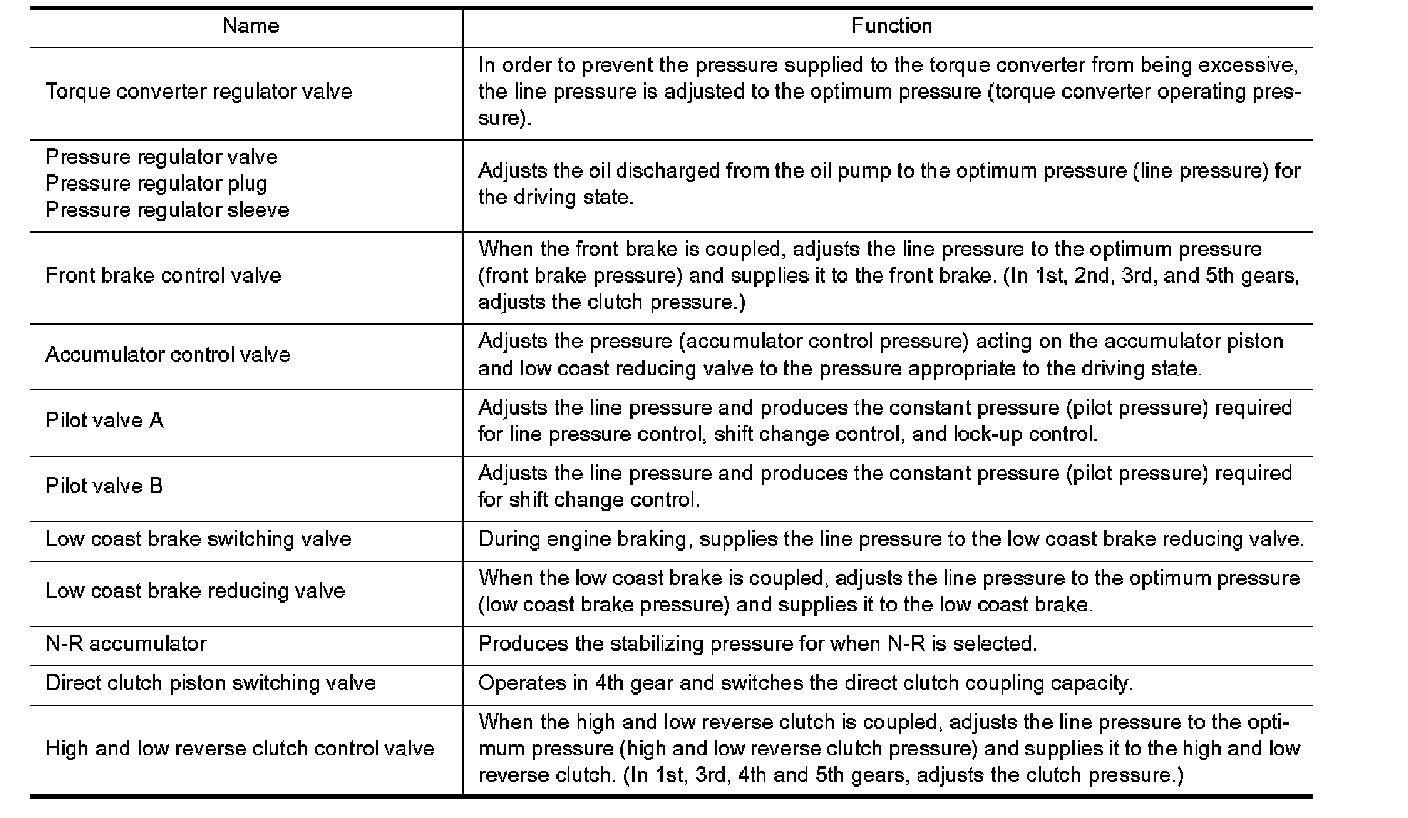

Part 1:

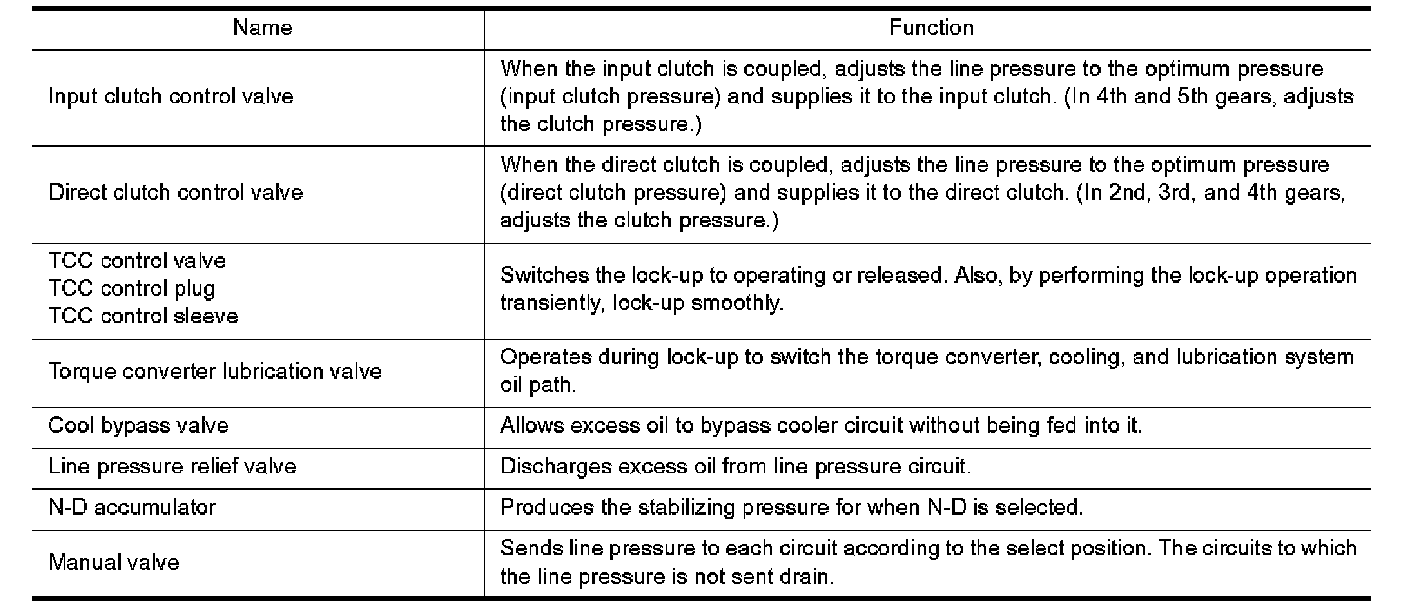

Part 2:





FUNCTION OF CONTROL VALVE

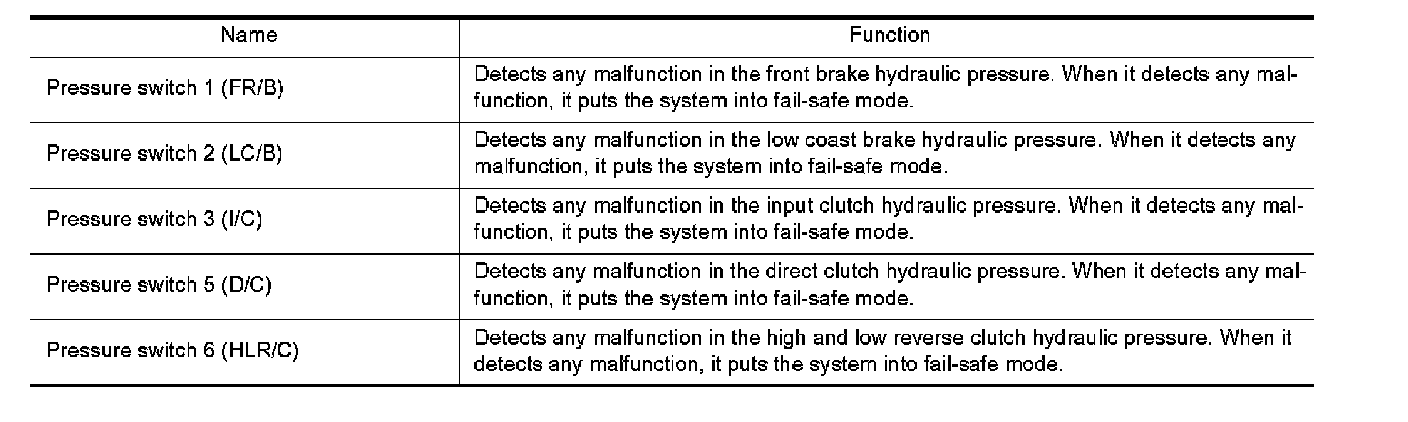

FUNCTION OF PRESSURE SWITCH
