Control Module: Service and Repair

TRANSFER CONTROL UNIT

Removal and Installation
REMOVAL
1. Turn ignition switch OFF and disconnect negative battery terminal.
2. Remove the glove box assembly.
3. Disconnect transfer control unit connectors.

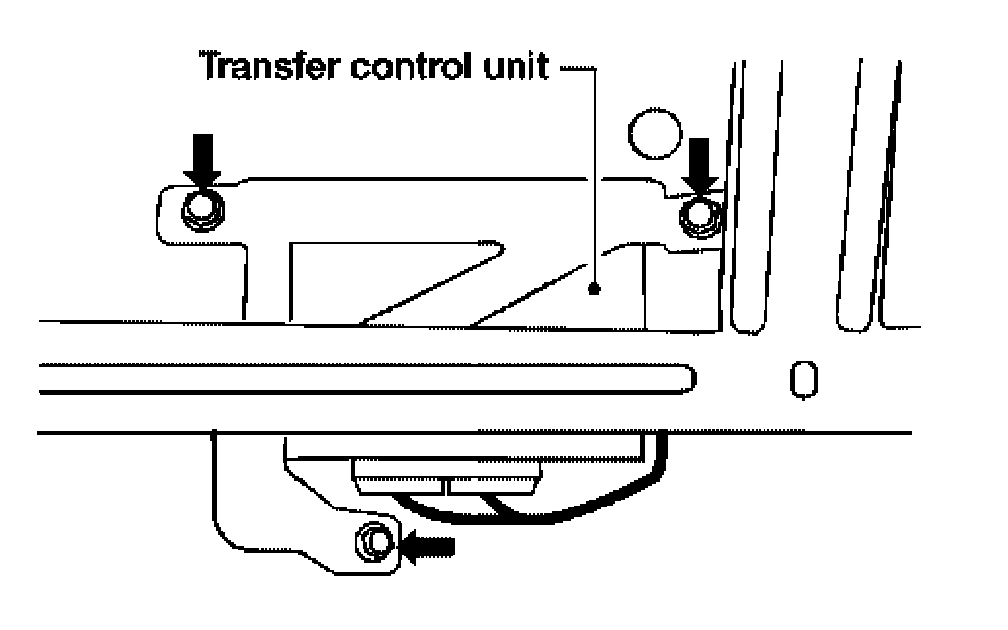

4. Remove the transfer control unit.

INSTALLATION
Installation is in the reverse order of removal.
^ When installing the transfer control unit, tighten bolts to the specified torque.
Transfer control unit bolts: 5.1 Nm (0.52 kg-m, 45 inch lbs.)
