Front Wheel Alignment

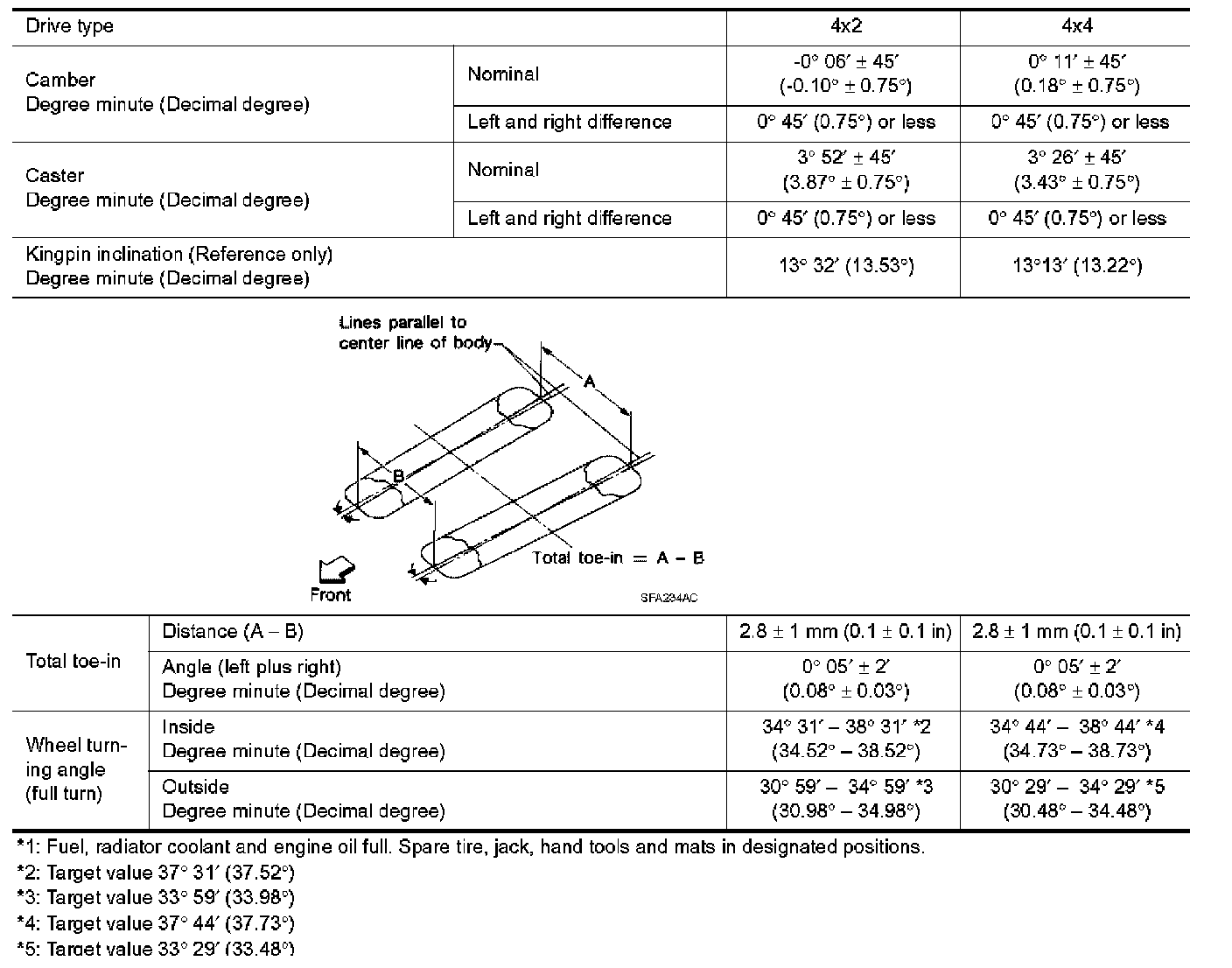

SERVICE DATA AND SPECIFICATIONS (SDS)





Wheel Alignment (Unladen*1)





Ride Height (Unladen*1)
