Rear Wheel Alignment
Rear Wheel Alignment

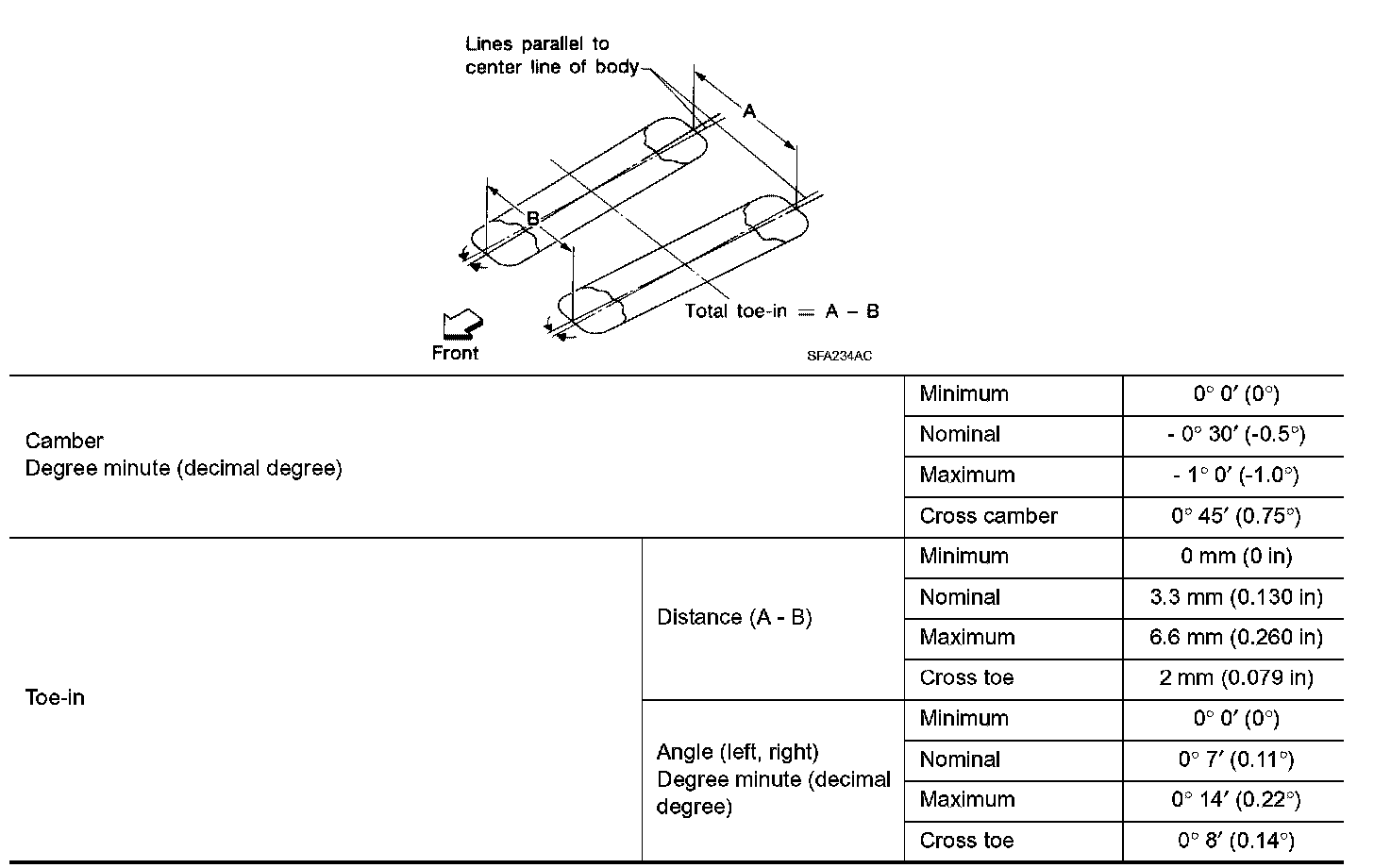

SERVICE DATA AND SPECIFICATIONS (SDS)
Wheel Alignment
Ride Height (Unladen*1)
