System Specifications

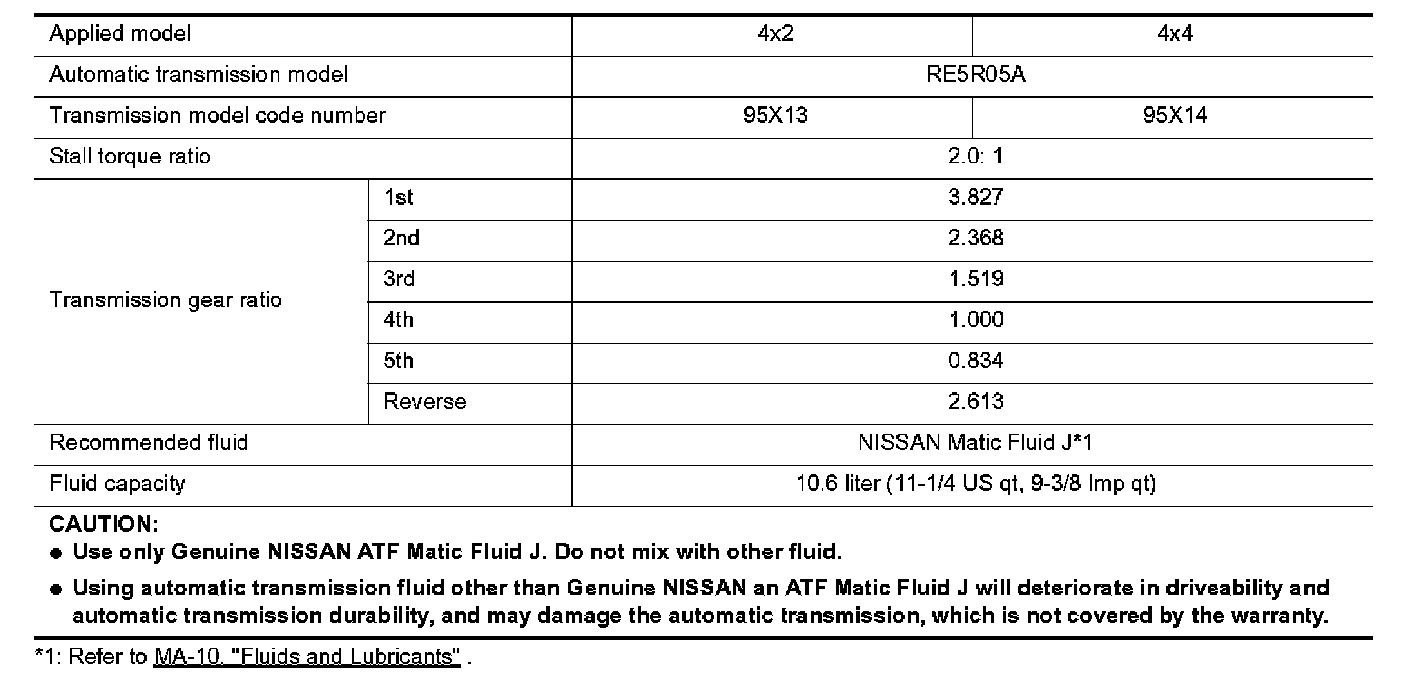

General Specifications:





General Specifications

Vehicle Speed When Shifting Gears

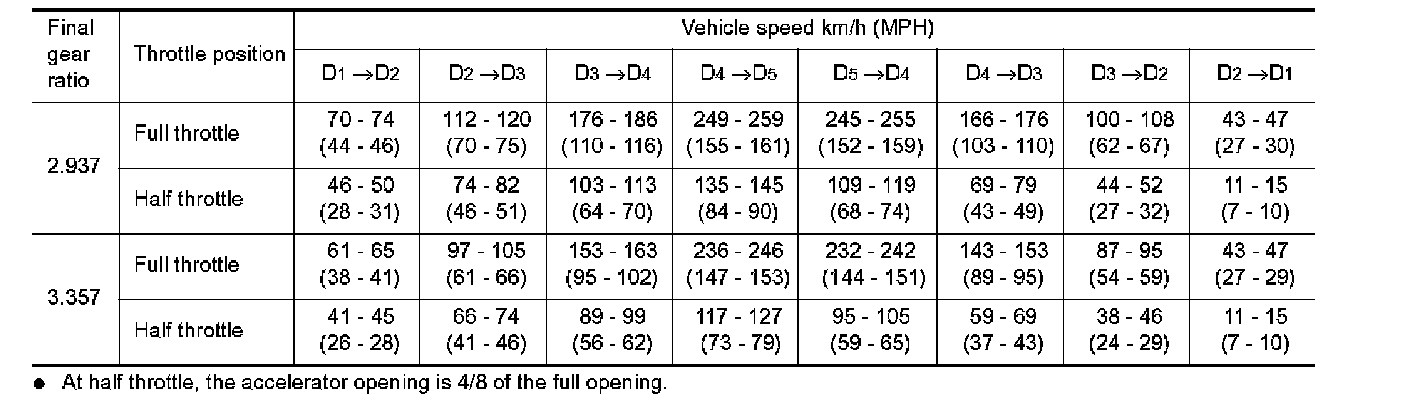

NORMAL MODE

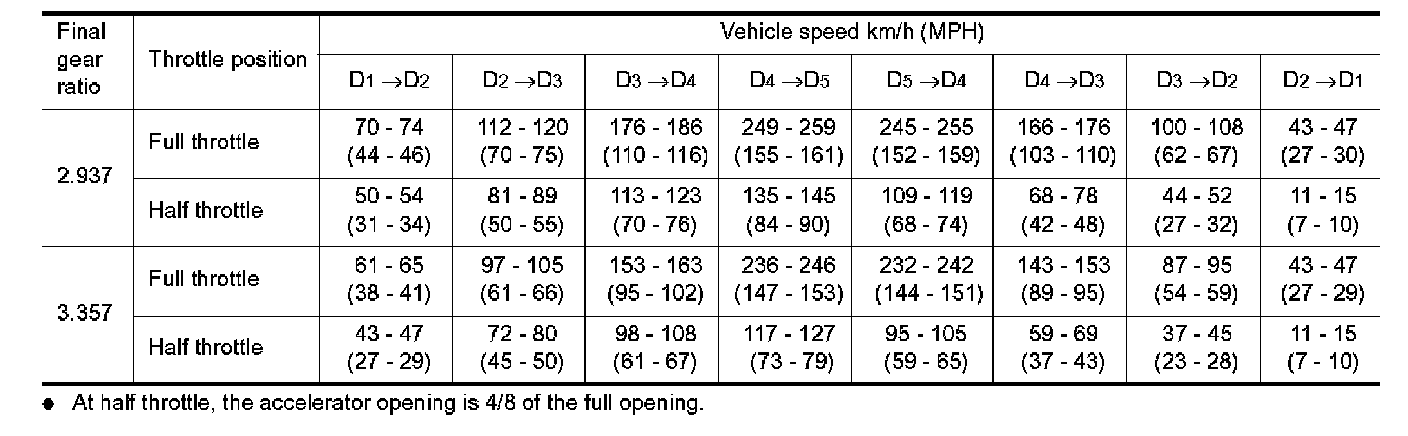

TOW MODE





Vehicle Speed When Performing and Releasing Complete Lock-up

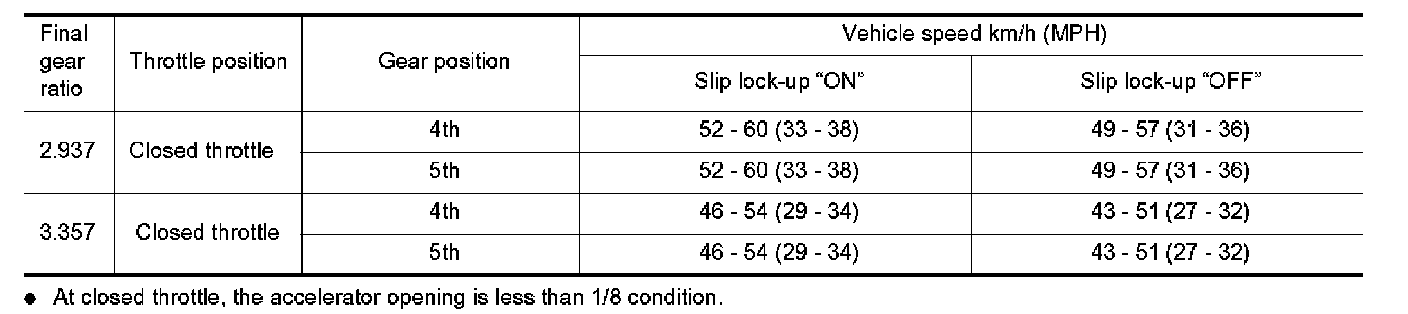

Vehicle Speed When Performing and Releasing Slip Lock-up





Stall Speed





A/T Fluid Temperature Sensor

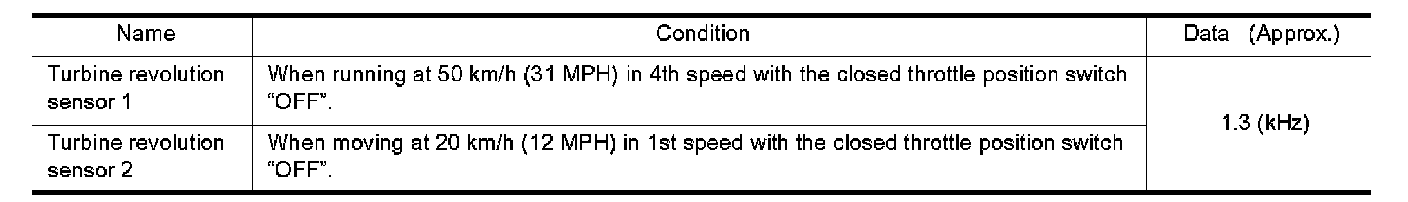

Turbine Revolution Sensor

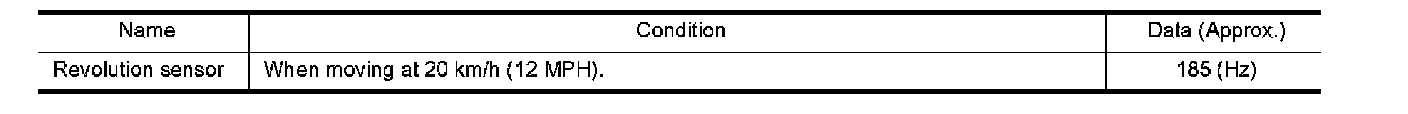

Vehicle Speed Sensor A/T (Revolution Sensor)

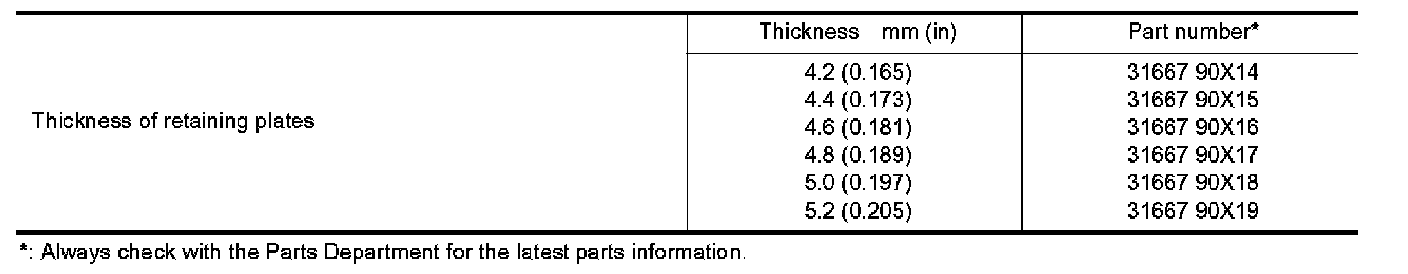

Reverse brake





Total End Play

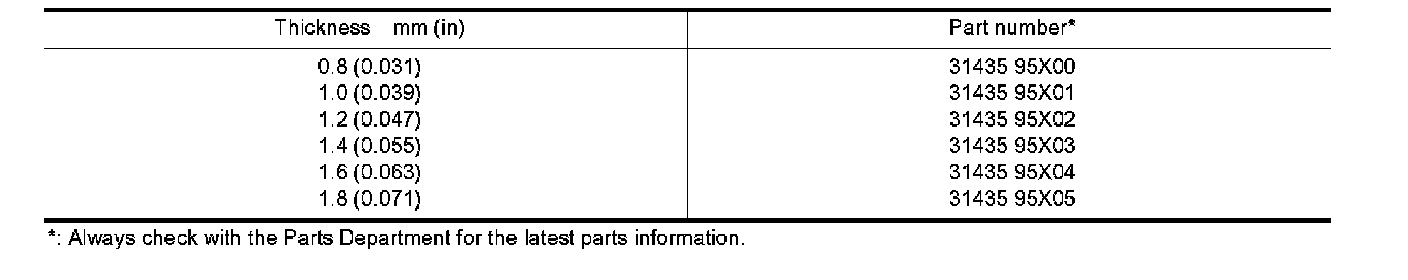

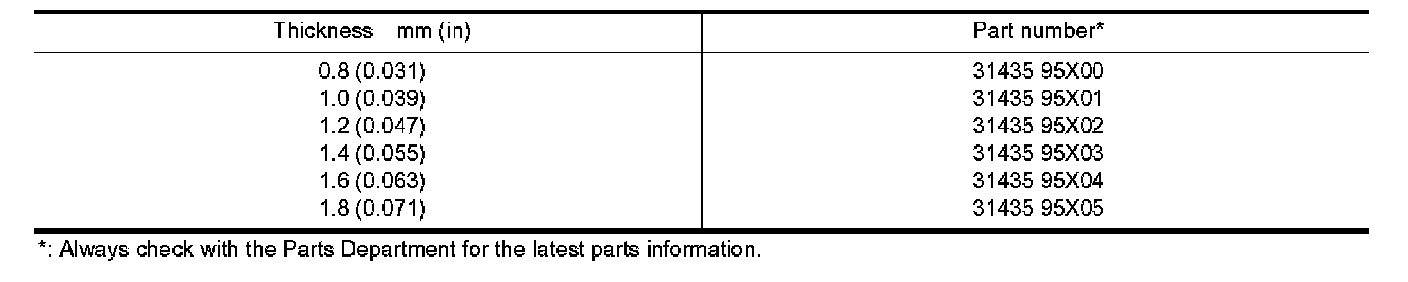

BEARING RACE FOR ADJUSTING TOTAL END PLAY
