System Specifications

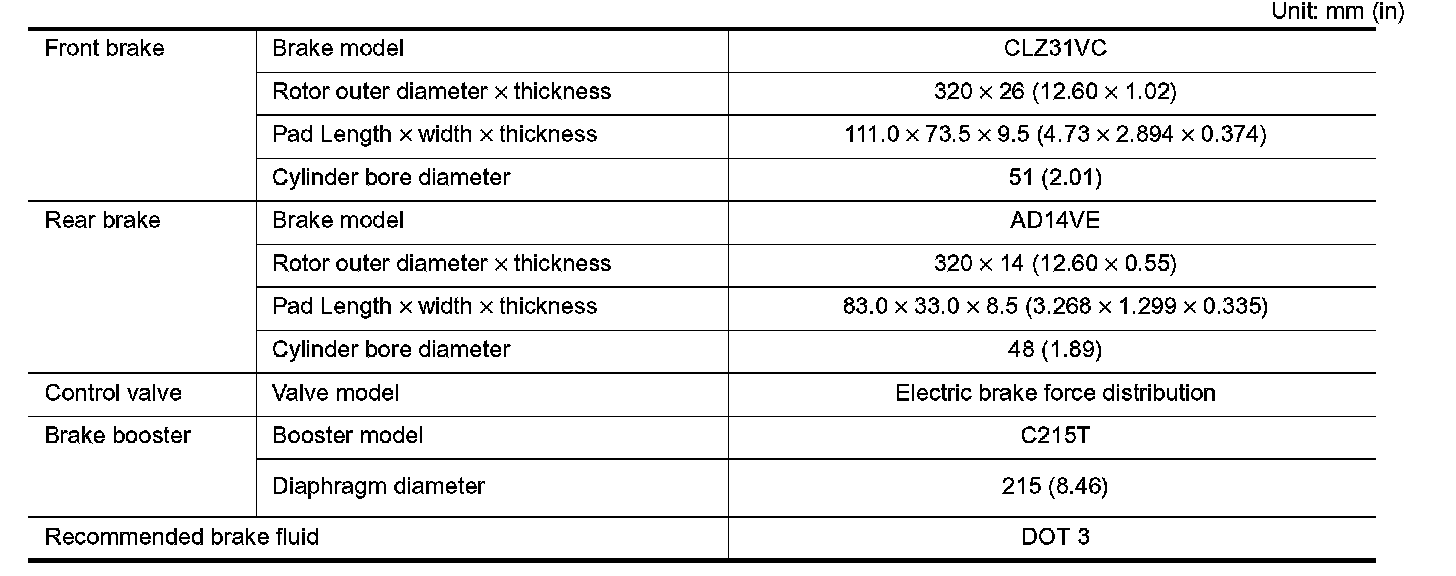

General Specifications

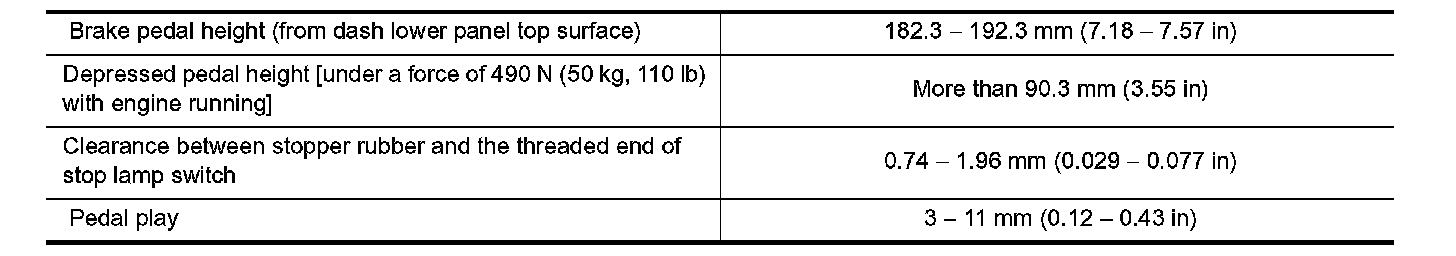

Brake Pedal





Brake Booster





Check Valve

Front Disc Brakes:

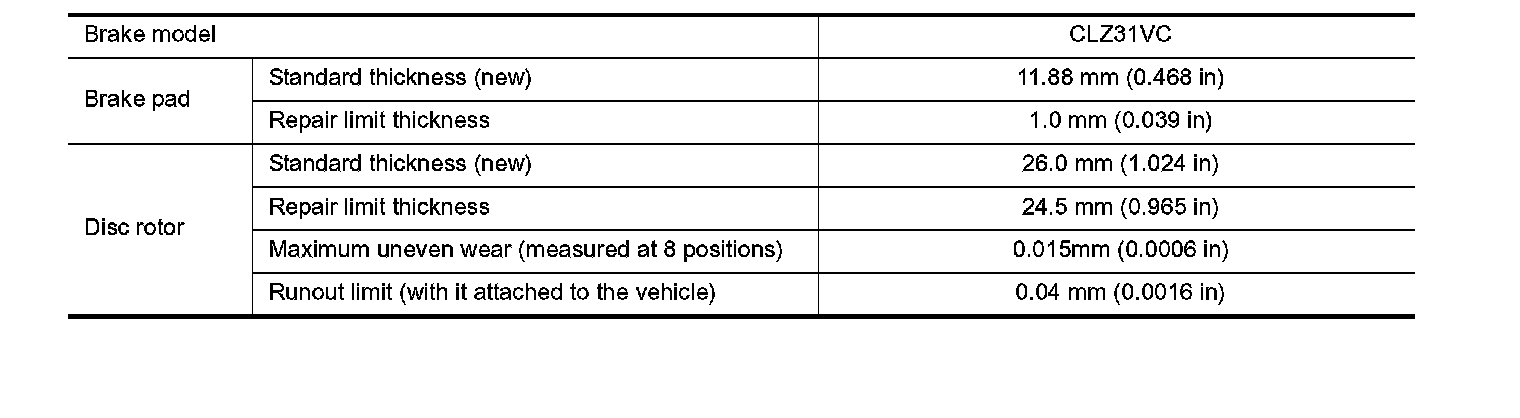

Front Disc Brake

Rear Disc Brakes:

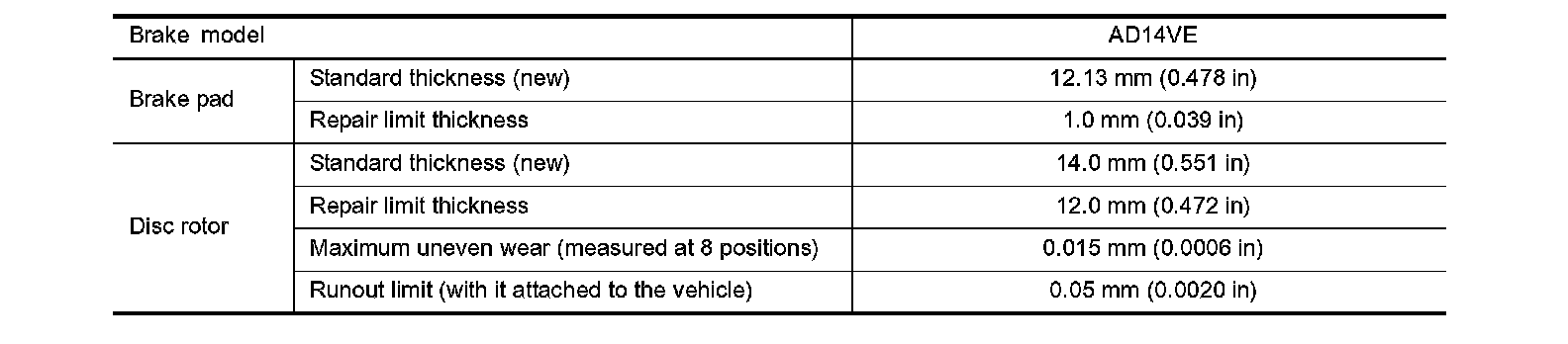

Rear Disc Brake
