Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
Front
Front

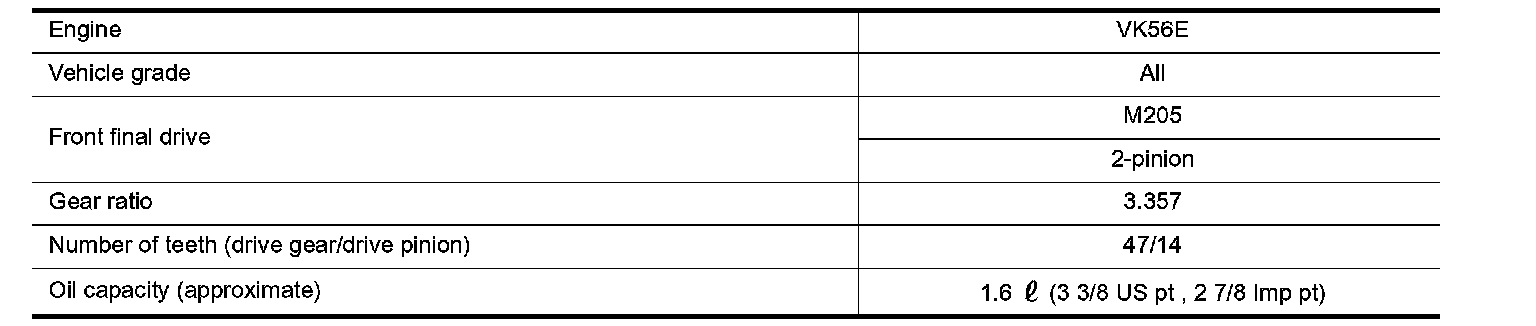

General Specifications

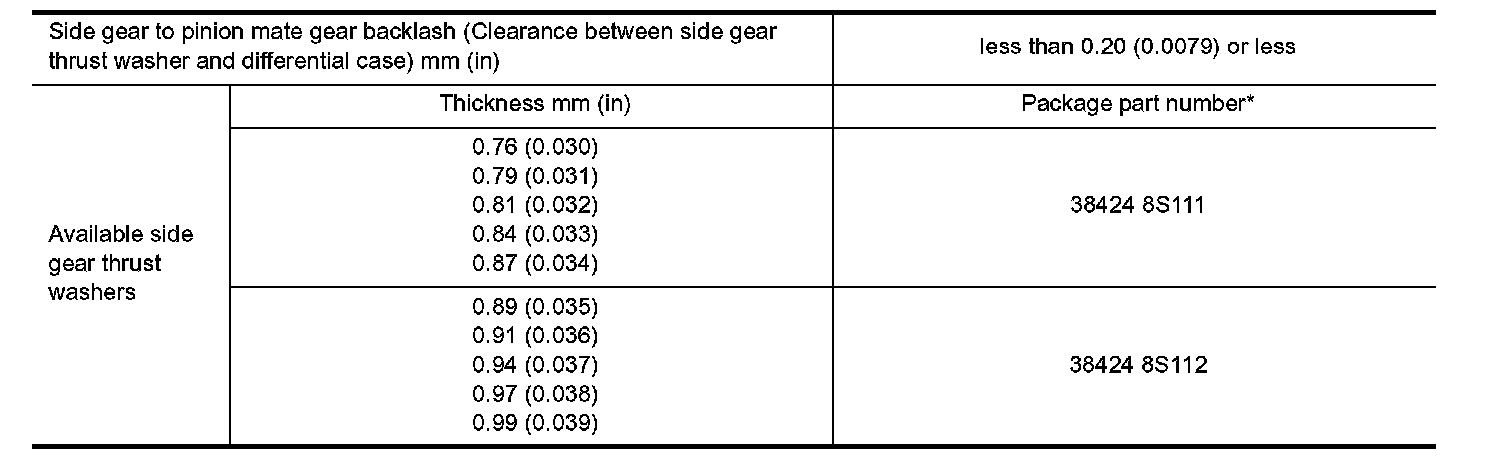

Side Gear Adjustment

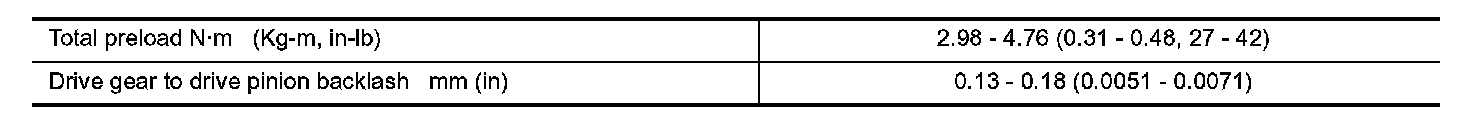

Total Preload Adjustment

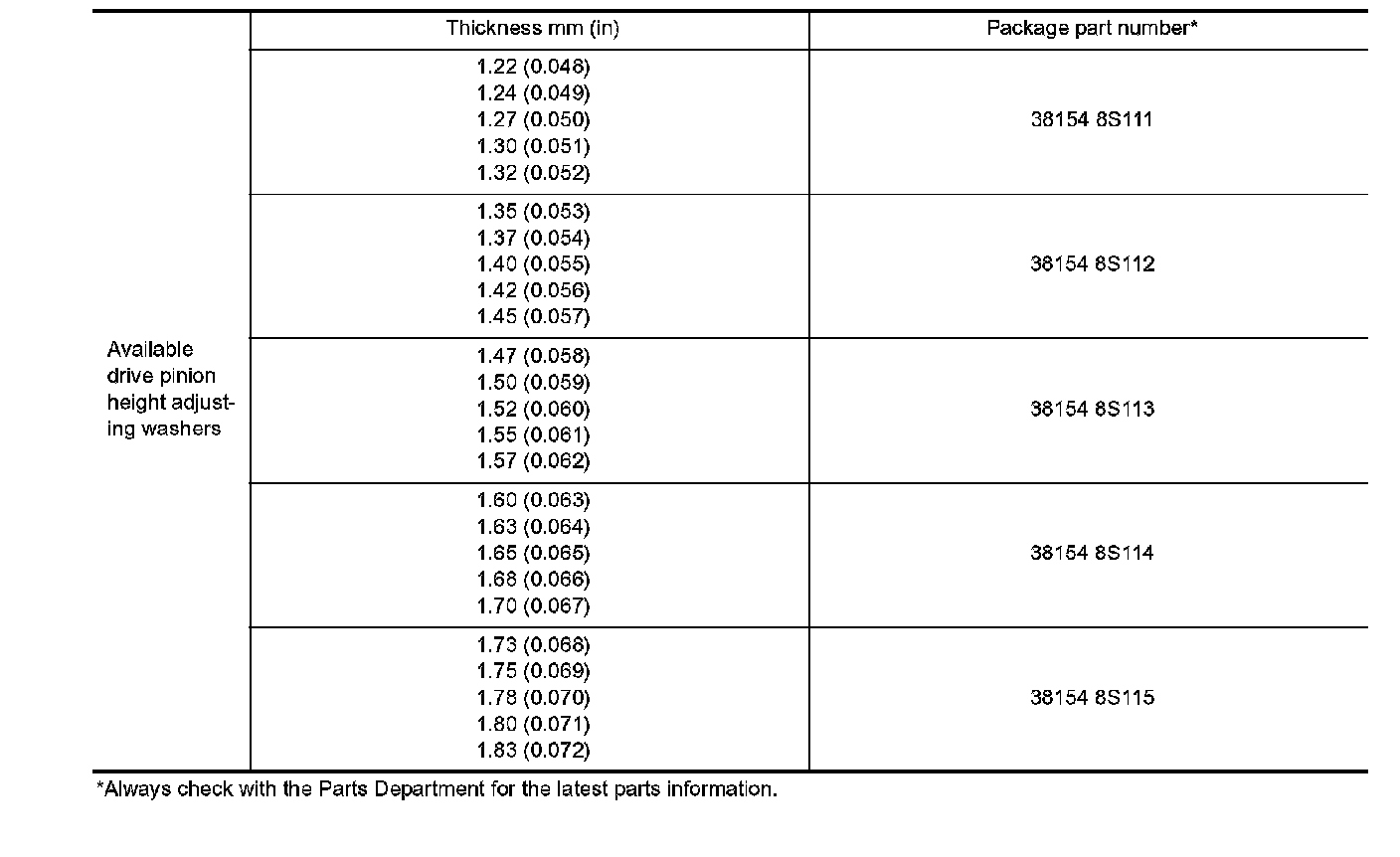

Drive Pinion Height Adjustment
