Timing Chain

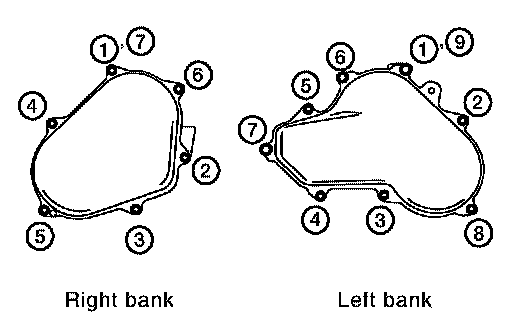

Part 1:

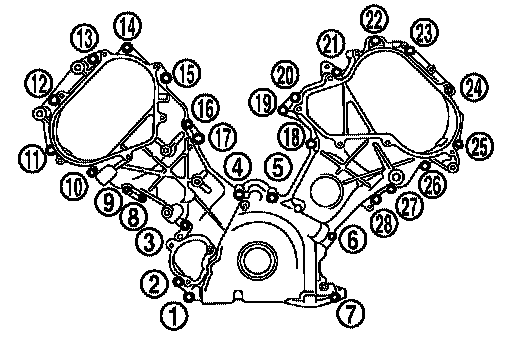

Part 2:





Timing Chain








Install bolts in numerical order shown
M6 x 50 mm (1.97 inch): No.1, 20, 25, 26, 27
M6 x 80 mm (3.15 inch): NO.4, 5, 7
M6 x 20 mm (0.79 inch): Except the above
