Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2004
>>
QX56 V8-5.6L (VK56DE)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Front Wiper and Washer System
>>
Control Module Pinout Values
>>
Terminals and Reference Value For BCM
Terminals and Reference Value For BCM

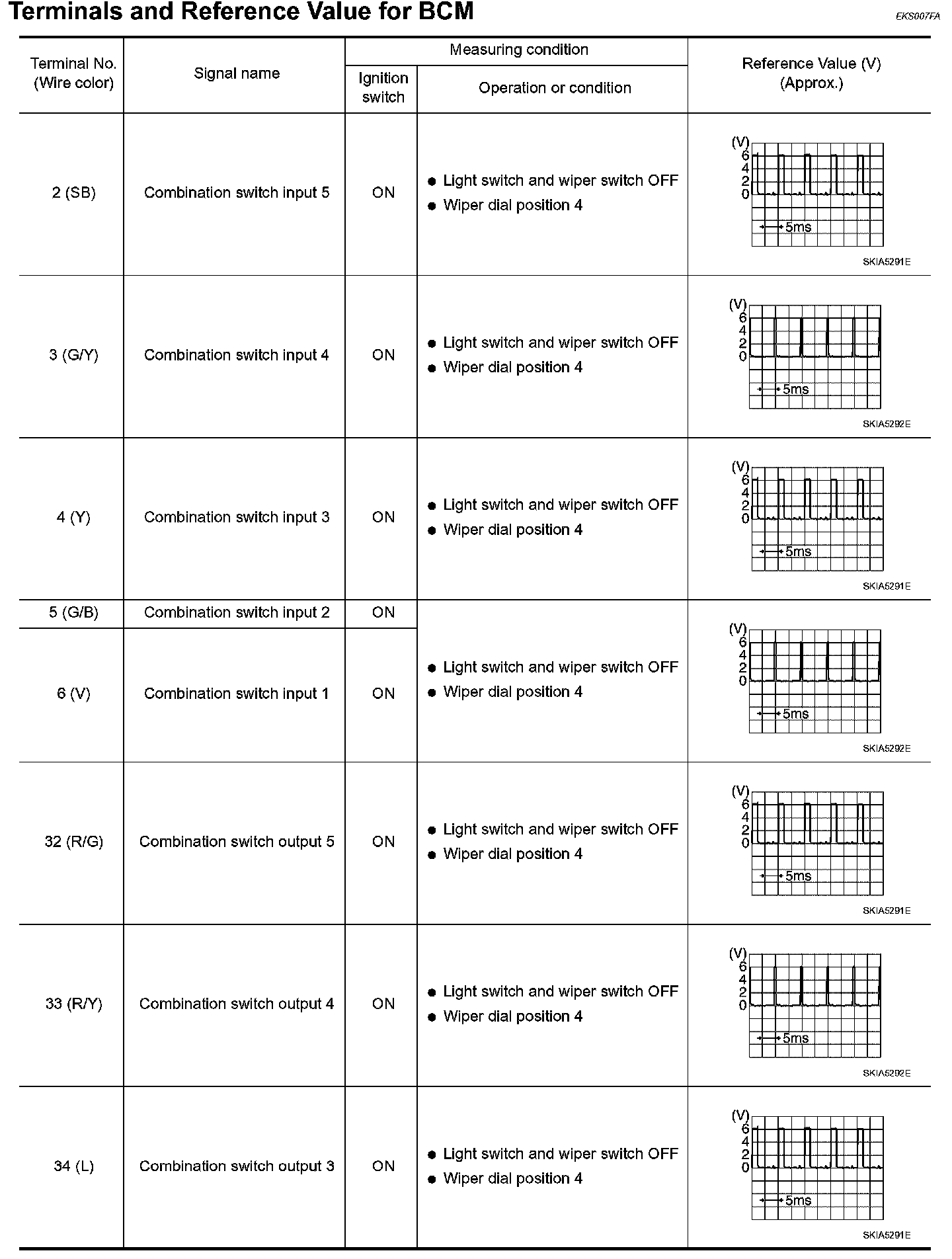

Terminals And Reference Value For BCM Part 1:

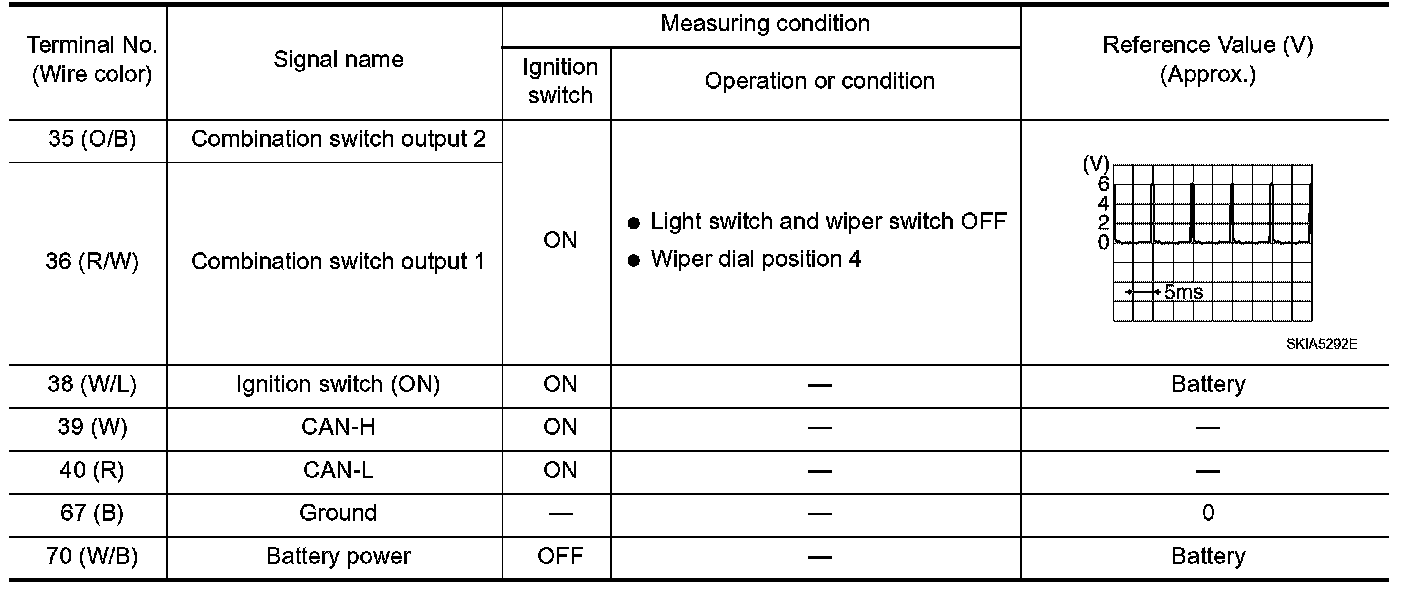

Terminals And Reference Value For BCM Part 2:
