Heater Core: Service and Repair

HEATER CORE




Removal and Installation

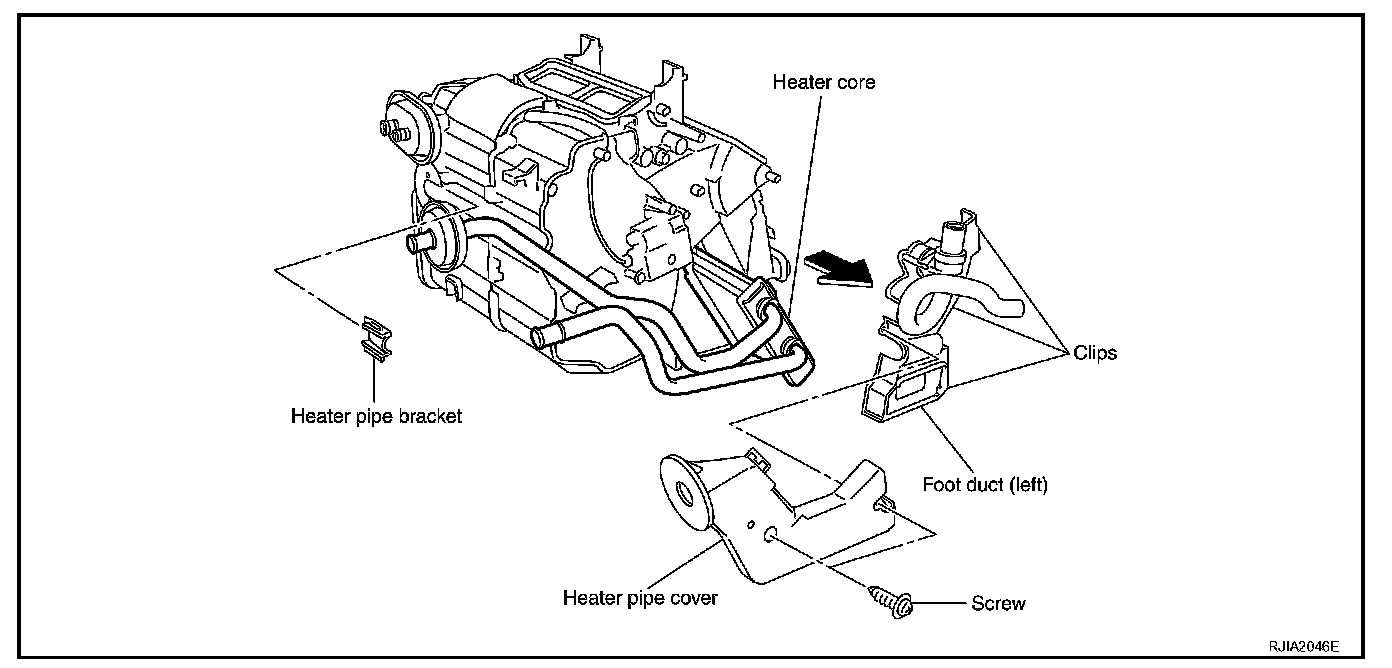

REMOVAL
1. Remove heater & cooling unit. Refer to "HEATER & COOLING UNIT ASSEMBLY". Service and Repair
2. Remove foot duct (left). Refer to "Removal of Foot Ducts".
3. Remove heater pipe cover.
4. Remove heater pipe support and heater pipe grommet.
5. Slide heater core to driver side.

INSTALLATION
Installation is basically the reverse order of removal.
