CONSULT-II Inspection Procedure For IPDM E/R

CONSULT-II INSPECTION PROCEDURE FOR "IPDM E/R"

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

"IPDM E/R"
1. Turn ignition switch "OFF".




2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.
3. Turn ignition switch "ON".




4. Touch "START(NISSAN BASED VHCL)".

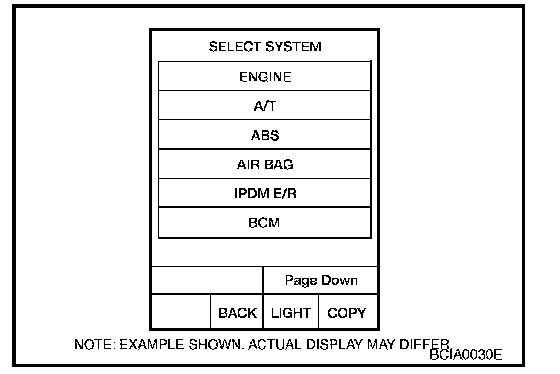

5. Touch "IPDM E/R".
If "IPDM E/R" is not indicated, go to GI-38, "CONSULT-II Data Link Connector (DLC) Circuit". Data Link Connector Schematic




6. Select diagnosis mode. "SELF-DIAG RESULTS", "DATA MONITOR" and "ACTIVE TEST" are available.
