Home >> Infiniti >> 2005 >> G35 Coupe V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Component Tests and General Diagnostics >> Vehicle Speed Signal Check

Vehicle Speed Signal Check

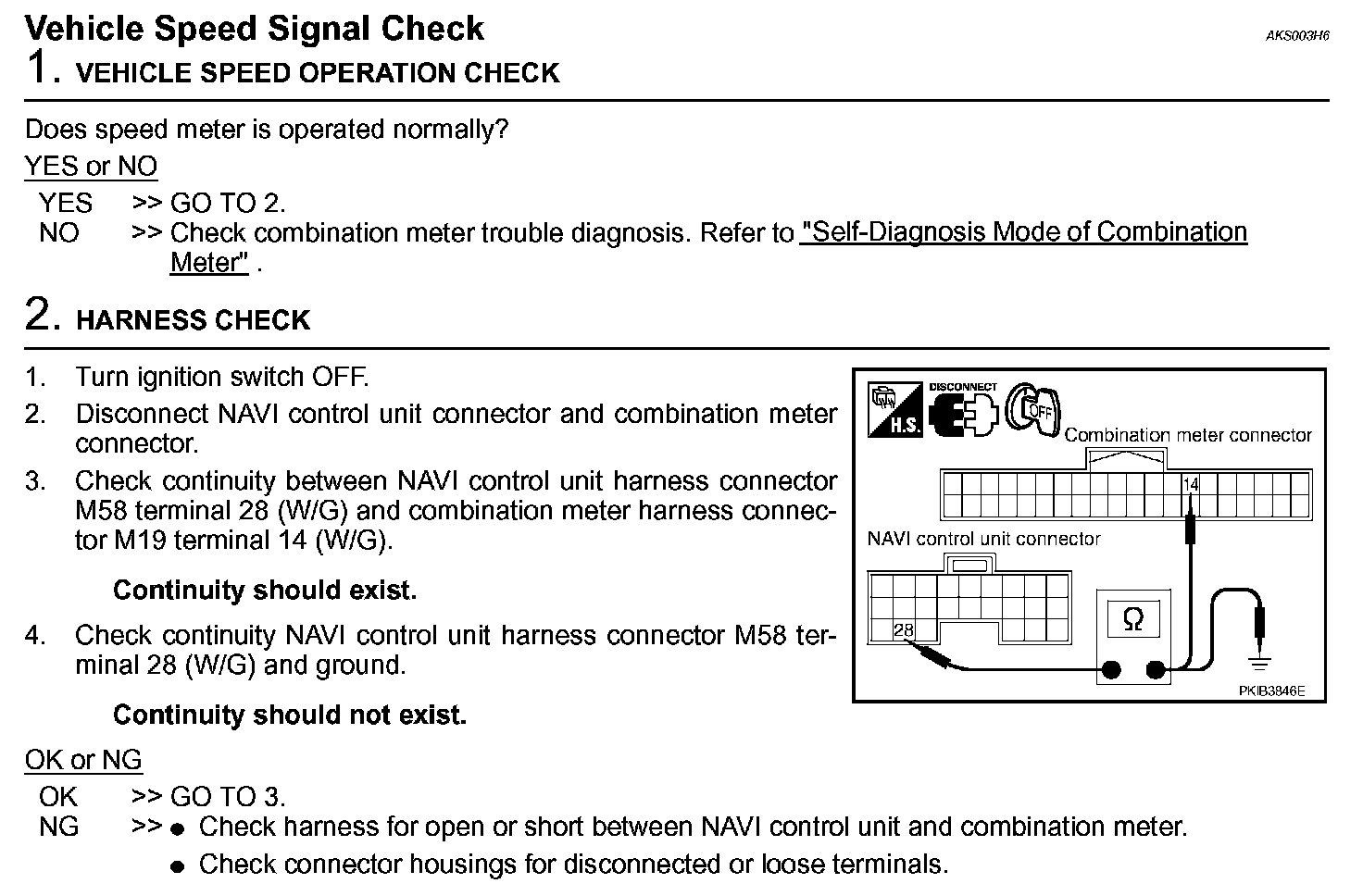

Vehicle Speed Signal Check (Steps 1 - 2):

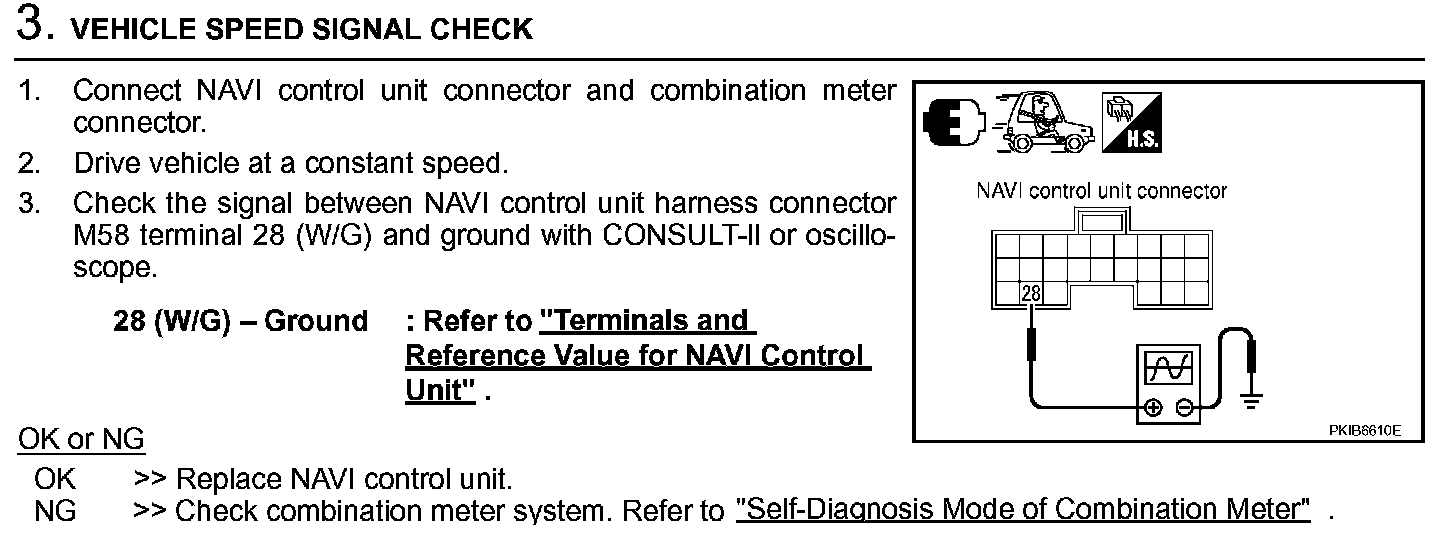

Vehicle Speed Signal Check (Step 3):
