Terminals and Reference Value For Audio Unit For Base System
Terminals and Reference Value For Audio Unit For Base System

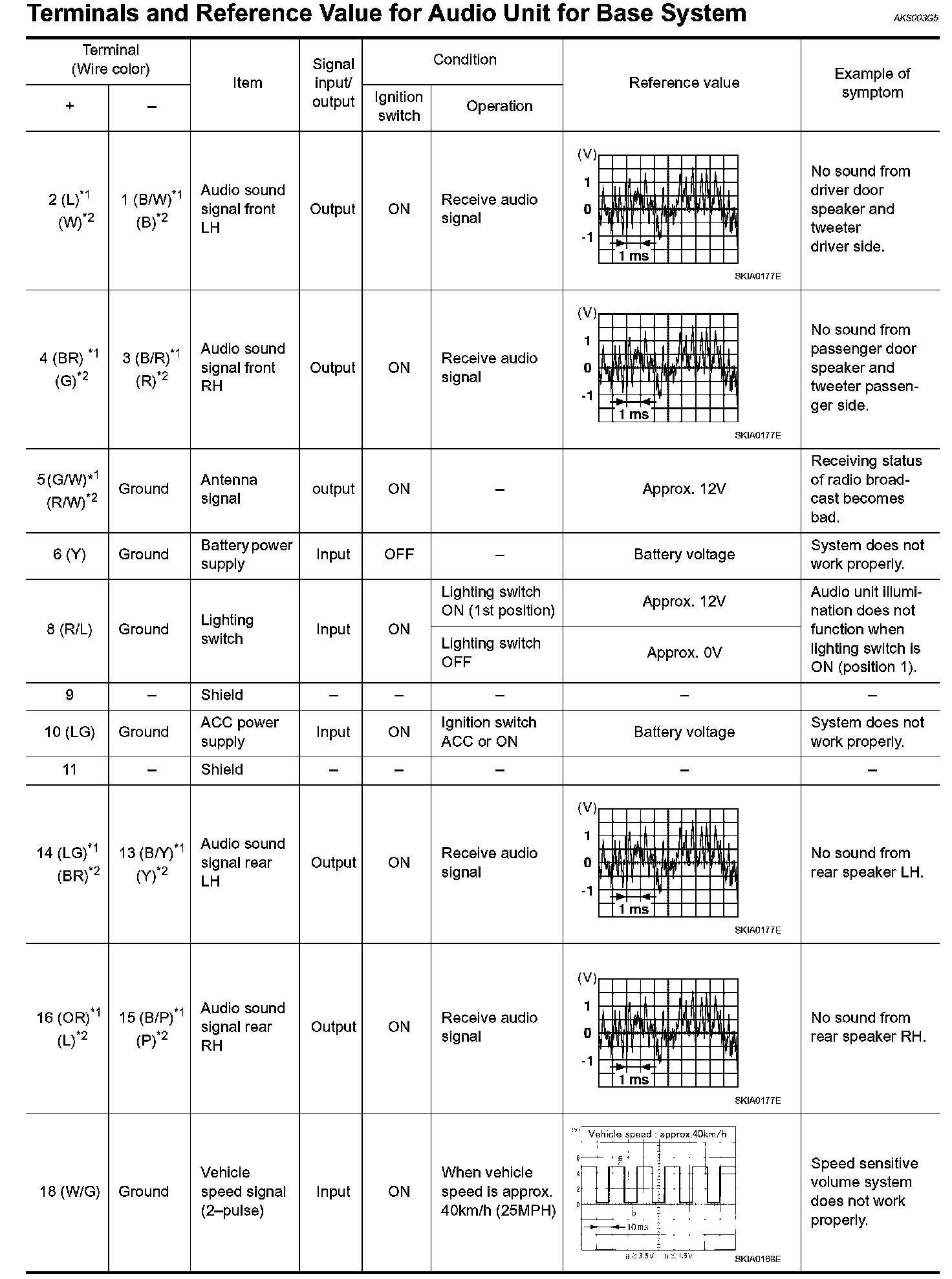

Terminals And Reference Value For Audio Unit For Base System Part 1:

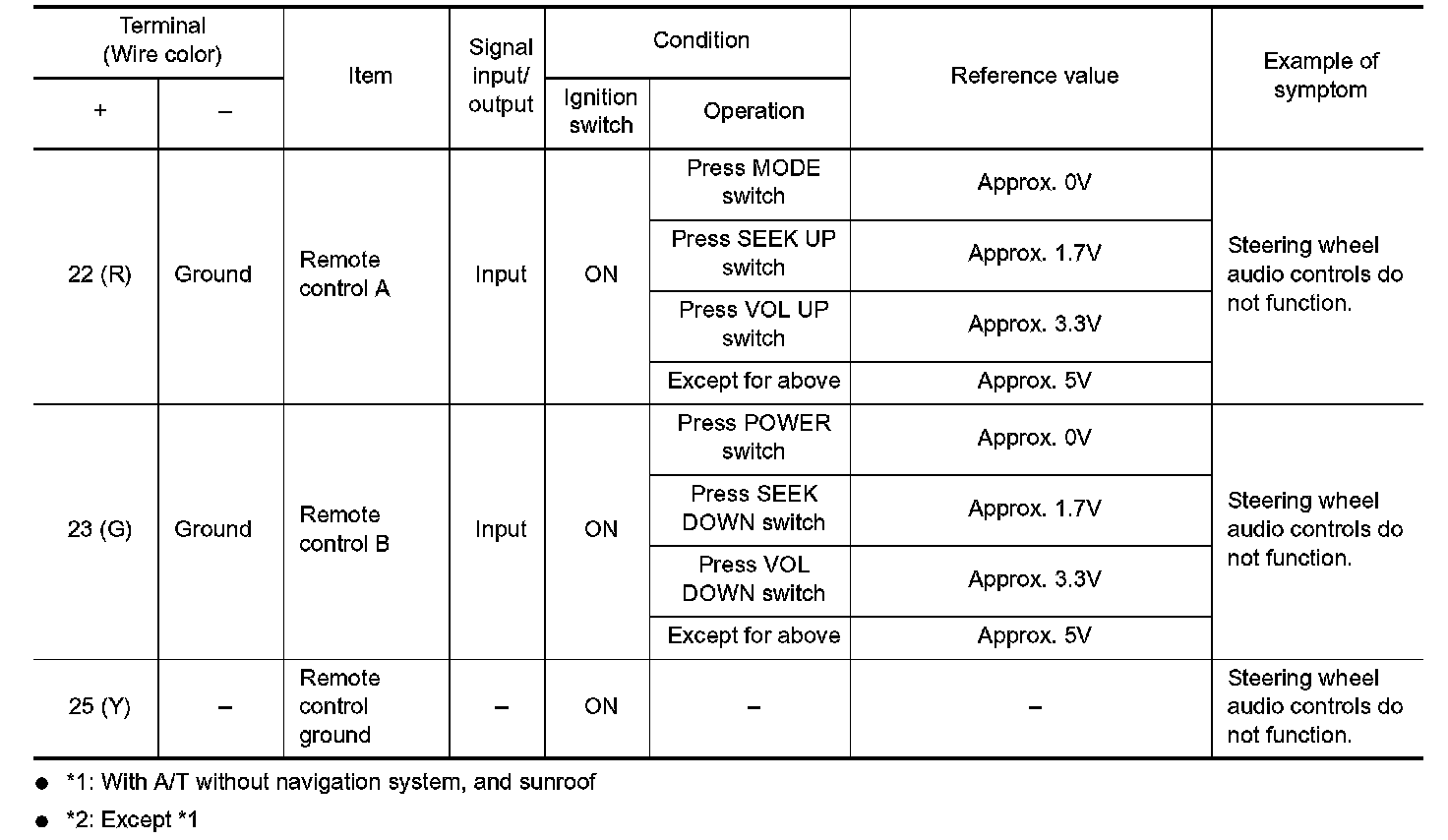

Terminals And Reference Value For Audio Unit For Base System Part 2:
