Trunk / Liftgate Striker: Service and Repair

Removal and Installation of Trunk Lid Striker

REMOVAL




1. Remove the trunk rear plate and trunk rear finisher. Refer to "Removal and Installation for Trunk Room Trim".

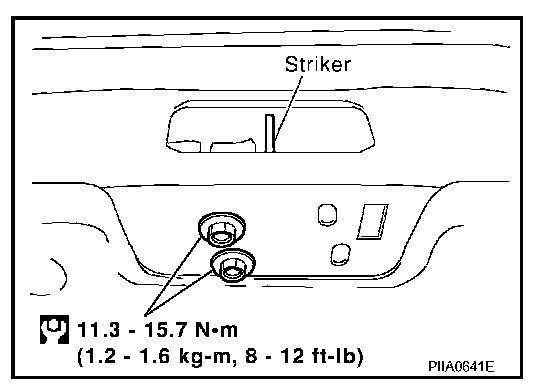

2. Remove the mounting bolts, and remove the striker from the trunk lock support.

INSTALLATION
1. Install in the reverse order of removal.
2. After installing, close the trunk lid height. Perform the lock and surface height adjustment. Refer to BL-83, "Fitting Adjustment". Adjustments
3. After installing, check the operation.
