Removal and Installation

Part 1:

Part 2:

Removal and Installation







WORK STEP
When removing instrument panel and pad, combination meter, audio and display, NAVI control unit and center console, take steps in the order shown by the numbers given.

REMOVAL
A. Selector lever Knob (A/T Models)
Remove selector lever knob. Refer to "Control Device Removal and Installation".
B. Shift Knob (M/T Models)
Remove shift knob. Refer to "SHIFT CONTROL".




C. Console Finisher (A/T Models)
1. Put selector lever in drive position.
2. Remove clips from rear of console finisher, then remove clips at front. Pull console finisher upward to disengage from console.

CAUTION: Guide pin inserted into A/T device guide can be easily broken. Be careful when removing it.

3. Disconnect harness connectors, and remove console finisher.
4. After removing, remove each parts from console finisher.

D. Console Boot (M/T Models)
1. Insert a thin flat-bladed screwdriver wrapped with tape from behind console boot, and remove metal clip on back. Then pull up and back to disengage from front metal clip.
2. Disconnect hazard switch harness connector, and remove console boot.




E. Cluster Lid C Side Finisher (RH/LH)
1. Remove screws.
2. Disconnect pawls, and remove cluster lid C side finisher.




F. Cluster Lid Finisher Upper
Pull to the backside, disconnect clips and pawls, and remove cluster lid finisher upper.




G. Cluster Lid Finisher Lower
Disconnect pawls and clips, and remove cluster lid finisher lower.




H. Instrument Finisher B
Disconnect clips, and remove instrument finisher B.




I. Cluster Lid C
1. Remove screws.
2. Disconnect harness connector of display unit and audio unit, and remove it.




J. Instrument Lower Driver Panel
1. Remove screws.
2. Pull back to your side, disconnect metal clips and remove instrument lower driver panel.
3. Disconnect in-vehicle sensor and each electrical parts connectors.
4. Remove grommet, and remove hood lock cable.

K. Steering Column Covers
1. Remove screws and pawls and remove steering column cover front lower.
2. Disconnect pawls, and remove upper and lower side of steering column covers.

L. Lighting and Turn Signal Switch
Remove lighting and turn signal switch. Refer to "LIGHTING AND TURN SIGNAL SWITCH".

M. Wiper and Washer Switch
Remove wiper and washer switch. Refer to "Removal and Installation of Front Wiper and Washer Switch"




N. Knee Protector Lower
Remove bolts and then remove knee protector.

O. Steering Lock Escutcheon
Pull back to your side, and remove steering lock escutcheon.




P. Cluster Lid A
After removing bolts, disconnect harness connectors of combination meter and mirror control switch, and remove cluster lid A.

Q. Front Kicking Plate (RH/LH)
Remove front kicking plate (RH/LH). Refer to "BODY SIDE TRIM"

R. Dash Side Finisher (RH/LH)
Remove dash side finisher (RH/LH). Refer to "BODY SIDE TRIM"




S. Instrument Lower Cover
Pull downward, disconnect metal clips, and remove instrument lower cover.

T. Glove Box Assembly
1. Remove screws with power tool.




2. Pull back to your side, and disconnect clips, and remove glove box assembly.




U. Instrument Side Panel (RH/LH)
1. Remove screws.
2. Pull to the side, disconnect metal clips and harness connector, and remove instrument side panel (RH/LH).




V. Center Box Assembly
1. Remove screws.
2. Hold left side of center box assembly, pull to outside of vehicle and disconnect metal clips. Remove center box assembly.

W. NAVI Control Unit
Remove screws, and disconnect harness connector, and remove NAVI control unit. Refer to "Removal and Installation of NAVI Control Unit".

X. Passenger Air Bag Module
Remove bolts and nuts, and remove passenger air bag module. Refer to "FRONT PASSENGER AIR BAG MODULE".

Y. Center Console
Remove screws and remove center console.

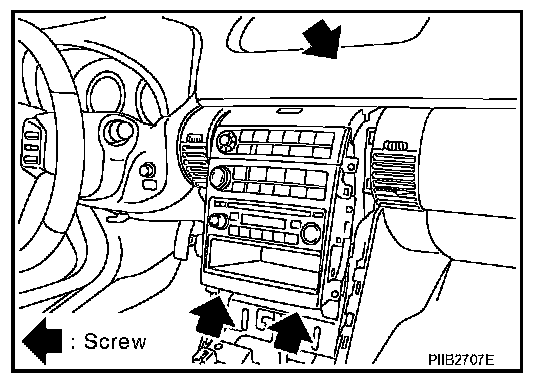

Z. Display unit and Amplifier Assembly
Remove screws, and disconnect harness connector, and remove audio display and amplifier assembly. Refer to "Removal and Installation of Display and A/C Auto Amp.".

Aa. Front Defroster Grille (RH/LH)
Disconnect pawls with screwdriver wrapped in cloth and remove defroster grille. Refer to "DUCTS AND GRILLES".

Ab. Side Ventilator Grille (LH)
Pull back to your side, disconnect metal clips and remove side ventilator grille. Refer to "DUCTS AND GRILLES".

Ac. Center Ventilator Grille (LH)
Pull back to your side, disconnect metal clips and remove center ventilator grille. Refer to "DUCTS AND GRILLES".

Ad. Front Pillar Garnish (RH/LH)
Pull to inside of vehicle, disconnect metal clips and remove front pillar garnish. Refer to "BODY SIDE TRIM".

Ae. Instrument Panel and Pad
1. Lower steering column.
2. Remove bolts and screws, and remove instrument panel and pad from passenger door opening portion.

INSTALLATION
Install in the reverse order of removal.
