Glass Lid

GLASS LID

Removal




1. Remove the inner blind.
2. Tilt up glass lid.

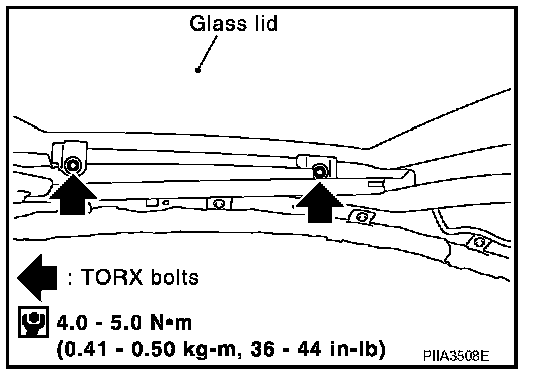

3. Remove TORX bolts (T25) and then detach glass lid.

Installation
1. Tighten bolts diagonally on the glass lid.
2. After installation, carry out fitting adjustment.
