Home >> Infiniti >> 2005 >> G35 Coupe V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> EC Diagrams (Engine Control System) >> EC-ECT1

EC-ECT1

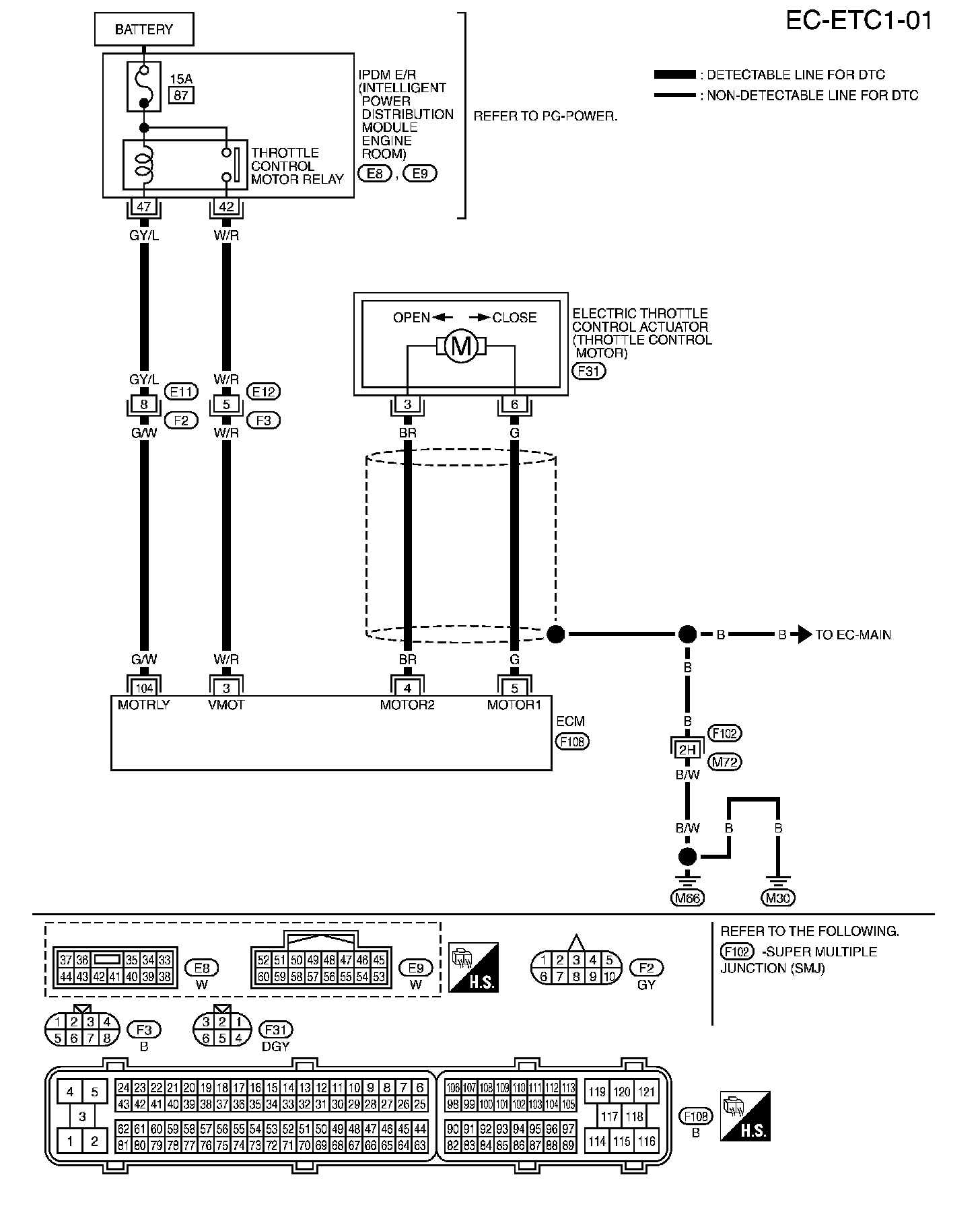

EC-ETC1-01:
