Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2005
>>
G35 Coupe V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Map Lamp Control Does Not Operate
Map Lamp Control Does Not Operate

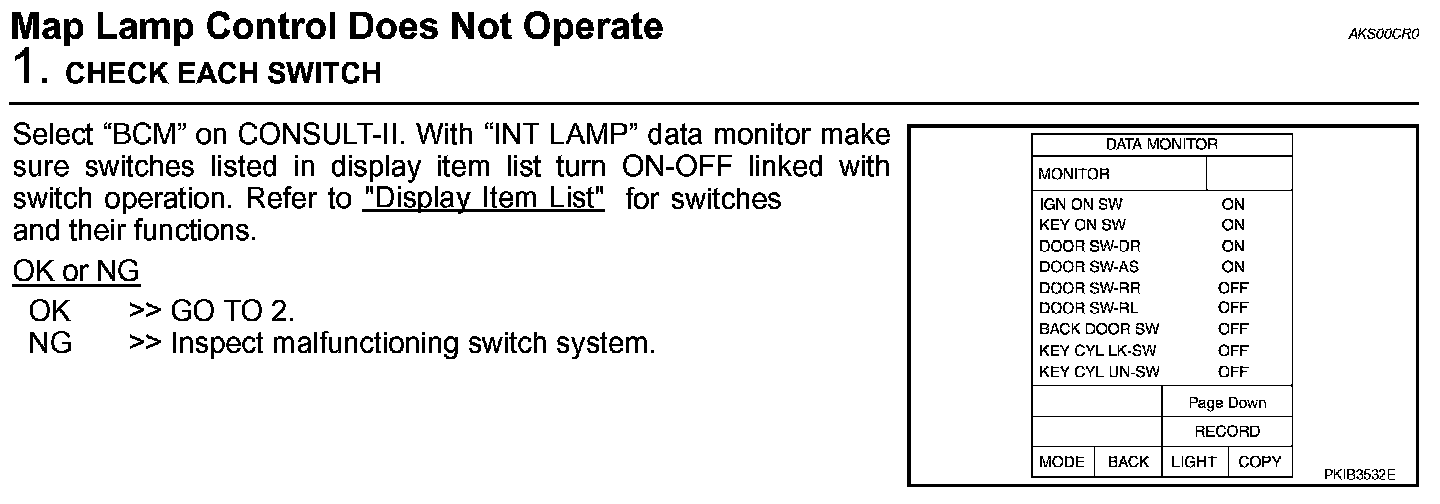

Map Lamp Contorl Does Not Operate (Step 1):
Map Lamp Control Does Not Operate (Steps 2 - 5):

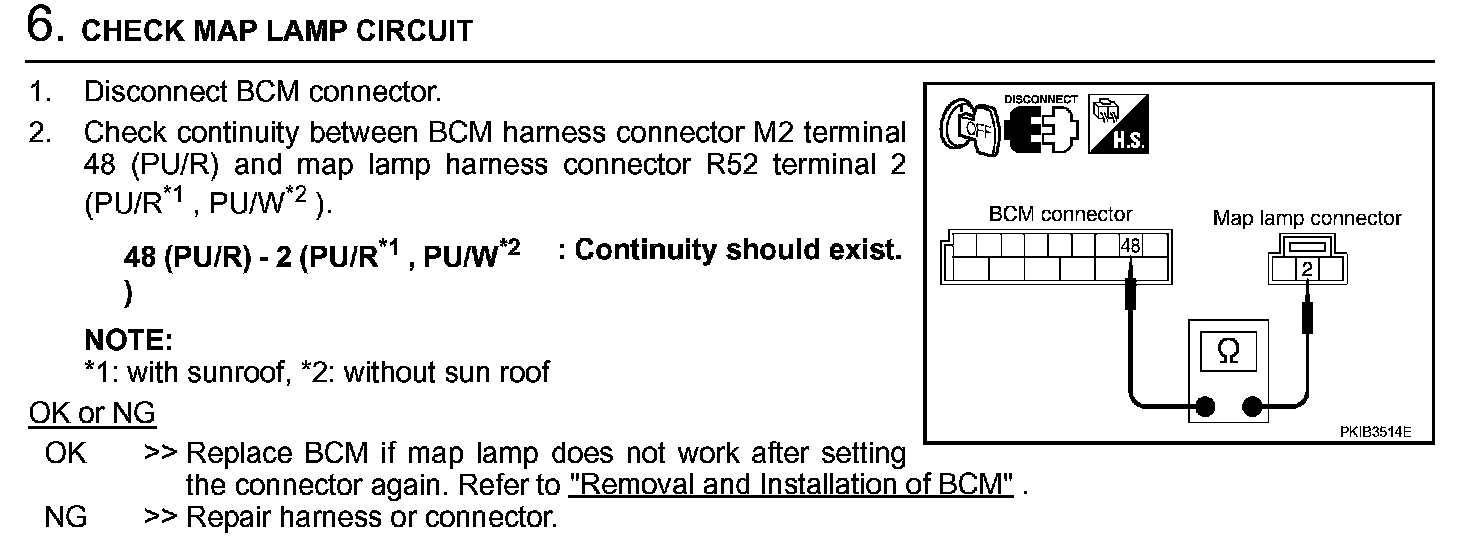

Map Lamp Contorl Does Not Operate (Step 6):
