Map Light: Service and Repair

MAP LAMP




Removal and Installation

REMOVAL

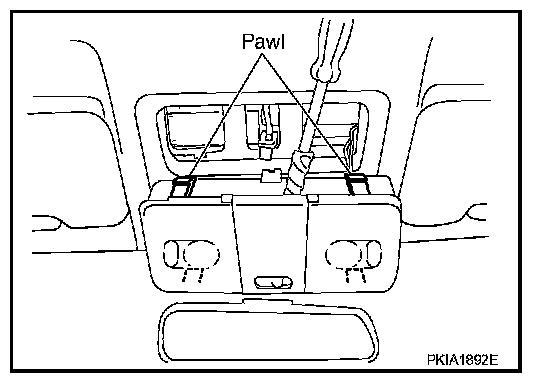

1. Insert a clip driver or a suitable tool and disengage the pawl fittings of the map lamp.
2. Disconnect connector and remove map lamp.

INSTALLATION
Installation is the reverse order of removal.
