Trouble Code Diagnostic Charts

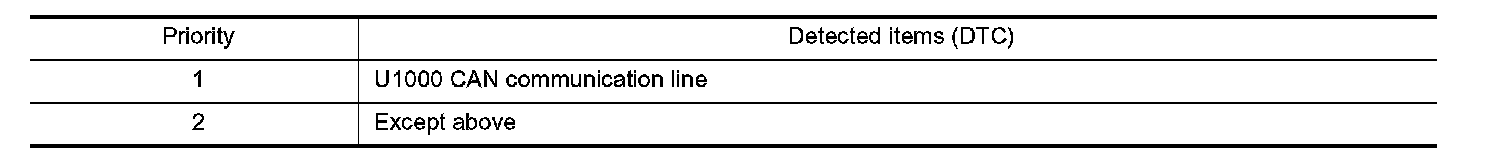

DTC Inspection Priority Chart





If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.

NOTE: If DTC "U1000" is displayed with other DTCs, first perform the trouble diagnosis for "DTC U1000 CAN COMMUNICATION LINE". Refer to AT-112. Transmission Control Systems
