Electrical Diagrams

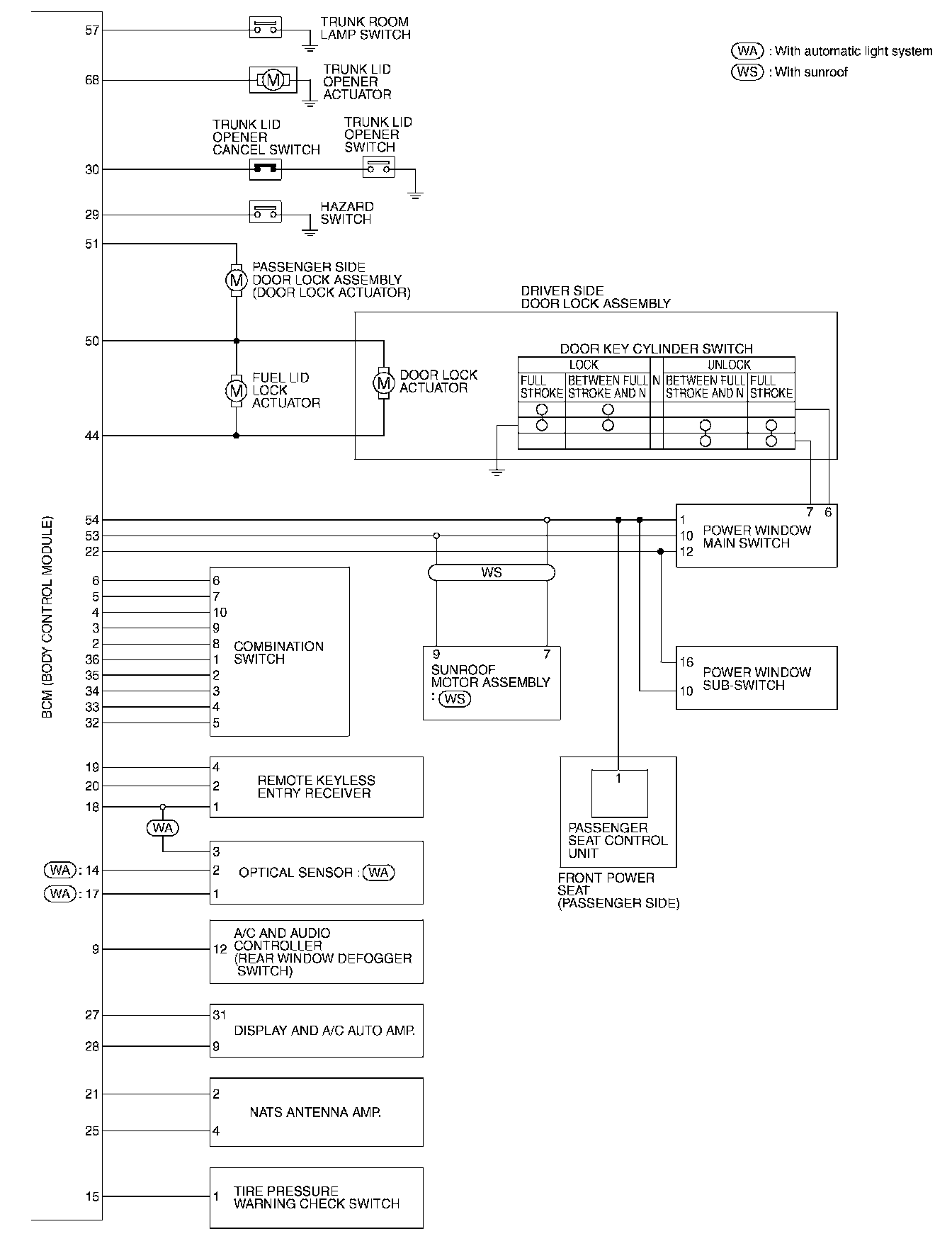

BCM (BODY CONTROL MODULE) Schematic Part 1 Of 2:

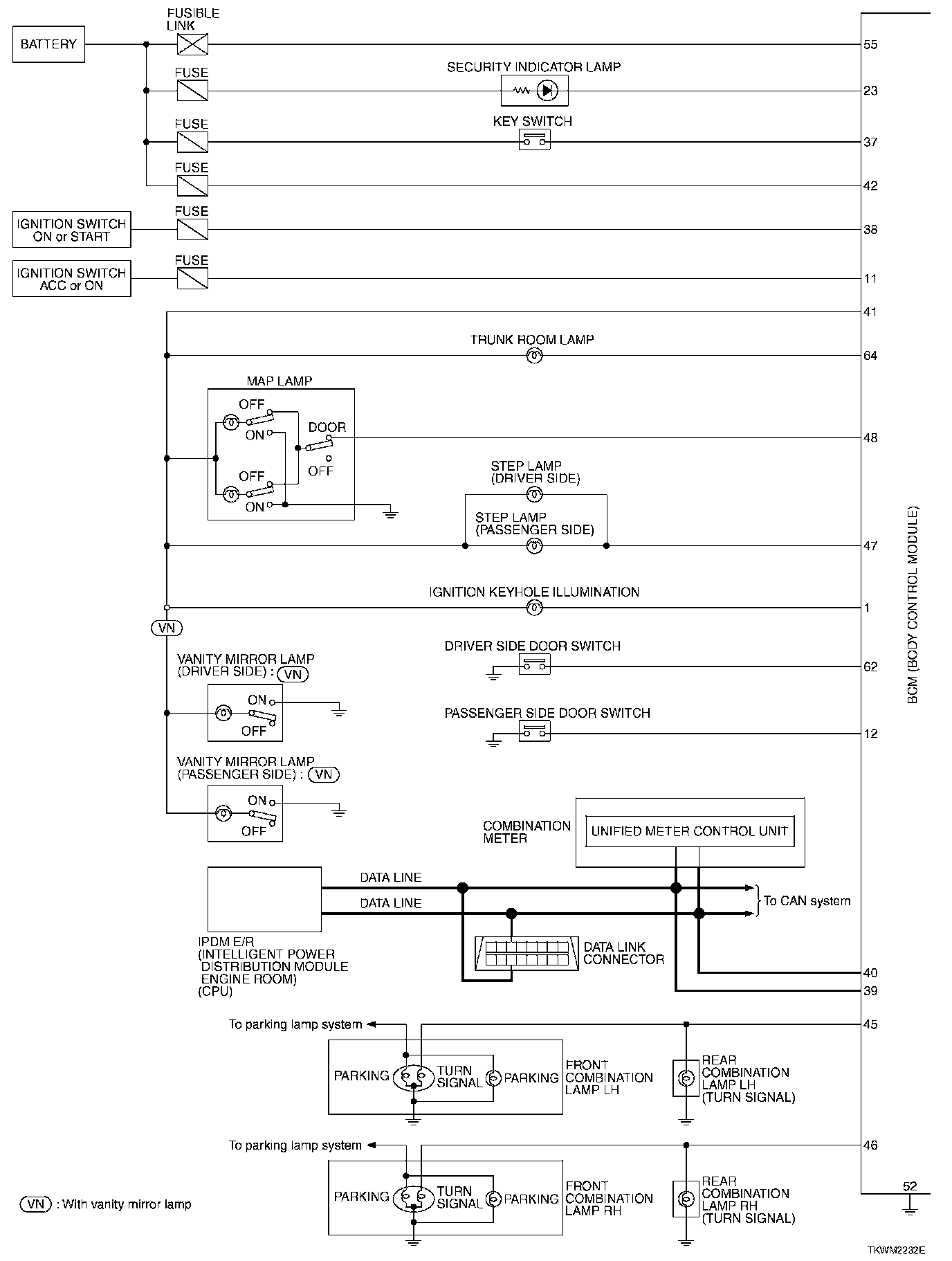

BCM (BODY CONTROL MODULE) Schematic Part 2 Of 2:
