Power Window Sub-Switch Power Supply and Ground Circuit Check

Power Window Sub-Switch Power Supply And Ground Circuit Check (Steps 1 - 2):

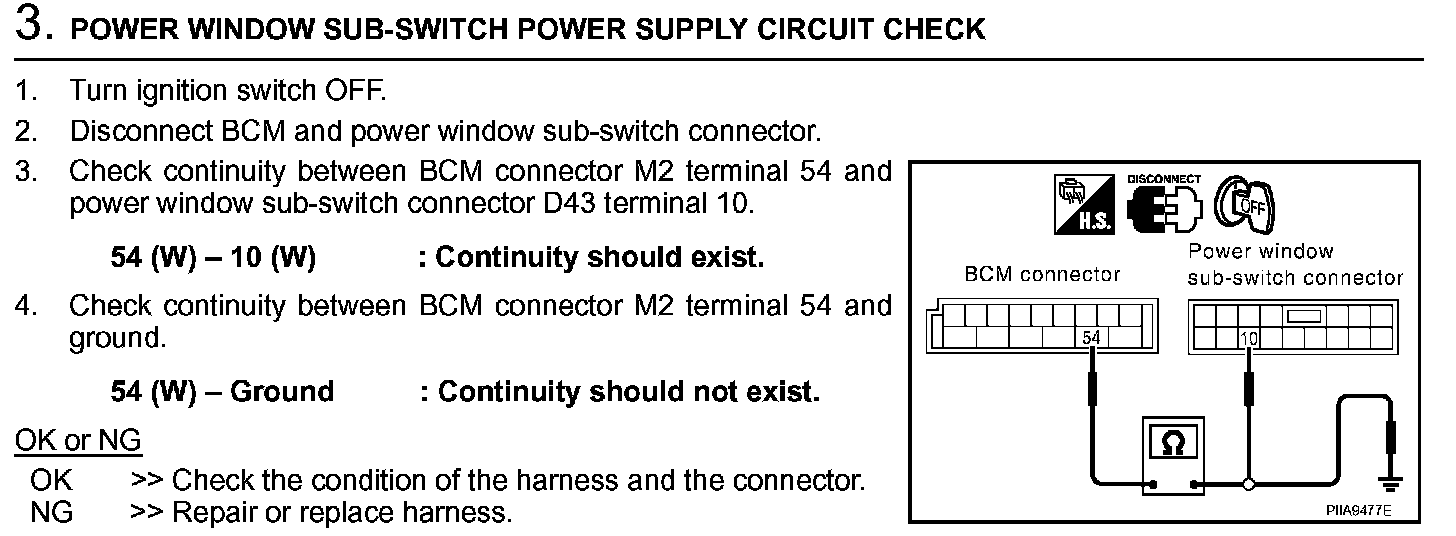

Power Window Sub-Switch Power Supply And Ground Circuit Check (Step 3):
