Self-Diagnosis Results

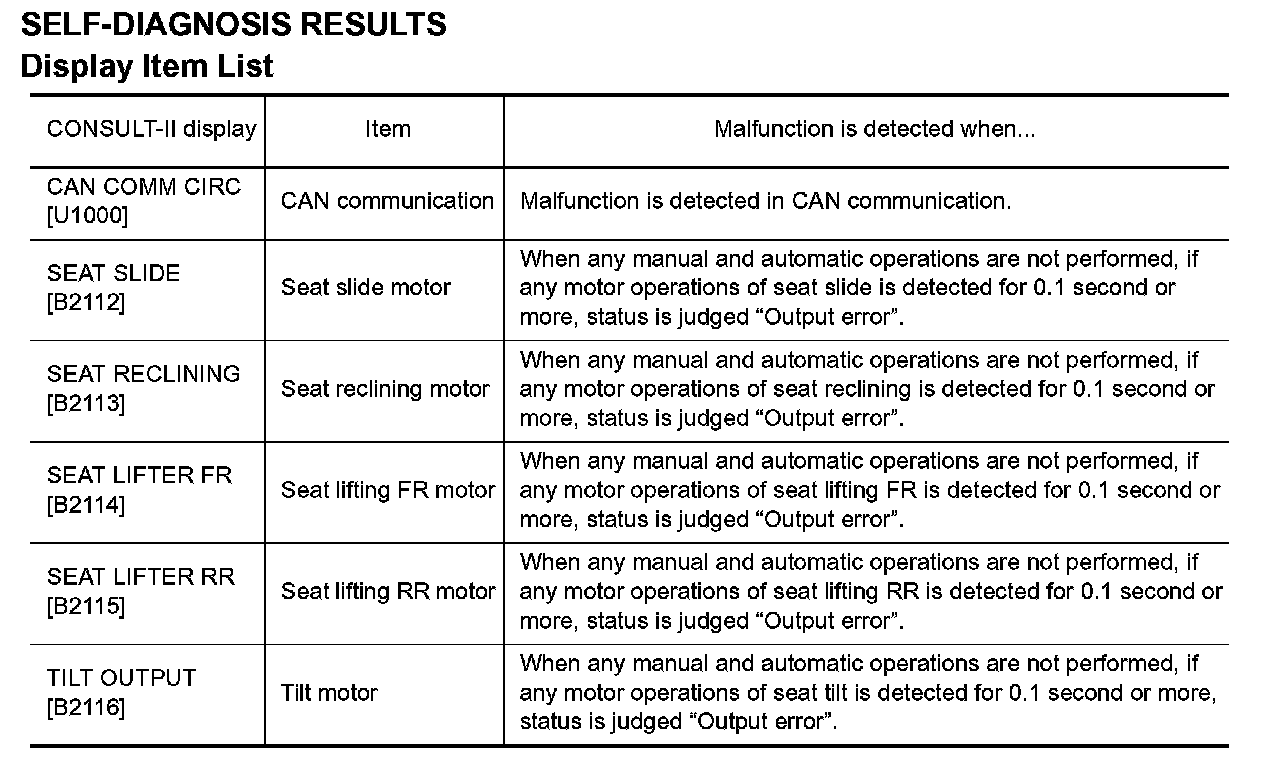

SELF-DIAGNOSIS RESULTS

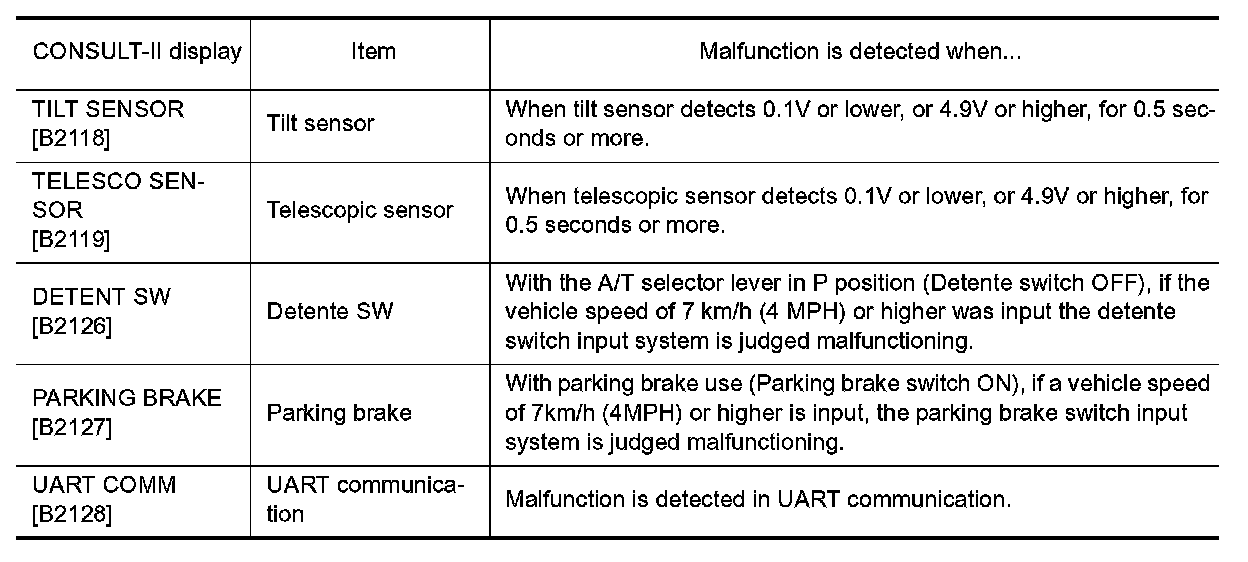

Display Item List

NOTE:
- The displays of CAN communication and P range switch display error detecting condition from memory erase to the present on "TIME".
- If error is detected in the past and present error is detected, "CRNT" is displayed.
- If error is detected in the past and present error is not detected, "PAST" is displayed.
- If error has never been detected, nothing is displayed on "TIME".

- Any items other than CAN communication and P range switch count error detection frequency occurred after erase history to "1-127".
- If error was detected in the past, error detection frequency from memory erase to the present is displayed on "TIME".
- If error has never been detected, nothing is displayed on "TIME".
- Can clear the detected memory.
Normal: Clear memory in normal condition, history is erased and nothing is displayed on "TIME".
Error: Clear memory in error condition, error is detected again and "1" is displayed on "TIME".
