Symptom Matrix Chart

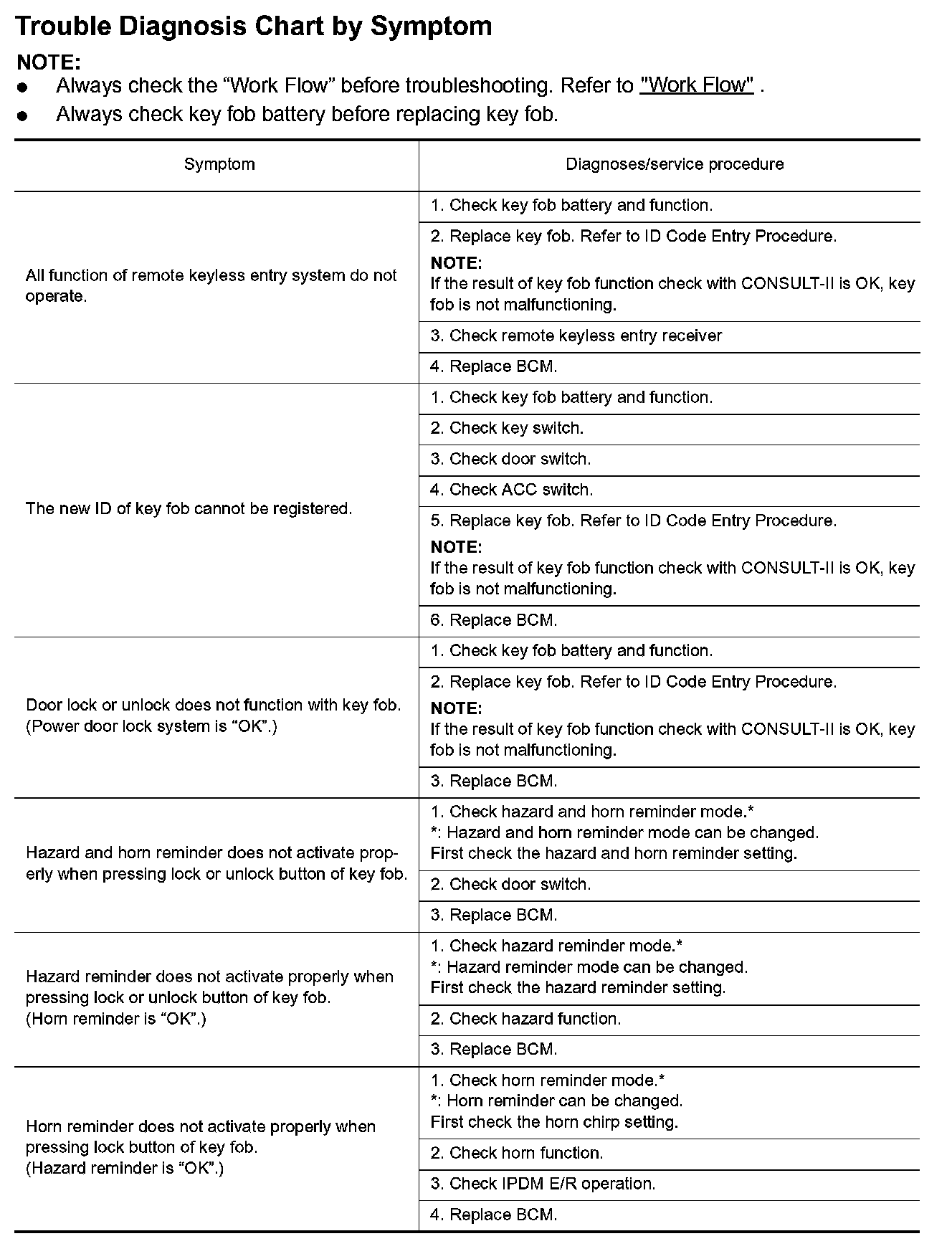

Trouble Diagnosis Chart By Symptom Part 1:

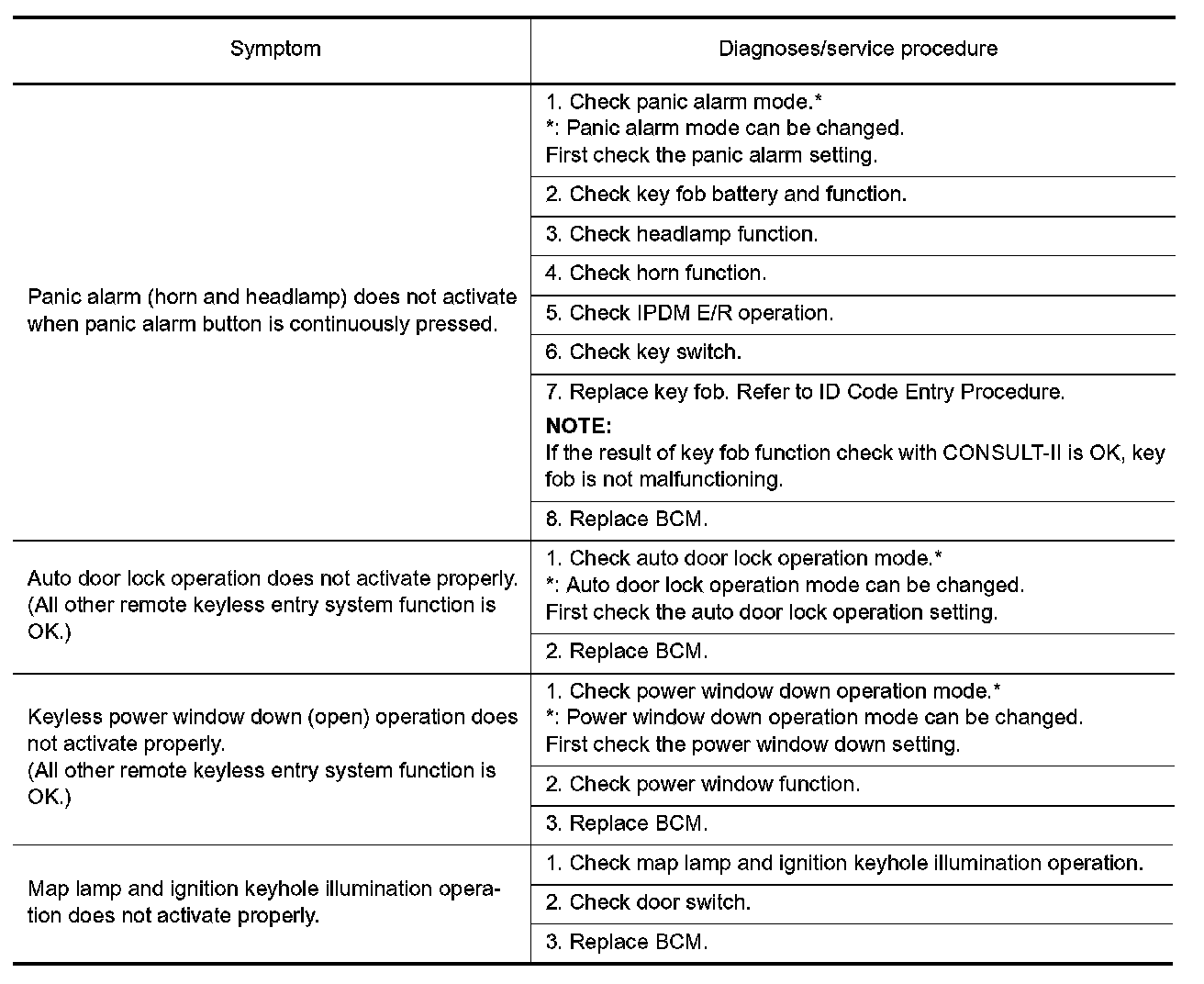

Trouble Diagnosis Chart By Symptom Part 2:
