Exhaust Manifold

Exhaust Manifold
^ If stud bolts were removed, install them and tighten to the specified torque.
Tightening Torque 14.7 Nm (1.5 kg-m, 11 ft. lbs.)

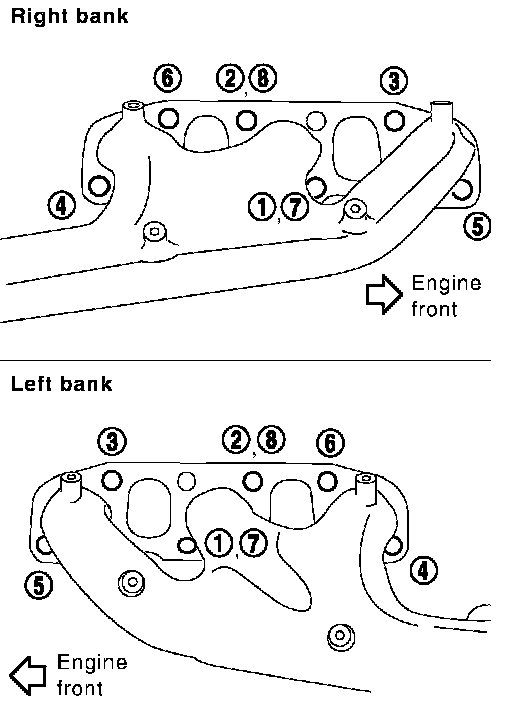

^ Install exhaust manifold in numerical order as shown in the figure.

NOTE: Tighten nuts No. 1 and No. 2 in two steps. The numerical order No. 7 and No. 8 shows second step.
