Step Lamp

Removal and Installation

REMOVAL




1. Remove clips which are lower part of front door finisher and lift finisher up.
2. Disconnect step lamp connector.

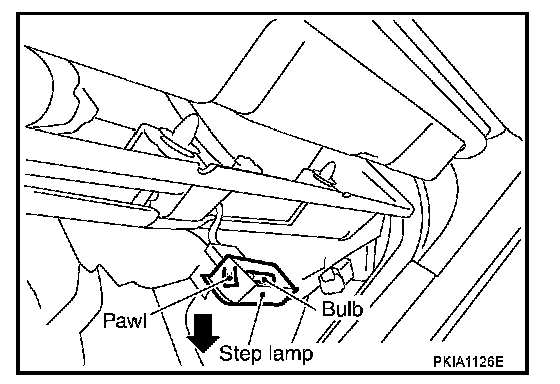

3. Press pawl on reverse side and remove the step lamp.

INSTALLATION
Installation is the reverse order of removal.
