Transmitter Wake Up Operation

Transmitter Wake Up Operation
WITH ACTIVATION TOOL

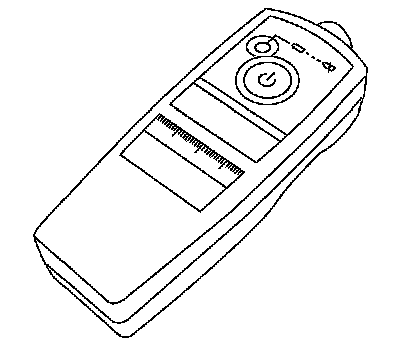

1. With the activation tool (J-45295) pushed against the front left transmitter, press and hold the button for 5 seconds.
^ When ignition switch ON, as the low tire pressure warning lamp blinks per the follow diagram, the respective transmitter then must be woken up.
2. Register the ID of wheel that warning lamp flashes. When wake up of registered wheel has been completed, turn signal lamp flashes two times.
3. After completing wake up all transmitters, make sure low tire pressure warning lamp goes out.
