Data Monitor Mode

DATA MONITOR MODE
Operation Procedure
1. Perform CONSULT-II SETTING PROCEDURE. Refer to CONSULT-II SETTING PROCEDURE. CONSULT-II Setting Procedure
2. Touch DATA MONITOR.
3. Select from SELECT MONITOR ITEM, screen of data monitor mode is displayed.

NOTE: When malfunction is detected, CONSULT-II performs REAL-TIME DIAGNOSIS. Also, any malfunction detected while in this mode will be displayed at real time.

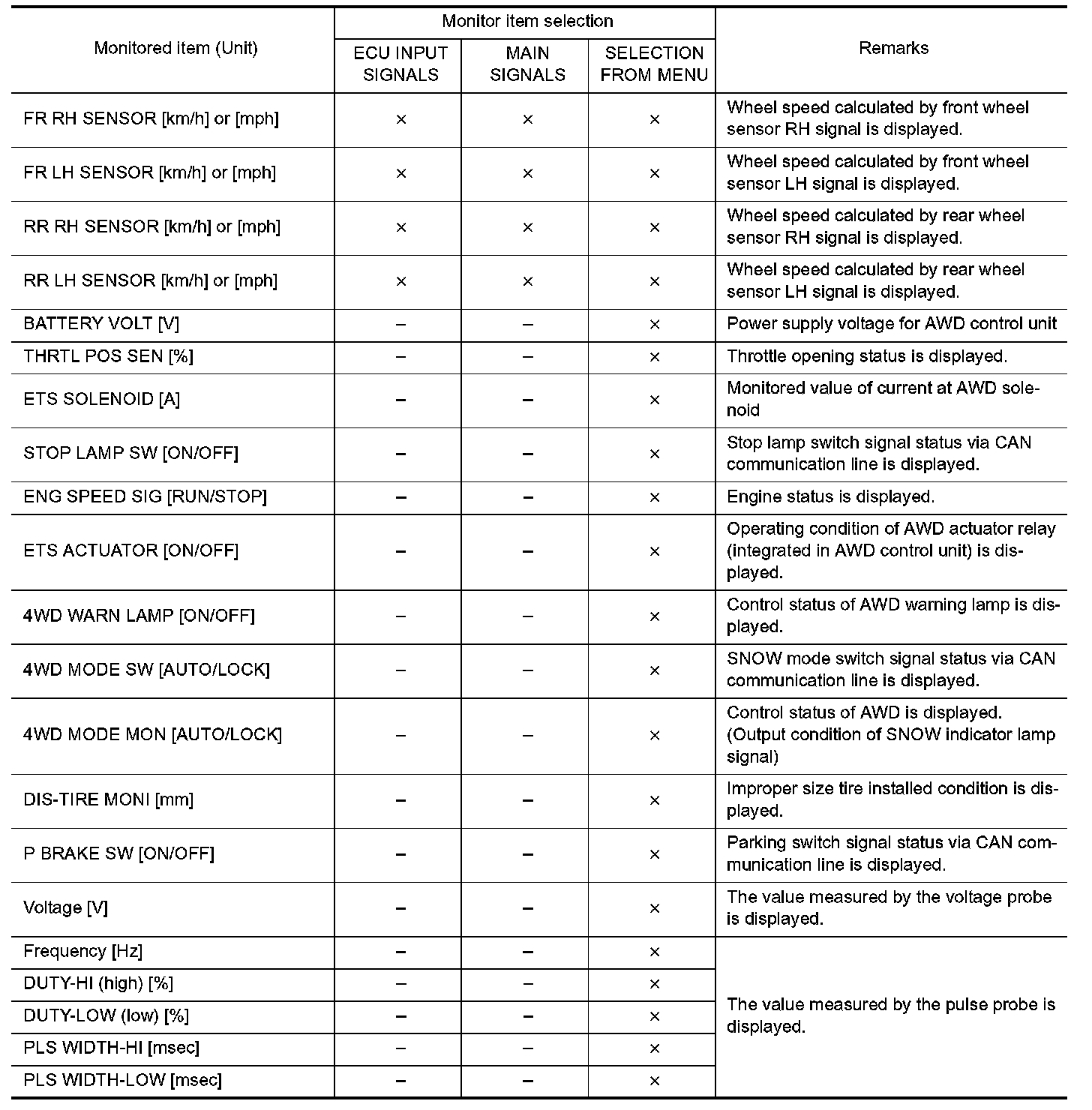

Display Item List
